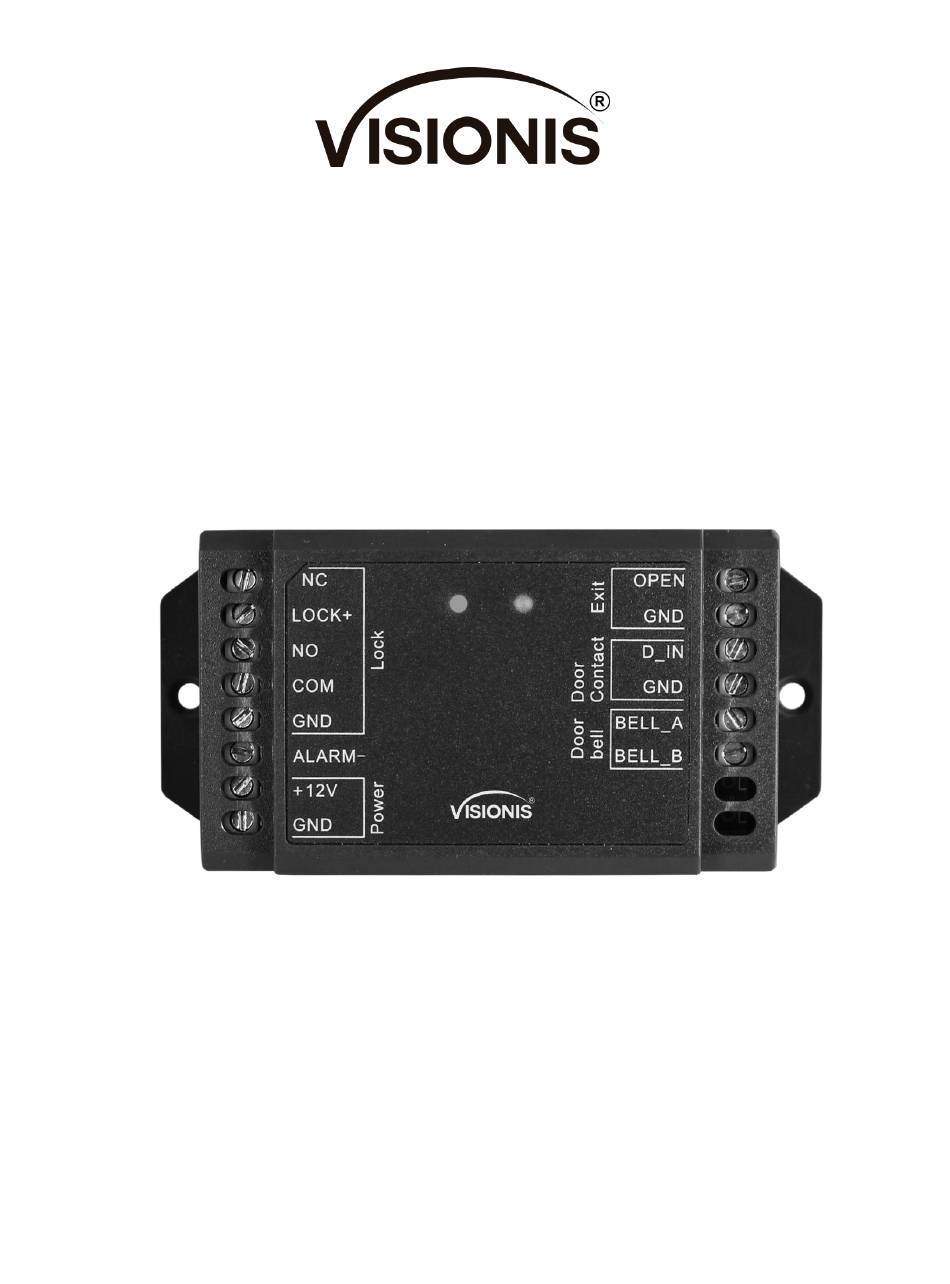

- Page 1 Access Control RF Wireless 433MHz Indoor Receiver VIS-8011 User Manual www.visionistech.com...
- Page 2 Specifications Operating Voltage 12V DC ±20% Mini Controller Current ≤20uA Idle Current ≤50mA Working Current Communication Frequency 433MHz Communication Distance 50m Maximum (165 feet) Relay Contact Load 2Amp Maximum Environment Indoor Operating Temperature -20°C~60°C (-4°F~140°F) Operating Humidity 0%~86%RH Physical ABS Shell Dimensions L85 x W50 x D25(mm) - L3.35 x W1.96 x D0.98(in.) Unit Weight...
- Page 3 Wiring (Mini Controller) Function Notes Negative Pole of DC (12V) Power Input +12V Positive Pole of DC (12V) Power Input ALARM- Negative Contact for Alarm Common Connection for Relay Output Normally Open for Relay Output LOCK+ Positive Pole of Lock Power Input Normally Close for Relay Output OPEN Contact to One Wire of Exit Button...
- Page 4 Attention: Install a 1N4004 or equivalent diode is needed when use a common power supply, or the reader might be damaged. (1N4004 is included in the packing) Pair Wireless Keypad / Exit Button and Mini Controller 1. They are already paired when out of the factory, if no problem, the users do not need to do this operation in use. 2.
