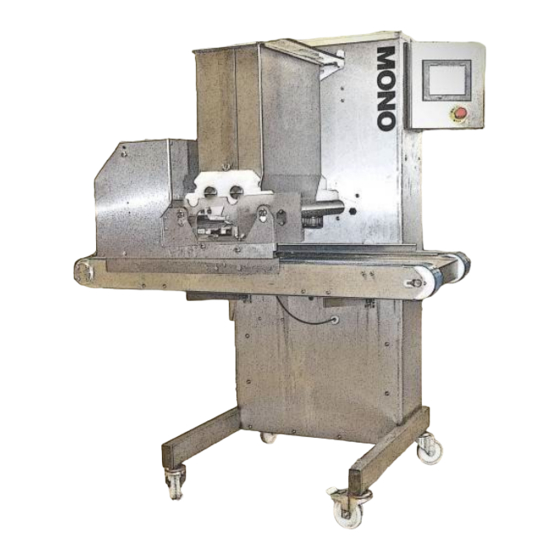

OMEGA PLUS
INCLUDING WIRECUT VERSION
IMPORTANT INFORMATION
and
INSTALLATION INSTRUCTIONS
The use of templates and/or accessories not produced or supplied by
MONO Equipment will invalidate the machine's warranty
MONO EQUIPMENT
Tel. +44(0)1792 561234
Queensway
email:spares@monoequip.com
Swansea West Industrial Estate
Spares Tel.+44(0)1792 564039
Swansea. SA5 4EB UK
COMPLETE OPERATION AND MAINTENANCE INSTRUCTIONS
ARE AVAILABLE AT www.monoequip.com
FILE 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMEGA PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mono OMEGA PLUS

Summary of Contents for Mono OMEGA PLUS

  • Page 1 MonoEquip.com OMEGA PLUS INCLUDING WIRECUT VERSION IMPORTANT INFORMATION INSTALLATION INSTRUCTIONS The use of templates and/or accessories not produced or supplied by MONO Equipment will invalidate the machine’s warranty MONO EQUIPMENT Tel. +44(0)1792 561234 Queensway email:spares@monoequip.com Swansea West Industrial Estate Spares Tel.+44(0)1792 564039 Swansea.
