OPERATING AND MAINTENANCE MANUAL
PARK n RIDE' PROVER
'
(WITH AND WITHOUT CONVEYOR)
1
FG036- park n ride prover RevA18 09-01-18

Advertisement

loading
Need help?

Need help?

Do you have a question about the PARK n RIDE and is the answer not in the manual?

Questions and answers

Related Manuals for Mono PARK n RIDE

Summary of Contents for Mono PARK n RIDE

  • Page 1 Enter Serial No. here.____________________________ In the event of an enquiry please quote this serial number. www.monoequip.com OPERATING AND MAINTENANCE MANUAL PARK n RIDE’ PROVER ‘ (WITH AND WITHOUT CONVEYOR) FG036- park n ride prover RevA18 09-01-18...
  • Page 2 1.0 INTRODUCTION 2.0 DIMENSIONS 3.0 SPECIFICATIONS 4.0 SAFETY 5.0 INSTALLATION 6.0 ISOLATION 7.0 CLEANING – DAILY WEEKLY 8.0 OPERATION MAIN PANEL WARNING LIGHTS 9.0 ELECTRICAL INFORMATION WITHOUT CONVEYOR WITH CONVEYOR 10.0 SPARES INFORMATION FG036- park n ride prover RevA18 09-01-18...
  • Page 3 FG036- park n ride prover RevA18 09-01-18...
  • Page 4 FG036- park n ride prover RevA18 09-01-18...

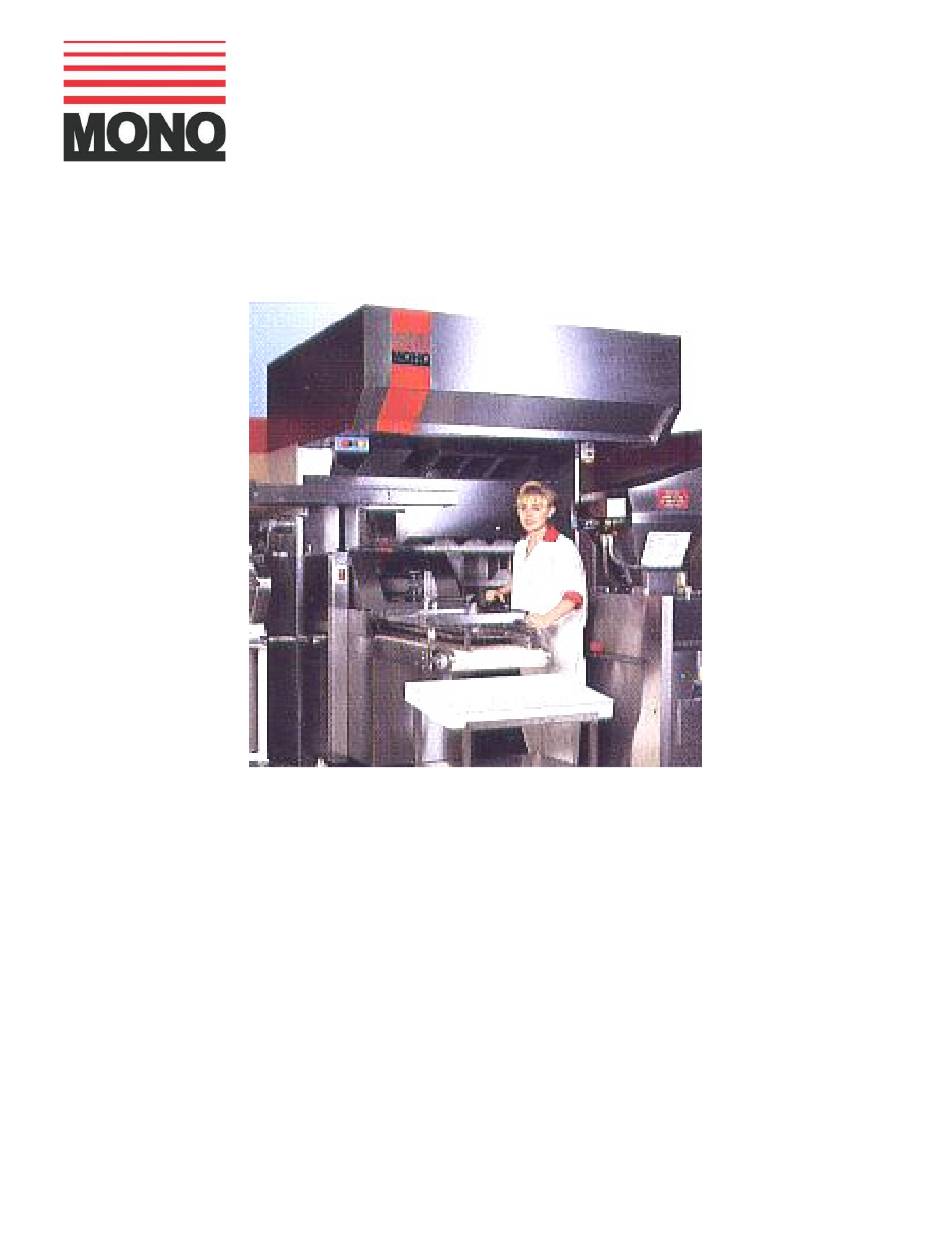

  • Page 5 1.0 INTRODUCTION The Mono Park n Ride Automatic bread plant is a fully integrated unit enabling rapid change of production lines, without moving any of the items of equipment which comprise the complete plant. This very compact, all brushed finish stainless steel system can produce up to 1000 loaves an hour.

  • Page 6: Specifications

    Loose clothing must not be worn. All maintenance should be carried out with the main isolator turned off. Daily safety checks should be carried out by the Bakery manager or similar trained person. FG036- park n ride prover RevA18 09-01-18...

  • Page 7: Installation

    The divider must be located correctly by the two locating brackets or dough will not enter the prover correctly and cause dough loss. 6.0 ISOLATION In an emergency, use the stop button (2) or turn off the main isolator (1). FG036- park n ride prover RevA18 09-01-18...
  • Page 8 Wipe over the control panel (7) with a damp cloth (do not allow moisture to enter the panel). Pay attention to the switch area removing any residue. (do not use a knife). KEEP WATER AWAY FROM THE MAIN CONTROL PANEL AND ELECTRICAL CONNECTION SOCKETS. FG036- park n ride prover RevA18 09-01-18...
  • Page 9 3. Hold carrier body and pull the blue carrier pocket gently upwards to unclip. (Note that there are 6 pockets to a carrier and each one can be replaced individually without removing the carrier from the prover) MOULDED CLIPS CARRIER FG036- park n ride prover RevA18 09-01-18...

  • Page 10: Operation

    NOTE: The divider must be located correctly by the two locating brackets or dough will not enter the prover correctly and cause dough loss. MAIN CONTROL PANEL CONTROL BUTTONS WARNING LIGHTS FG036- park n ride prover RevA18 09-01-18...

  • Page 11: Main Panel

    REMOTE CONTROL BOX This is situated under the overhang and gives the operator the main control buttons in an alternative place to the main control panel. REMOTE CONTROLS FG036- park n ride prover RevA18 09-01-18...

  • Page 12: Warning Lights

    CLEANING DOOR (10) Front lower cleaning door not positioned correctly. DRIVE BOX (11) Check that drive box drawer is closed. Prover will not work unless the drawer is replaced after cleaning. WARNING LIGHT FAULT POSITIONS FG036- park n ride prover RevA18 09-01-18...

  • Page 13: Electrical Information

    9.0 ELECTRICAL INFORMATION WITHOUT CONVEYOR FG036- park n ride prover RevA18 09-01-18...
  • Page 14 FG036- park n ride prover RevA18 09-01-18...
  • Page 15 FG036- park n ride prover RevA18 09-01-18...
  • Page 16 FG036- park n ride prover RevA18 09-01-18...
  • Page 17 FG036- park n ride prover RevA18 09-01-18...
  • Page 18 FG036- park n ride prover RevA18 09-01-18...
  • Page 19 FG036- park n ride prover RevA18 09-01-18...
  • Page 20 FG036- park n ride prover RevA18 09-01-18...
  • Page 21 FG036- park n ride prover RevA18 09-01-18...
  • Page 22 FG036- park n ride prover RevA18 09-01-18...
  • Page 23 FG036- park n ride prover RevA18 09-01-18...
  • Page 24 FG036- park n ride prover RevA18 09-01-18...
  • Page 25 ELECTRICAL INFORMATION (WITH CONVEYOR) FG036- park n ride prover RevA18 09-01-18...
  • Page 26 FG036- park n ride prover RevA18 09-01-18...
  • Page 27 FG036- park n ride prover RevA18 09-01-18...
  • Page 28 FG036- park n ride prover RevA18 09-01-18...
  • Page 29 FG036- park n ride prover RevA18 09-01-18...
  • Page 30 FG036- park n ride prover RevA18 09-01-18...
  • Page 31 FG036- park n ride prover RevA18 09-01-18...
  • Page 32 FG036- park n ride prover RevA18 09-01-18...
  • Page 33 FG036- park n ride prover RevA18 09-01-18...
  • Page 34 FG036- park n ride prover RevA18 09-01-18...
  • Page 35 FG036- park n ride prover RevA18 09-01-18...
  • Page 36 FG036- park n ride prover RevA18 09-01-18...
  • Page 37 FG036- park n ride prover RevA18 09-01-18...

  • Page 38: Spares Information

    SPARES and OVERSEAS SUPPORT MONO Queensway Swansea West Industrial Estate Swansea. SA5 4EB Spares Tel. +44(0)1792 564039 email:spares@monoequip.com Web site:www.monoequip.com MainTel. +44(0)1792 561234 Fax. 01792 561016 FG036- park n ride prover RevA18 09-01-18...
  • Page 39 FG036- park n ride prover RevA18 09-01-18...
  • Page 40 CARE SHOULD BE TAKEN WHEN THE MACHINE COMES TO THE END OF ITS WORKING LIFE. PARTS SHOULD DISPOSED IN THE APPROPRIATE PLACE, EITHER BY RECYCLING OR OTHER MEANS OF DISPOSAL THAT COMPLIES WITH LOCAL REGULATIONS. (IN UK, ENVIRONMENTAL PROTECTION ACT 1990 APPLIES) FG036- park n ride prover RevA18 09-01-18...
