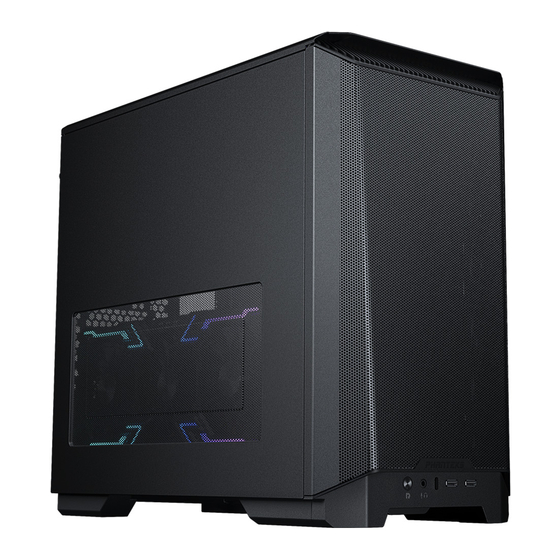

Phanteks Eclipse P200A Instruction Manual

ECLIPSE P200A
INSTRUCTION MANUAL

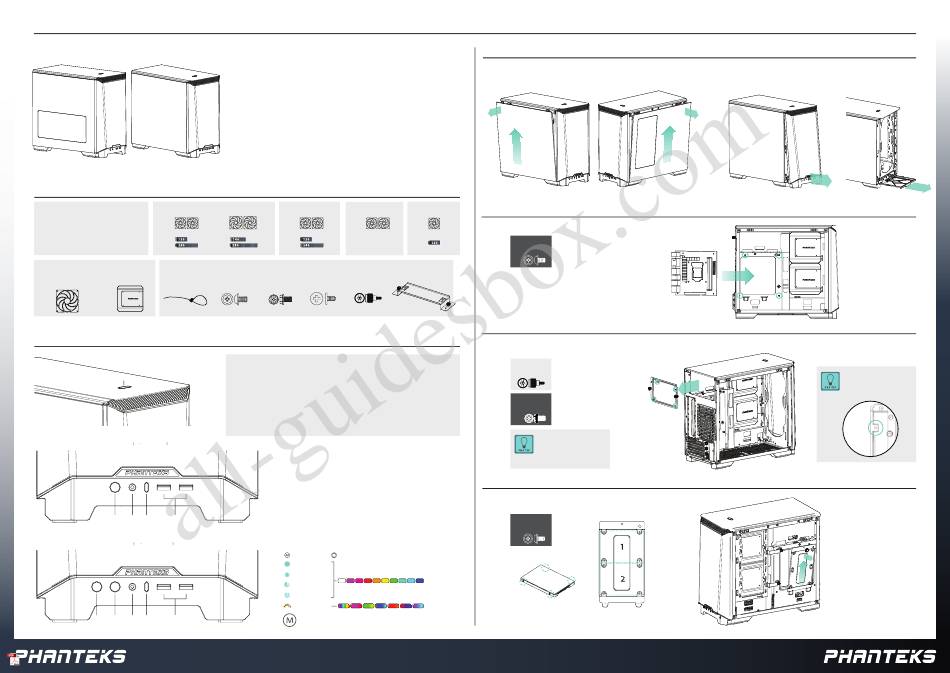

PRODUCT OVERVIEW
CLEARANCE FRONT
CPU Cooler Height 165 mm
120
GPU Clearance 355 mm
FAN
GPU Thickness 3-slot, 65mm
120
RAD
P200A INCLUDED ACCESSORIES:
P200A PRE-INSTALLED ACCESSORIES:
2x 120 mm Black or 2x SSD Cover 6x Zip Ties
2x 120 mm D-RGB
FRONT I/O FEATURES
1
ECLIPSE P200A Performance
PH EC200AC_BK
2 5 6* 7
ECLIPSE P200A DIGITAL-RGB
PH EC200ATG_DBK
3 4 5 6 7
V1.0
INTRODUCTION
Thank you for choosing Phanteks. Please take a moment to
carefully go through the manual. Phanteks will not take
responsibility for any damages incurred due to incorrect
installation or usage of this product.
This manual supports the following models:
PH-EC200AC_BK (2x 120 mm Black Fans)
PH-EC200ATG_DBK (2x 120 mm D-RGB Fans)
SIDE BOTTOM
140 120 120
FAN FAN FAN
140 120
RAD RAD
21x Motherboard 4x PSU Screw 3x Case Screw 1x Thumb Screw
+ SSD Screw
English Francais Deutch
1. Power Button 1. Bouton d'alimentation 1. Ein-/Aus Schalter
2. Reset Button 2. Bouton de réinitialisation 2. Reset-Knopf
(P200AC Only) (P200AC Only) (P200AC Only)
3. D-RGB Mode 3. D-RGB Mode 3. D-RGB Mode
(P200ATG-D Only) (P200ATG-D Only) (P200ATG-D Only)
4. D-RGB Color 4. D-RGB Color 4. D-RGB Color
(P200ATG-D only) (P200ATG-D Only) (P200ATG-D Only)
5. Headphone / Microphone 5. Casque / Microphone 5. Kopfhörer / Mikrofon
6. USB-C Gen 2 6. USB-C Gen 2 6. USB-C Gen 2
(P200ATG-D only) (P200ATG-D only) (P200ATG-D only)
7. USB 3.0 7. USB 3.0 7. USB 3.0
*Optional upgrade
DIGITAL-RGB CONTROLS (P200ATG_D MODEL)
MODES COLORS
SOLID
BREATHING
R ADAR
SPARKLE
R AINBOW
PRESS AND HOLD THE MODE BUT TON TO TURN OFF LEDS
PRESS AGAIN TO TURN ON
2 SEC
All manuals and user guides at all-guidesbox.com
STEP 1.
REMOVING CHASSIS PANELS
a.
P U L L T H E S I D E P A N E L , T H E N L I F T T H E P A N E L U P
T O R E M O V E I T
1
2
REAR STEP 2.
MOTHERBOARD INSTALLATION
120
I N S T A L L T H E I T X M O T H E R B O A R D W I T H 4 x M O T H E R B O A R D S C R E W S
FAN
120
INSTALL:
RAD
4x
1x Vertical GPU Mount
STEP 3.
POWER SUPPLY INSTALLATION
T H E P O W E R S U P P L Y I S I N S T A L L E D T H R O U G H T H E R E A R O F T H E C H A S S I S . L O O S E N T H U M B S C R E W S T O R E M O V E P S U B R A C K E T .
I N S T A L L P S U T O B R A C K E T W I T H 4 x P S U S C R E W S .
Espanol
L O O S E N :
1. Botón de encendido
2x
2. Botón de reinicio
(P200AC Only)
3. D-RGB Mode
(P200ATG-D Only)
4. D-RGB Color
INSTALL:
(P200ATG-D Only)
4x
5. Auricular / Micrófono
6. USB-C Gen 2
(P200ATG-D only)
7. USB 3.0
Plug in all cables you need for
your build into the power
supply first before installing it
for easier installation
STEP 4.
STORAGE INSTALLATION - Dedicated 2.5" SSD Bracket
I N S T A L L T H E S S D ( s ) W I T H 4 x S S D S C R E W S O N T H E D E D I C A T E D
S S D B R A C K E T A N D M O U N T I T B A C K I N T O T H E C H A S S I S .
INSTALL:
4x
INSTRUCTION MANUAL V1.0
b. c.
R E M O V E F R O N T P A N E L R E M O V E T H E B O T T O M
B Y P U L L I N G O N T H E D U S T F I L T E R F R O M
P A N E L F R O M B E L O W T H E F R O N T
1
2
1
The right-side panel can be
secured with a screw if cables
are pushing against it.
