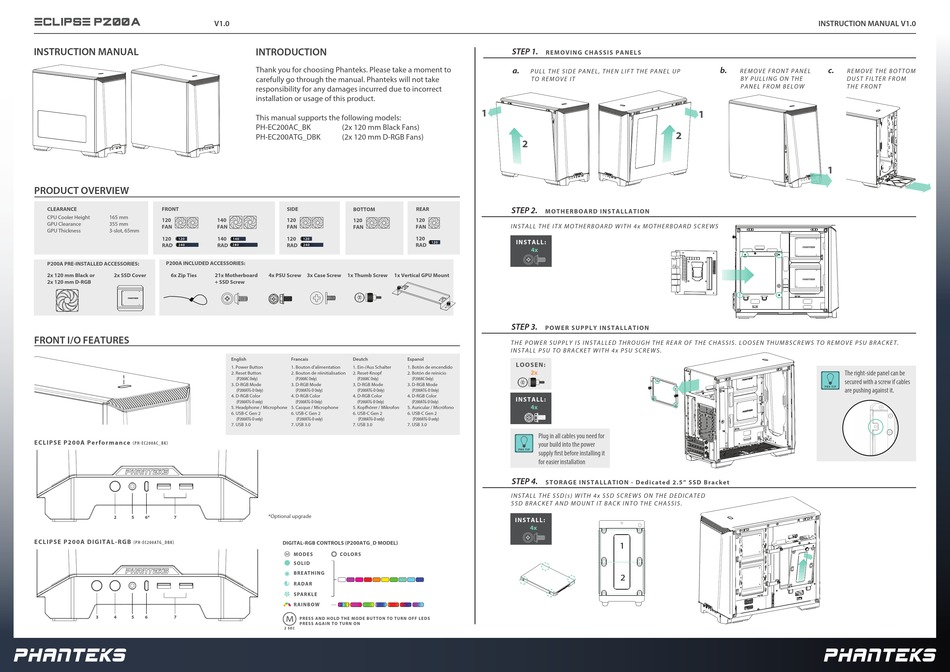

Phanteks ECLIPSE P200A Instruction Manual

ECLIPSE P200A
INSTRUCTION MANUAL
PRODUCT OVERVIEW
CLEARANCE FRONT
CPU Cooler Height 165 mm
120
GPU Clearance 355 mm
FAN
GPU Thickness 3-slot, 65mm
120
RAD
P200A INCLUDED ACCESSORIES:
P200A PRE-INSTALLED ACCESSORIES:
2x 120 mm Black or 2x SSD Cover 6x Zip Ties
2x 120 mm D-RGB
FRONT I/O FEATURES
1
ECLIPS E P200A Perform an ce
P H E C2 0 0 A C_ B K
2 5 6* 7
E CLIP SE P200A DIGI TAL- RGB
PH E C2 0 0 A T G _D BK
3 4 5 6 7
V1.0
INTRODUCTION
Thank you for choosing Phanteks. Please take a moment to
carefully go through the manual. Phanteks will not take
responsibility for any damages incurred due to incorrect
installation or usage of this product.
This manual supports the following models:
PH-EC200AC_BK (2x 120 mm Black Fans)
PH-EC200ATG_DBK (2x 120 mm D-RGB Fans)
SIDE BOTTOM
140 120 120
FAN FAN FAN
140 120
RAD RAD
21x Motherboard 4x PSU Screw 3x Case Screw 1x Thumb Screw
+ SSD Screw
English Francais Deutch
1. Power Button 1. Bouton d'alimentation 1. Ein-/Aus Schalter
2. Reset Button 2. Bouton de réinitialisation 2. Reset-Knopf
(P200AC Only) (P200AC Only) (P200AC Only)
3. D-RGB Mode 3. D-RGB Mode 3. D-RGB Mode
(P200ATG-D Only) (P200ATG-D Only) (P200ATG-D Only)
4. D-RGB Color 4. D-RGB Color 4. D-RGB Color
(P200ATG-D only) (P200ATG-D Only) (P200ATG-D Only)
5. Headphone / Microphone 5. Casque / Microphone 5. Kopfhörer / Mikrofon
6. USB-C Gen 2 6. USB-C Gen 2 6. USB-C Gen 2
(P200ATG-D only) (P200ATG-D only) (P200ATG-D only)
7. USB 3.0 7. USB 3.0 7. USB 3.0
*Optional upgrade
DIGITAL-RGB CONTROLS (P200ATG_D MODEL)
MODES COLOR S
SOLI D
BR E ATHI N G
R ADAR
SPAR KLE
R AI N B OW
P RESS AND HOLD THE M ODE B UT TON TO TURN OFF LEDS
PRESS AGAIN TO TURN ON
2 SEC
STEP 1.
REMOV I N G CHASSI S P AN EL S
a.
P U L L T H E S I D E P A N E L , T H E N L I F T T H E P A N E L U P
T O R E M O V E I T
1
2
STEP 2.
REAR
MOTHER BOARD IN STAL L ATI ON
120
I N S T A L L T H E I T X M O T H E R B O A R D W I T H 4 x M O T H E R B O A R D S C R E W S
FAN
120
I N STA LL :
RAD
4x
1x Vertical GPU Mount
STEP 3.
POWER SU PP L Y I N STAL L ATI ON
T H E P O W E R S U P P L Y I S I N S T A L L E D T H R O U G H T H E R E A R O F T H E C H A S S I S . L O O S E N T H U M B S C R E W S T O R E M O V E P S U B R A C K E T .
I N S T A L L P S U T O B R A C K E T W I T H 4 x P S U S C R E W S .
Espanol
L O O S E N :
1. Botón de encendido
2x
2. Botón de reinicio
(P200AC Only)
3. D-RGB Mode
(P200ATG-D Only)
4. D-RGB Color
I N STAL L:
(P200ATG-D Only)
4x
5. Auricular / Micrófono
6. USB-C Gen 2
(P200ATG-D only)
7. USB 3.0
Plug in all cables you need for
your build into the power
supply rst before installing it
for easier installation
STEP 4.
STORAG E I N STALL ATI ON - D edic at ed 2 .5 " SSD Bra cket
I N S T A L L T H E S S D ( s ) W I T H 4 x S S D S C R E W S O N T H E D E D I C A T E D
S S D B R A C K E T A N D M O U N T I T B A C K I N T O T H E C H A S S I S .
I N STAL L :
4x
INSTRUCTION MANUAL V1.0
b. c.
R E M O V E F R O N T P A N E L R E M O V E T H E B O T T O M
B Y P U L L I N G O N T H E D U S T F I L T E R F R O M
P A N E L F R O M B E L O W T H E F R O N T
1
2
1
The right-side panel can be
secured with a screw if cables
are pushing against it.
