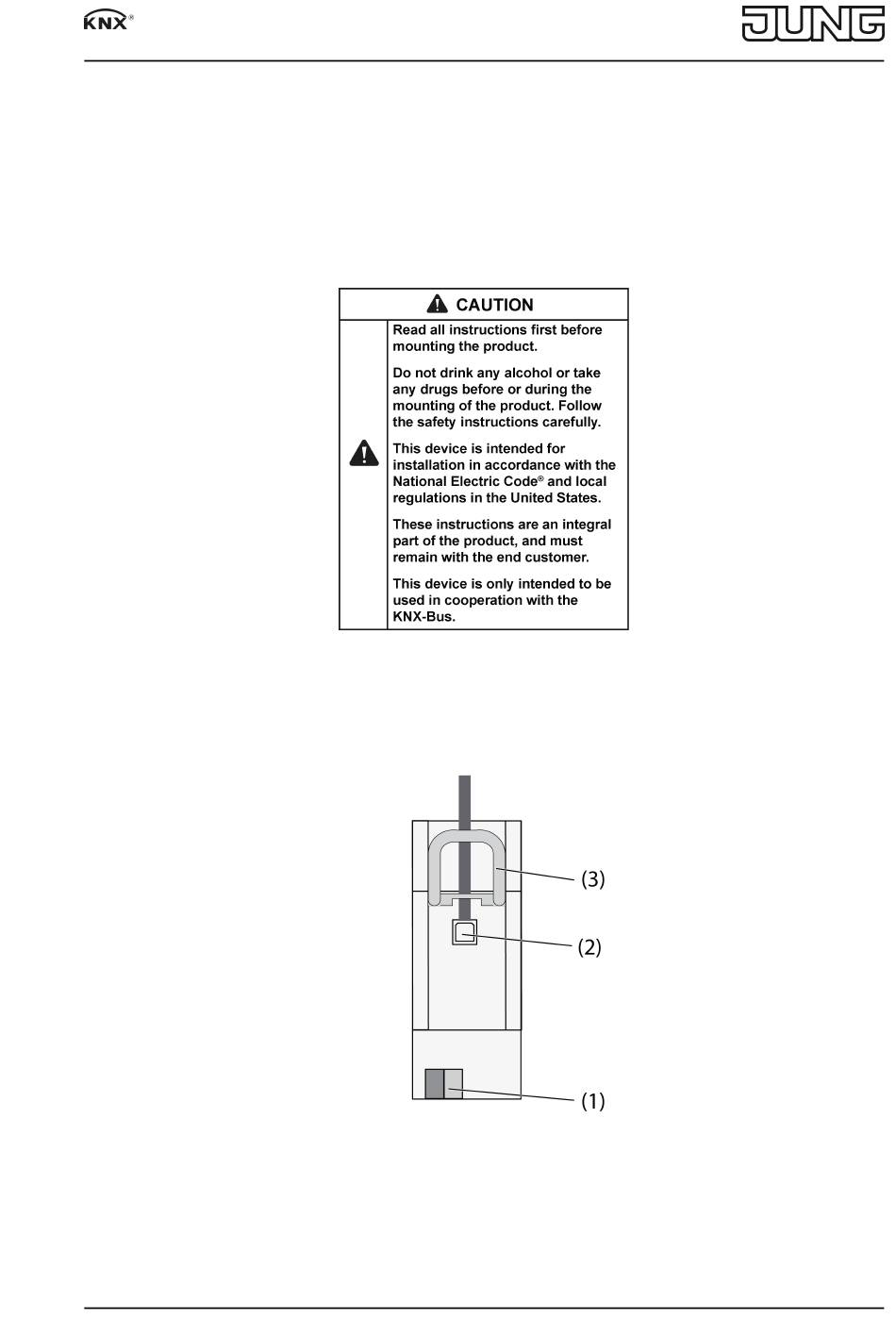

- Page 1 USB data interface USB data interface Art. No. : 2130USBREG-01 USB data interface Art. No. : 2130USB-01 Operating instructions 1 Safety instructions 2 Device components Figure 1 82549305 28.06.2017 J0082549305...

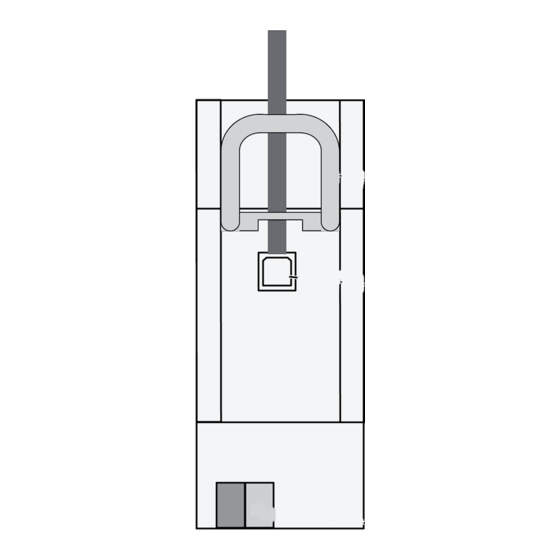

- Page 2 USB data interface Figure 2 (1) KNX connection (2) USB connection (3) Slide (4) Wall Box (5) Frame (6) Design cover 3 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
- Page 3 USB data interface 4 Information for electrically skilled persons 4.1 Mounting and electrical connection Mounting and connecting the REG device Mount device on DIN rail with the device connection terminals facing downwards. i Use only cables which are approved for KNX. Connect bus line with device connection terminal (1).
- Page 4 USB data interface i The slide fixes the USB cable in place and ensures that the maximum installation height in the distributor is maintained. Mounting and connecting UP device This device may only be installed in special electrical appliance boxes, flushmounted. Art.
- Page 5 350 Fifth Avenue, Suite 5220 New York, NY 10118 Phone: +1 800.311.6135 Email: sales@jungcontrols.com www.jungcontrols.com For the product warranty, please refer to the attached document. All rights reserved © ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY 82549305 28.06.2017 J0082549305...
