Summary of Contents for Jung 2131USBSREG
- Page 1 Product documentation USB data interface Art. No. 2131USBSREG USB data interface Art. No. 2131USBS ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Issue: 06.06.2018 Telefax: +49 2355 806-204 TD 64xx2x20 kundencenter@jung.de www.jung.de...
-
Page 2: Table Of Contents
Software specification ....................Software ........................4.2.1 Scope of functions ....................4.2.2 Notes on software ....................4.2.2.1 ETS project design and commissioning ............4.2.2.2 Firmware upgrade ..................Appendix ..........................Index ..........................Art. No. 2131USBSREG Page 2 of 17 Art. No. 2131USBS... -
Page 3: Product Definition

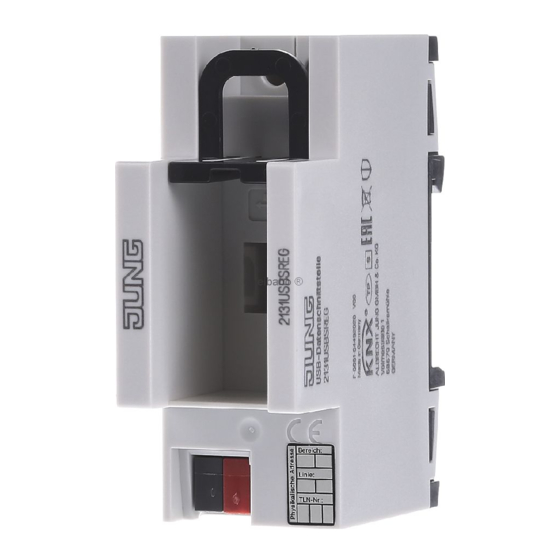

Interface Design: RMD, FM Art. No. 2131USBSREG / 2131USBS 1.2 Function The device serves as an interface to KNX installations. This allows communication between KNX devices and PC tools. The communication between PC and KNX system is established via KNX bus line. The connection to the computer (USB 2.0 type A) takes place via a USB port. -
Page 4: Accessories
Product definition 1.3 Accessories Centre plate Art. No. ..569.. Art. No. 2131USBSREG Page 4 of 17 Art. No. 2131USBS... -
Page 5: Mounting, Electrical Connection And Operation
Serious injuries, fire or property damage possible. Please read and follow manual fully. These instructions are an integral part of the product, and must remain with the end customer. Art. No. 2131USBSREG Page 5 of 17 Art. No. 2131USBS... -
Page 6: Device Components
Figure 2: Device components (FM) (1) KNX connection (2) USB connection socket (type B) (3) Slide for locking the USB connecting cable and contact protection (only in the RMD design) Art. No. 2131USBSREG Page 6 of 17 Art. No. 2131USBS... -
Page 7: Fitting And Electrical Connection
Unlock the slide (1) by pulling the bow and pulling it out. Insert the USB plug (type B) into the connection socket of the USB data interface. Lead the USB connecting cable upwards through the housing opening. Insert slide (1). Art. No. 2131USBSREG Page 7 of 17 Art. No. 2131USBS... - Page 8 Insert the USB plug (type B) into the connection socket of the USB data interface. i The USB connection should be made with a certified USB connecting cable with a maximum cable length of 5 m. Art. No. 2131USBSREG Page 8 of 17 Art. No. 2131USBS...
-
Page 9: Commissioning
KNX system. Press the "Adress free?" button to make sure that the entered physical address is not used by another KNX device. Art. No. 2131USBSREG Page 9 of 17 Art. No. 2131USBS... - Page 10 Mounting, electrical connection and operation By leaving the field, the physical address is programmed to the USB data interface. The newly programmed physical address is displayed under "Current interface". Art. No. 2131USBSREG Page 10 of 17 Art. No. 2131USBS...
-
Page 11: Technical Data
DC 21 ... 32 V SELV KNX medium TP 256 Protection class Ambient temperature -5 ... +45 °C Storage/transport temperature -25 ... +70 °C Fitting width Art. No. 2131USBSREG 36 mm / 2 modules Art. No. 2131USBS — USB connection Type B USB-Version Cable length max. 5 m Art. -
Page 12: Software Description
No application program is required for this device! The physical address is assigned solely in the general interface settings of the commissioning software from version ETS4 or higher. Art. No. 2131USBSREG Page 12 of 17 Art. No. 2131USBS... -
Page 13: Software
The firmware of the device can be updated. Thus, the device can be adapted to future standards. Only standard Windows HID drivers that are installed or activated automatically when attaching the device to the PC are required for the device to function. Art. No. 2131USBSREG Page 13 of 17 Art. No. 2131USBS... -
Page 14: Notes On Software
The device can be added to an ETS project with the aid of the product database. This means that the KNX installation e.g. for documentation of the system, can be fully mapped in the ETS. Art. No. 2131USBSREG Page 14 of 17 Art. No. 2131USBS... -
Page 15: Firmware Upgrade
(e.g. version 1.2) is already embedded. In this case, the scope of functions of the device is reduced by the extensions of version 1.2 of the application program. This downgrade of the firmware also takes some time. Art. No. 2131USBSREG Page 15 of 17 Art. No. 2131USBS... -
Page 16: Appendix
Appendix 5 Appendix 5.1 Index Application program........14 Commissioning......... 9 ETS search paths........12 HID Driver..........9 Initialisation..........9 Mounting..........7-8 physical address........9 USB Driver..........9 Art. No. 2131USBSREG Page 16 of 17 Art. No. 2131USBS... - Page 17 Appendix ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de Art. No. 2131USBSREG Page 17 of 17 Art. No. 2131USBS...
