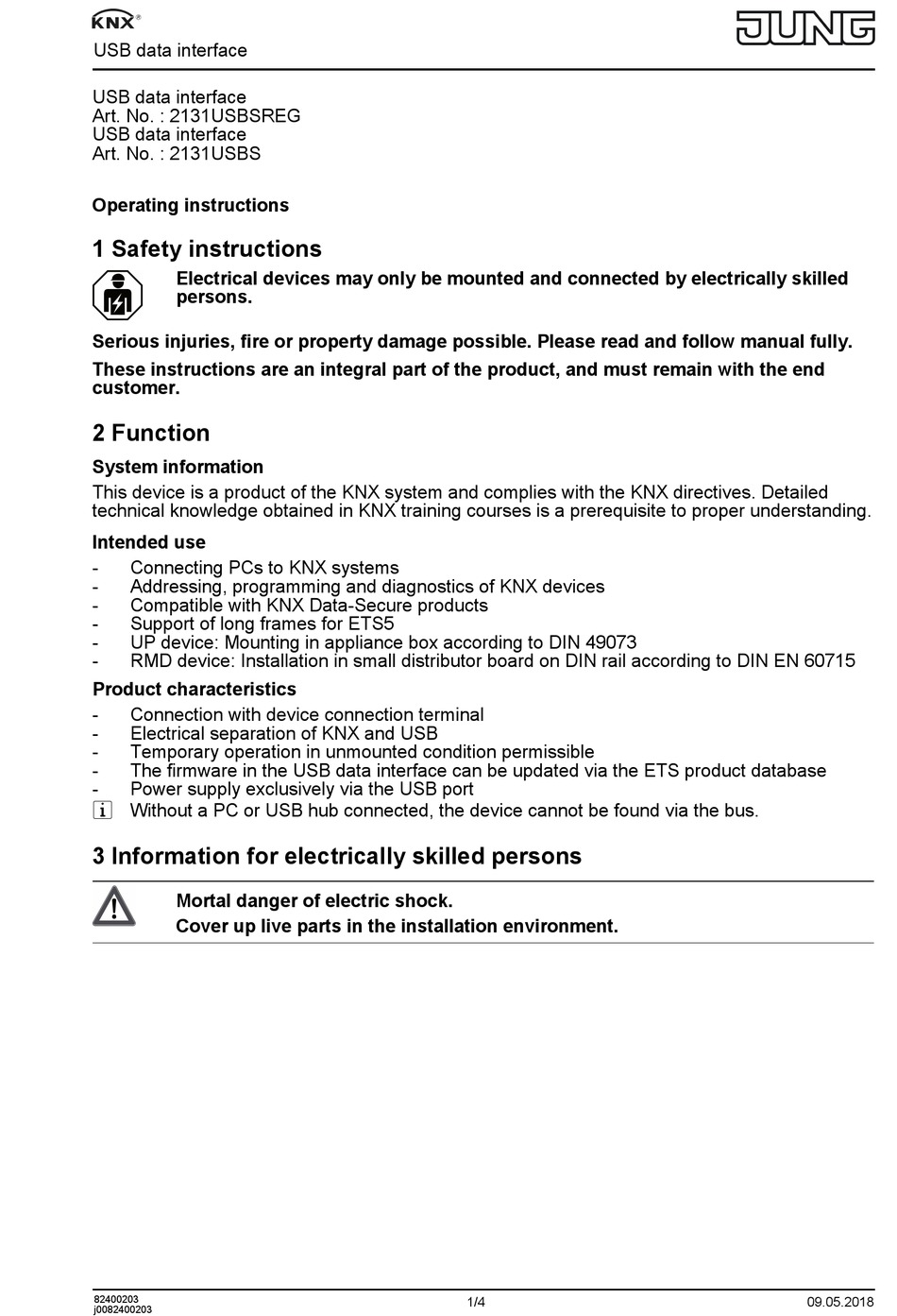

Jung 2131USBS Operating Instructions

USB data interface
USB data interface
Art. No. : 2131USBSREG
USB data interface
Art. No. : 2131USBS
Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
These instructions are an integral part of the product, and must remain with the end
customer.

2 Function

System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
Intended use
- Connecting PCs to KNX systems
- Addressing, programming and diagnostics of KNX devices
- Compatible with KNX Data-Secure products
- Support of long frames for ETS5
- UP device: Mounting in appliance box according to DIN 49073
- RMD device: Installation in small distributor board on DIN rail according to DIN EN 60715
Product characteristics
- Connection with device connection terminal
- Electrical separation of KNX and USB
- Temporary operation in unmounted condition permissible
- The firmware in the USB data interface can be updated via the ETS product database
- Power supply exclusively via the USB port
i Without a PC or USB hub connected, the device cannot be found via the bus.

3 Information for electrically skilled persons

Mortal danger of electric shock.
Cover up live parts in the installation environment.
82400203
j0082400203
1/4 09.05.2018
