KNX IP router
KNX IP router
Art.-No.: IPR 100 REG
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Use the safety transformer according to DIN EN 61558-2-6 (VDE 0570 Part 2-6) or bell
transformer according to DIN EN 61558-2-8 (VDE 0570 Part 2-8).
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

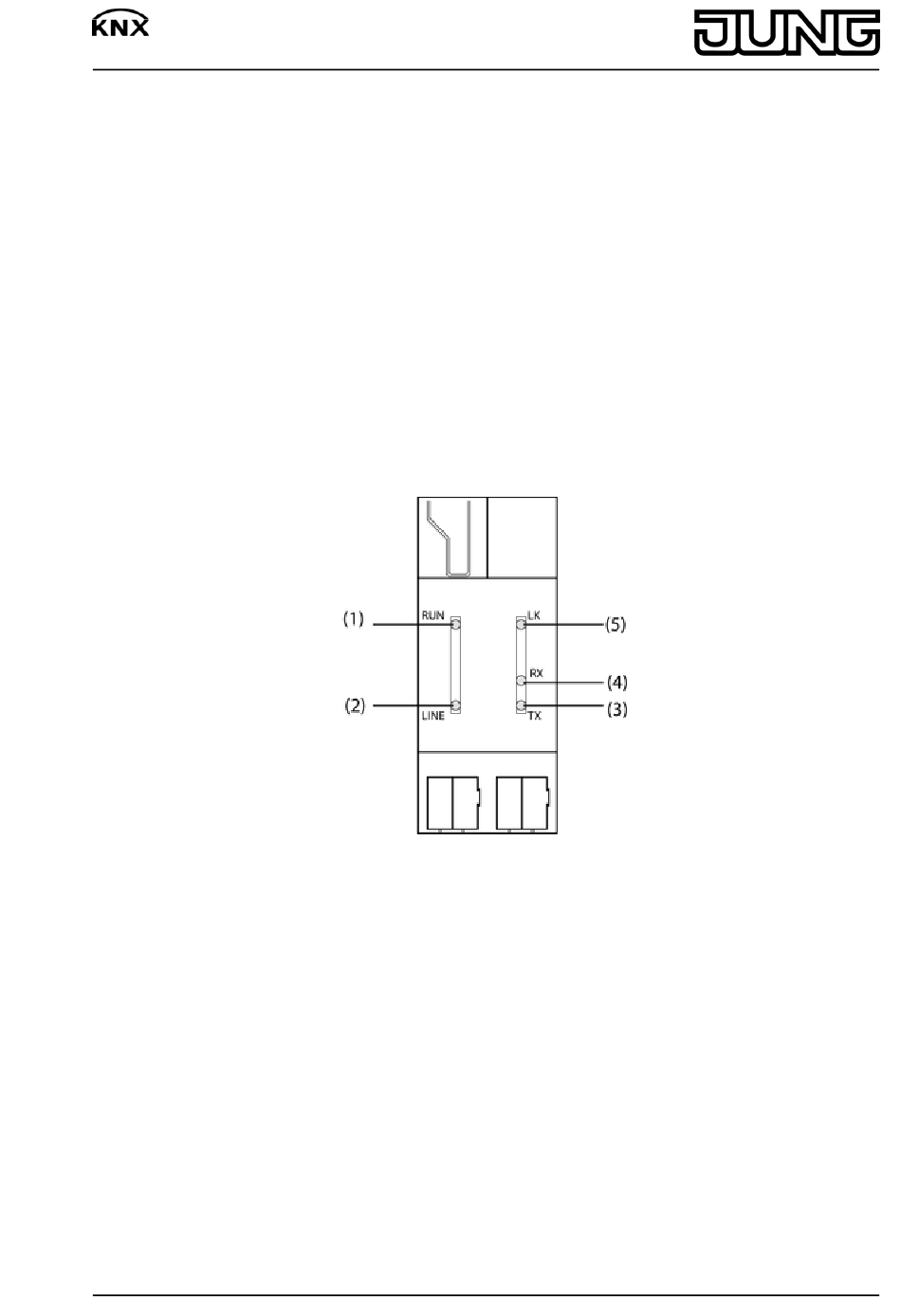

Status LED (fig. 1)
(1) RUN, green, ready for operation
(2) LINE, yellow, data reception on the KNX line
(3) TX, red, Ethernet Transmit Signal, lit up/flashing during active transmission to the IP
network
(4) RX, yellow, Ethernet Receive Signal, lit up/flashing during reception of valid IP telegrams
(5) LK, green, Ethernet Link Signal, lit up when there is an active connection to the IP network
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest versions of product database and
the technical descriptions are available on our website.
82561723
J:0082561723
picture 1
1/5
16.03.2010
Advertisement
Related Manuals for Jung IPR 100 REG
Summary of Contents for Jung IPR 100 REG
- Page 1 KNX IP router KNX IP router Art.-No.: IPR 100 REG Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 KNX IP router Intended use Connection of KNX devices with PCs or other data processing devices via IP Operation as a line/backbone coupler or data interface Mounting on DIN rail in distribution boxes. i For operation as a line/backbone coupler, network components that support IP multicasting are required.
- Page 3 KNX IP router i Power is supplied from the network cable – Power over Ethernet – or via the auxiliary voltage input (7). When the external power supply is connected, the device automatically switches over to it. Connect the external power supply of AC/DC 24 V to terminal (7). Recommendation: Use white/yellow terminal.
- Page 4 KNX IP router Assigning additional physical addresses Additional physical addresses can be assigned manually with ETS or automatically by the device itself. Press the programming button (9) for approx. 5 seconds. The programming LED flashes. The device checks the physical addresses present in the line and selects the required free physical addresses.
-
Page 5: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
