KNX IP interface
KNX IP interface
Art.-No.: IPS 100 REG
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Use the safety transformer according to DIN EN 61558-2-6 (VDE 0570 Part 2-6) or bell
transformer according to DIN EN 61558-2-8 (VDE 0570 Part 2-8).
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

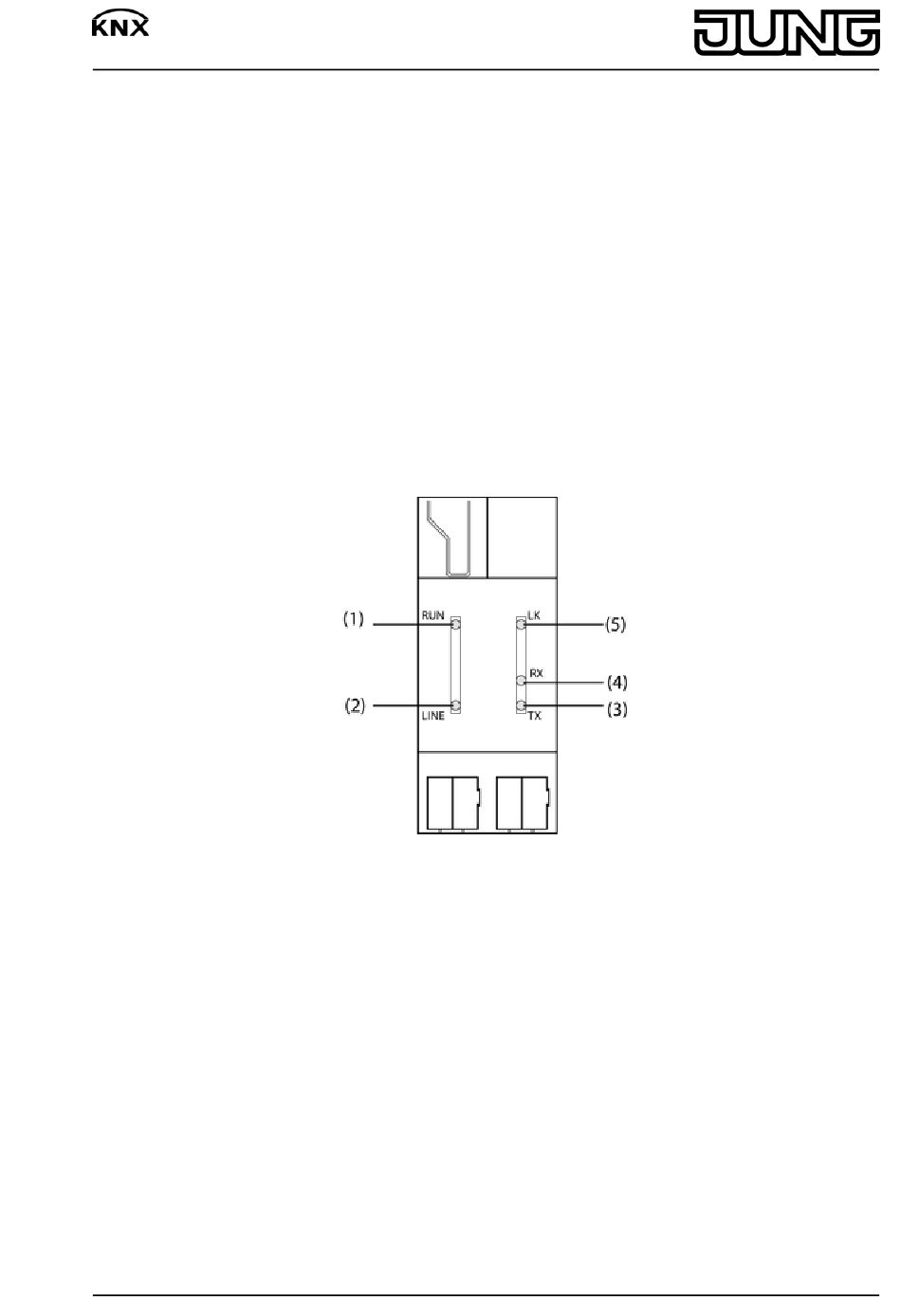

Status LED (fig. 1)
(1) RUN, green, ready for operation
(2) LINE, yellow, data reception on the KNX line
(3) TX, red, Ethernet Transmit Signal, lit up/flashing during active transmission to the IP
network
(4) RX, yellow, Ethernet Receive Signal, lit up/flashing during reception of valid IP telegrams
(5) LK, green, Ethernet Link Signal, lit up when there is an active connection to the IP network
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest versions of product database and
the technical descriptions are available on our website.
82571223
J:0082571223
picture 1
1/5
06.04.2010
Advertisement
Table of Contents
Related Manuals for Jung IPS 100 REG
Summary of Contents for Jung IPS 100 REG
- Page 1 KNX IP interface KNX IP interface Art.-No.: IPS 100 REG Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 KNX IP interface Intended purpose Connection of KNX devices with PCs or other data processing devices via IP, e.g. use as a data interface Mounting on DIN rail in small distributors i Depending on application, access requirements, data security and data volume it may be advisable to install independent network paths for individual services using the IP network.
- Page 3 KNX IP interface Connect the KNX line to the red and black bus terminal (8). Connect the IP side with RJ45 connector plugged into RJ socket (6). picture 3 i Connection example (picture 3). 4.2 Commissioning Loading the physical address and application software Use as a data interface: physical address x.y.z.
- Page 4 KNX IP interface i When additional bus devices are added, the corresponding physical addresses can be assigned twice. Delete the additional physical addresses – press the programming button (9) for approx. 10 seconds – and assign them again. 5 Appendix 5.1 Technical data Power over Ethernet supply Power over Ethernet...
- Page 5 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
