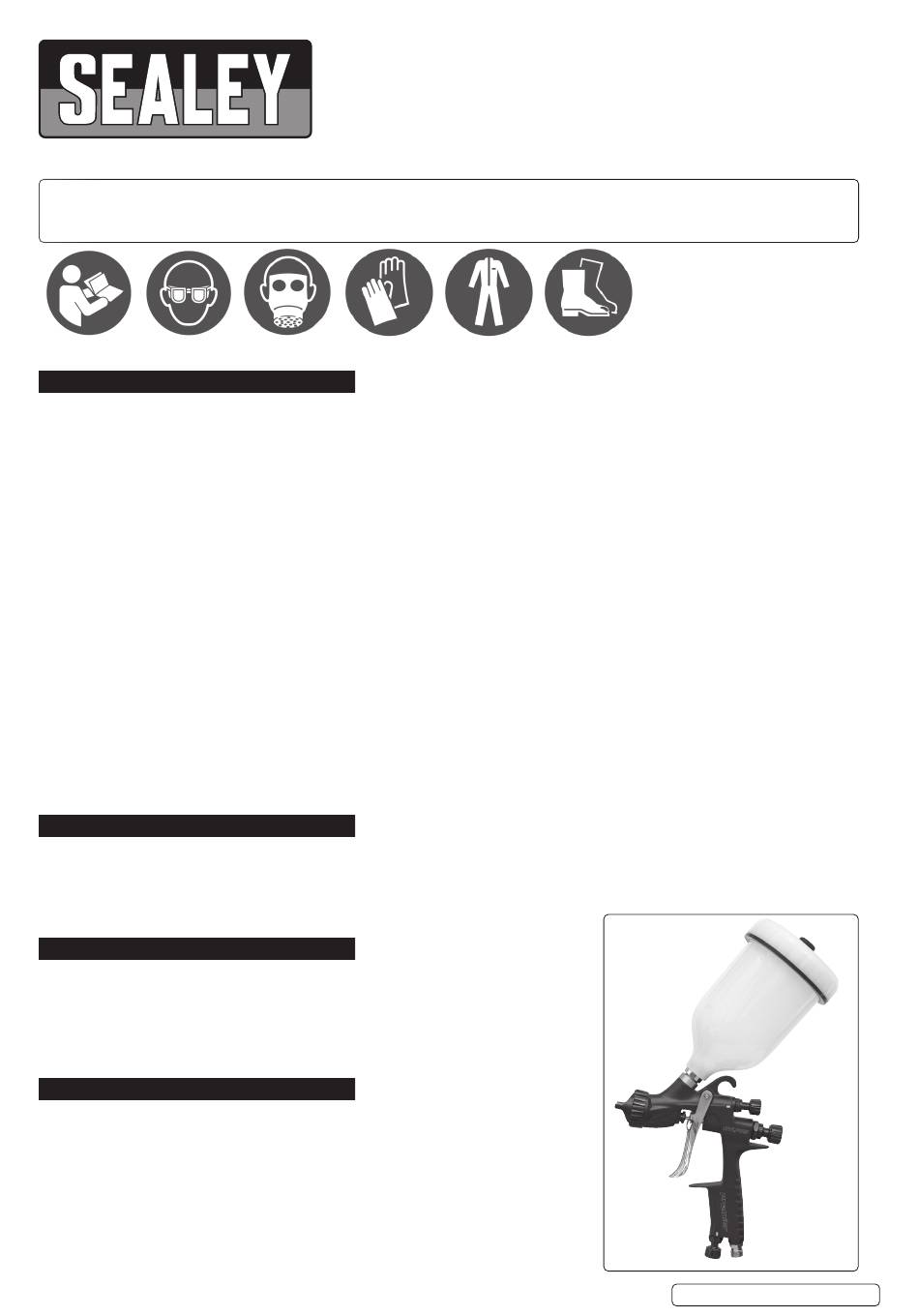

Sealey HVLP05 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
9
WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
‰
Maintain the spray gun in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use authorised parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the spray gun clean for best and safest performance.
9
Ensure that the compressed air system can supply the spray gun air consumption for the model to be used.
9
Wear approved safety respiratory protection and safety eye goggles.
9
If spraying isocyanate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves
9
and an impervious hooded coverall.
Remove ill-fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
9
Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is
9
adequate ventilation and lighting.
Keep children and unauthorised persons away from the work area.
9
When not in use, ensure that the air supply is turned off.
9
Avoid unintentional operation of spray gun.
9
The spray gun has been treated with an anti-corrosive agent at the factory and MUST be flushed out thoroughly with thinner before use.
9
DO NOT point spray gun at yourself, other persons or animals.
8
DO NOT direct air from the air hose at yourself, other persons or animals.
8
DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
8
DO NOT use the spray gun for any purpose other than that for which it is designed.
8
DO NOT allow untrained persons to operate the spray gun.
8
DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
8
DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
8
When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
9
2. INTRODUCTION
Gravity feed spray gun designed for applying clear and base coats. Features air and paint flow controls for fine adjustment of spray
pattern with a maximum size of 280mm. HVLP technology and precision engineering delivers consistent and unrivalled results. No
O-ring design for solvent resistance and increased life. Stainless steel fluid passages, needle, nozzle, air cap and air valve suitable
for water based paints.
3. SPECIFICATION
Model no ...........................................................HVLP05
Air consumption .............................................. 14.12cfm
Available set ups .......................................... 1.2, 1.4mm
Pot capacity ......................................................... 600ml
Recommended air pressure ............................. 29-32psi
Standard set up ................................................... 1.3mm
4. AIR SUPPLY
4.1. Recommended hook-up is shown in Fig.1.
4.2. Ensure spray gun air valve (or trigger) is in the off position before connecting
to the air supply.
4.3. You will require an air pressure of 32psi, and an air flow according to specification.
WARNING! Ensure the air supply is clean and does not exceed a maximum pressure of
‰
43psi while operating the spray gun.
Too high an air pressure and/or unclean air will shorten the product life
due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.4. Drain the air tank daily. Water in the air line will ruin the paint finish and damage the
spray gun.
© Jack Sealey Limited

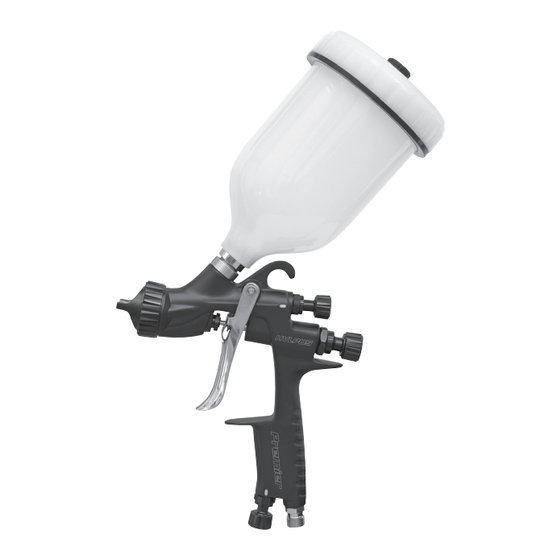

PROFESSIONAL HVLP GRAVITY FEED SPRAY
GUN 1.3MM SET-UP
MODEL NO:
Wear respiratory Wear protective
protection gloves
Original Language Version
HVLP05
Wear protective Wear protective
clothing footwear
HVLP05 Issue:2 (4) 03/01/23
