DEMO MANUAL DC1759A
QUICK START PROCEDURE

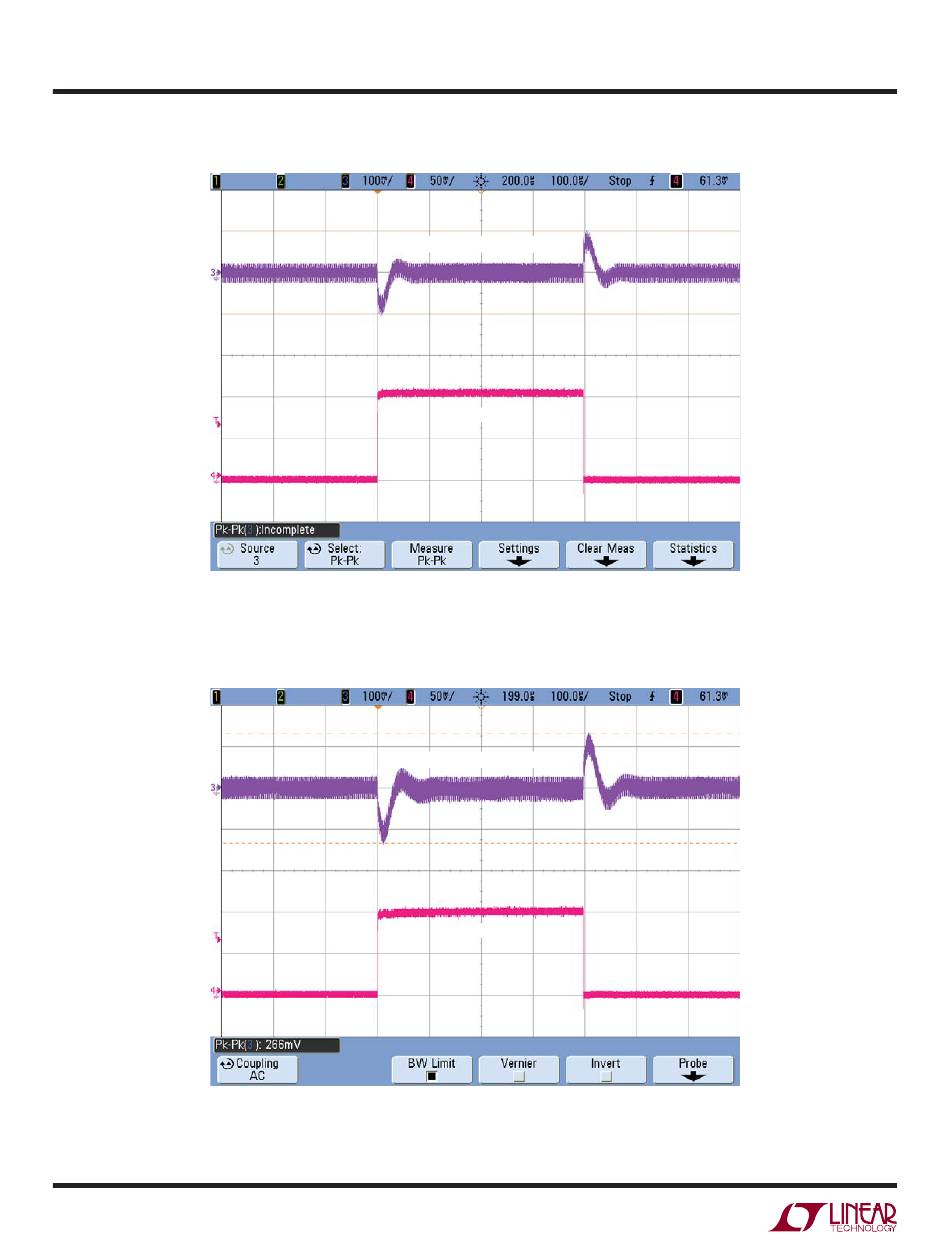

Figure 5. Measured Channel 1 6.5A to 13A Load Transient (V
Figure 6. Measured Channel 2 6.5A to 13A Load Transient (V
4
3.3V OUTPUT (20MHz BW) [100mV/DIV]
6.5A TO 13A LOAD
5V OUTPUT (20MHz BW) [100mV/DIV]
6.5A TO 13A LOAD
dc1759a F05
= 12V, V
= 3.3V)
IN
OUT1
dc1759a F06
= 12V, V
= 5V)
IN
OUT2
dc1759af
