TURNTABLE / PLATTENSPIELER
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
THUNDER
MK3

Advertisement

loading
Need help?

Need help?

Do you have a question about the THUNDER MK3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acoustic Signature THUNDER MK3

  • Page 1 TURNTABLE / PLATTENSPIELER INSTRUCTION MANUAL BEDIENUNGSANLEITUNG THUNDER...
  • Page 3 Dank für Ihr Vertrauen in unser Produkt, den Plat- Thunder MK3. With the purchase of your turntable you ac- tenspieler Thunder MK3. Mit dem Kauf dieses Plattenspielers quired a precision instrument for the play-back of records. To haben Sie ein Präzisionsinstrument zur Wiedergabe von...

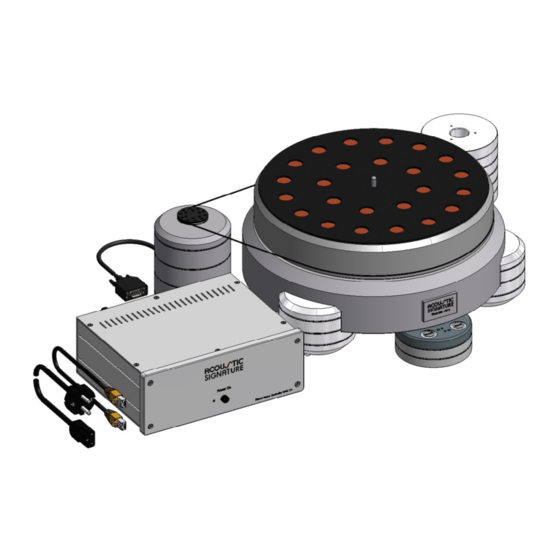

  • Page 4 Packing Verpackung Parts Teile Thunder MK3 chassis Thunder MK3 Chassis Control unit Bedienteil Motor unit Motordose Tool set Toolset Patch cable RJ45 Patchkabel RJ45 Power cord Netzanschlusskabel Platter Plattenteller Digital Motor Control DMC 2+ Digitale Motorsteuerung DMC 2+ Drive belt (not shown)
  • Page 5 Setup Aufbau Preparation Vorbereitung To avoid transport damages the Thunder MK3 Um Transportschäden zu vermeiden wird der comes in a carefully designed packing and is Plattenspieler sorgfältig verpackt und teilweise partially preassembled. zerlegt geliefert. We recommend to have a plane area of about Für den Aufbau benötigen Sie eine ebene Fläche...
  • Page 6 Mounting the platter Teller montieren Take away the cover strip over the bearing hole. Entfernen Sie den Schutzaufkleber über der La- gerbohrung. Insert the platter carefully into the bearing. Take care that it slides in slowly and easily. Setzen Sie nun den Plattenteller vorsichtig in die Lagerbohrung ein und senken ihn ab.
  • Page 7 Place the motor unit Motordose positionieren Place the motor unit at an optional position Die Motordose kann an jeder beliebigen freien around the platter. Normally the motor unit is Stelle um den Teller herum aufgestellt werden. placed on the opposite side of the tonearm. Normalerweise befindet sie sich gegenüber dem The distance of the motor unit (its axis) to the Tonarmausleger.
  • Page 8 Connecting the Thunder MK3 Anschlüsse am Thunder MK3 Connect the Thunder MK3 in 3 steps: Schliessen Sie den Thunder MK3 in 3 Schritten - Patch cable RJ45 - Motor cable - Patchkabel RJ45 - Power cord - Motorkabel - Netzkabel See picture below for correct positions of connec- tions.
  • Page 9 Drehzahl drücken Sie die SPEED – Taste. pressing the SPEED - button. Solange der Teller seine Solldrehzahl noch nicht As long as the Thunder MK3 speeds up or erreicht hat, blinkt die entsprechende LED. Nach down, the target speed LED is blinking. When the...
  • Page 10 Dimensions Abmessungen Turntable Plattenspieler Digital Motor Control DMC 2+ Digitale Motorsteuerung DMC 2+...
  • Page 11 Thunder MK3 Technical data Technische Daten Dimensions: Abmessungen: 495mm x 405mm x 185mm 495mm x 405mm x 185mm 19,5“ x 15,95“ x 7,3“ Weight: Gewicht: 37kg / 81,6lbs 37kg Drive System: Antrieb: 1 DC-Motor, speed controlled and regulated, fine ad-...
  • Page 12 Acoustic Signature Made by AS-Distribution GmbH Hillenbrandstrasse 10 D-73079 Süssen / Germany Tel: +49 7162 9474450 www.acoustic-signature.com E-Mail: info@as-distribution.de...
