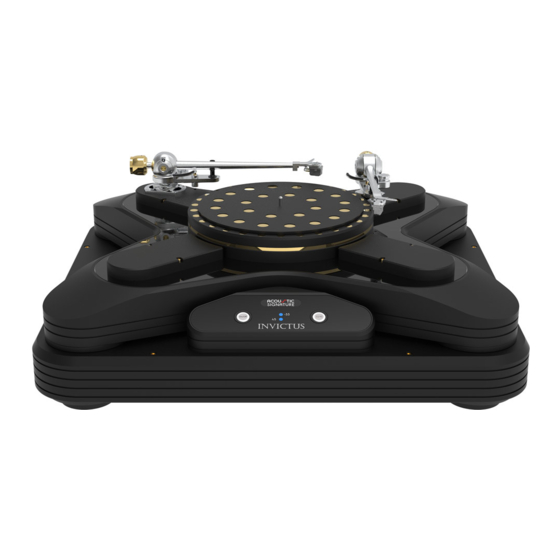

- Page 1 TURNTABLE INSTRUCTION MANUAL ENGLISH INVICTUS Rack...
- Page 2 Setup of the rack / explosion drawing of packing To avoid damage during transport your turntable comes carefully packed. Unpack all the parts in the 2 boxes. Please be aware that the parts of the INVITUS-Stand are very heavy. Ensure that a second person is avaiable to assist you.
- Page 3 1. Ground plate Take the ground plate and place it where you want to have the INVICTUS. 1.2 Ground plate Take a look at the bottom of the ground plate and open the screw by turning it 2 times counter clockwise.
- Page 4 2. Inserting the light Use the provided halogen light bulbs and insert them into the sockets inside of the tube holders. 3. Mounting the tubes Take out each of the tubes and screw them onto the tube holder by turning them clockwise onto the holder. See the picture on the right side.
- Page 5 5. Mounting the feets Use the 4 provided feets and screw them into the thre- ads in the bottum of the ground plate. Place the stand exactly where you want it to be. Than level the stand by turning the 4 feets clockwise or counter clockwise. Make sure that the inserts inside the top of the tubes are turned in so far that they are lower than the tube itself.
- Page 6 6. Mounting the top plate Take out the top plate and place it on top of the 4 tubes like you see in the picture beside. Use the provided 4 screws and screw the top plate into the tubes. 7. Mounting the rubber protectors Take out the wooden adjustment plate and decide where you want to have the glass shelf to be positioned inside your stand.
- Page 7 8. Done After succesfully finished all the assembly instructions your INVICTUS-Stand should look like on the picture beside. You can now put the plug of the transformer into the main outlet and use the internal light by sliding the...
- Page 8 Dimensions H 80,0 cm W 80,0 D 70,0 cm Weigth: 189 kg or 417 pound Acoustic-Signature Made by AS-Distribution GmbH Hillenbrand Straße 10 D-73079 Süssen Tel: +49 7162 9474450 Fax: +49 7162 9474459 www.acoustic-signature.com E-Mail: info@as-distribution.de...
