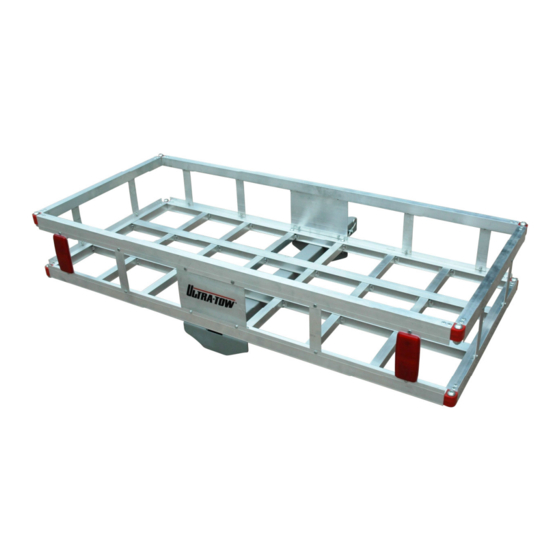

- Page 1 49IN. ALUMINUM CARGO CARRIER OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 28679...
- Page 2 Thank you very much for choosing a Ultra-Tow product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.
- Page 3 IMPORTANT SAFETY CONSIDERATIONS CARGO CARRIER USE AND CARE Do not modify the cargo carrier in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the equipment. There are specific applications for which the cargo carrier was designed. Always check of damaged or worn out parts before using the cargo carrier.
- Page 4 FIG. 2 Reflectors Step 3 Put above assembled carrier on 2” support tube (12), and tighten with M8 cup-head hex bolt (9), M8 flat washer (10), and M8 locknut (11). See FIG. 3. FIG. 3 Ultra-Tow Logo outside Page of 7...
- Page 5 OPERATION IMPORTANT: 2 adjustments are recommended for attaching the cargo carrier to the towing vehicle. Lift the Cargo Carrier and place the support tube into the towing vehicle’s 2in. hitch receiver. Line up the holes in the support tube with the hole in your receiver hitch. Then slide Hitch Pin through the holes and insert clip to secure the Hitch Pin.
- Page 6 DIAGRAM AND PARTS LIST Part# Description Q’ty Part# Description Q’ty Side Panels Locknut Base Cup-head Hex Bolt M8 Flat Back Panel Washer Locknut Locknut M4 Hex 2” Support Bolt Tube Front Panel Hitch pin Cup-head Clip Hex Bolt Page of 7...
- Page 7 For replacement parts and technical questions, please call 1-800-222-5381. WARRANTY One-year limited warranty Distributed by Northern Tool + Equipment Co., Inc. Burnsville, Minnesota 55306 NorthernTool.com Made in China Page of 7...
