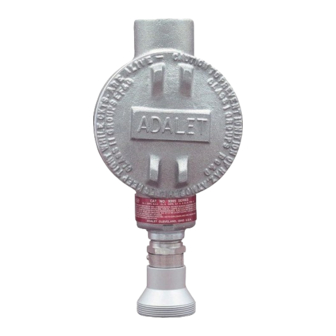

RKI Instruments 65-2322RKSS Operator's Manual

RKI Instruments 65-2322RKSS Operator's Manual

Oxygen transmitter

Advertisement

Quick Links

65-2322RKSS
Oxygen Transmitter
Operator's Manual
Part Number: 71-0299RK
Revision: B
Released: 10/1/20
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65-2322RKSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RKI Instruments 65-2322RKSS

  • Page 1 65-2322RKSS Oxygen Transmitter Operator’s Manual Part Number: 71-0299RK Revision: B Released: 10/1/20 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2 Typical calibration frequen- cies for most applications are between 3 and 6 months, but can be required more often or less often based on your usage. 2 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www.
  • Page 3 Product Warranty RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in materials, workmanship, and performance for a period of one year from date of shipment from RKI Instruments, Inc. Any parts found defective within that period will be repaired or replaced, at our option, free of charge.
  • Page 4: Table Of Contents

    Parts List ..............21 4 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www.
  • Page 5: Overview

    WARNING: When using the 65-2322RKSS, you must follow the instructions and warnings in this manual to assure proper and safe operation of the 65-2322RKSS and to minimize the risk of personal injury. Be sure to maintain and periodically calibrate the 65-2322RKSS as described in this manual.
  • Page 6: Description

    Zero Pot + Test Point (Red) 100mV - 500mV Range - Test Point (Black) Detector Terminal Strip J-Box Oxygen Detector Figure 1: Oxygen Transmitter Component Location 6 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 7: Oxygen Detector

    Plug-in Oxygen Sensor The plug-in sensor is secured in the detector assembly by the housing cap. Through a series of chemical and electrical reactions, the sensor produces a millivolt output that corresponds to 65-2322RKSS Oxygen Transmitter • 7 GlobalTestSupply www.
  • Page 8: Amplifier

    The black test point in the lower left corner is the negative (-) test point and the red test point below the zero pot is the positive (+) test point. 8 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www.
  • Page 9: Junction Box

    Select a site where the transmitter is not likely to be bumped or disturbed. Make sure there is sufficient room to perform start-up, maintenance, and calibration procedures. • Select a site that is at normal breathing level. 65-2322RKSS Oxygen Transmitter • 9 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 10 1.10 Figure 3: Mounting the Oxygen Transmitter 2. At the monitoring site you select, hang or mount the junction box with the detector facing down (see Figure 3). 10 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www. .com Find Quality Products Online at:...
  • Page 11: Wiring The Oxygen Transmitter To A Controller

    CAUTION: Do not route power and transmitter wiring through the same controller conduit hub. The power cable may disrupt the transmission of the transmitter signal to the controller. 65-2322RKSS Oxygen Transmitter • 11 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 12 12. If shielded cable is used, connect the cable’s drain wire to an available chassis (earth) ground at the controller. RKI controllers typically have a ground stud that can be used to ground the cable’s drain wire. 12 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www.
  • Page 13: Startup

    The procedure below describes applying zero emission air, usually called zero air, using a calibration kit that includes a calibration cup, calibration gas, sample tubing, and a fixed flow regulator with an on/off knob. RKI Instruments, Inc. recommends using a 0.5 LPM (liters per minute) fixed flow regulator.
  • Page 14: Maintenance

    Calibrate the oxygen transmitter as described in “Calibration” on page 18 of this manual. See the calibration frequency discussion in “Calibration Frequency” on page 18 to determine if a quarterly calibration schedule fits your needs. 14 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www.
  • Page 15: Troubleshooting

    4. If the calibration/response difficulties frequent calibration continue, replace the plug-in sensor schedule. as described later in this section. 5. If the calibration/response difficulties continue, contact RKI for further instruction. 65-2322RKSS Oxygen Transmitter • 15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 16: Replacing Components Of The Oxygen Transmitter

    4. Remove the detector terminal strip from its socket. 5. Disconnect the detector leads from the detector terminal strip. Note the position of the color-coded leads as you remove them. 6. Unscrew the detector from the junction box conduit hub. 16 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 17 Be sure to make arrangements so that this does not cause unwanted alarms. 9. Turn on power to the controller. 10. Turn on the controller and place it into normal operation. 65-2322RKSS Oxygen Transmitter • 17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 18: Calibration Frequency

    Although there is no particular calibration frequency that is correct for all applications, a calibration frequency of every 3 months is adequate for most oxygen transmitter applications. Unless experience in a particular application dictates otherwise, RKI Instruments, Inc. recommends a calibration frequency of every 3 months for the oxygen transmitter.
  • Page 19: Setting The Fresh Air Reading

    5. Unscrew the regulator from the calibration cylinder. 6. Unscrew the calibration cup from the detector housing cap. NOTE: For convenience, leave the regulator and calibration cup connected by the sample tubing. 65-2322RKSS Oxygen Transmitter • 19 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 20: Returning To Normal Operation

    NOTE: If you do not allow the gas reading to increase above the decreasing alarm point, then unwanted alarms may occur. 4. Verify that the controller display reading increases and stabilizes at 20.9% volume. 5. Store the components of the calibration kit in a safe and convenient place. 20 • 65-2322RKSS Oxygen Transmitter GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 21: Parts List

    S2 series oxygen amplifier, w/orienting gasket, 0 - 25% 65-1025RK Oxygen plug-in sensor 65-2514RK Oxygen detector assembly, explosion proof, includes plug-in sensor 71-0299RK 65-2322RKSS Operator’s Manual (this document) 81-0076RK Zero air calibration cylinder, 17 liter 81-0076RK-01 Zero air calibration cylinder, 34 liter steel 81-0076RK-03...
