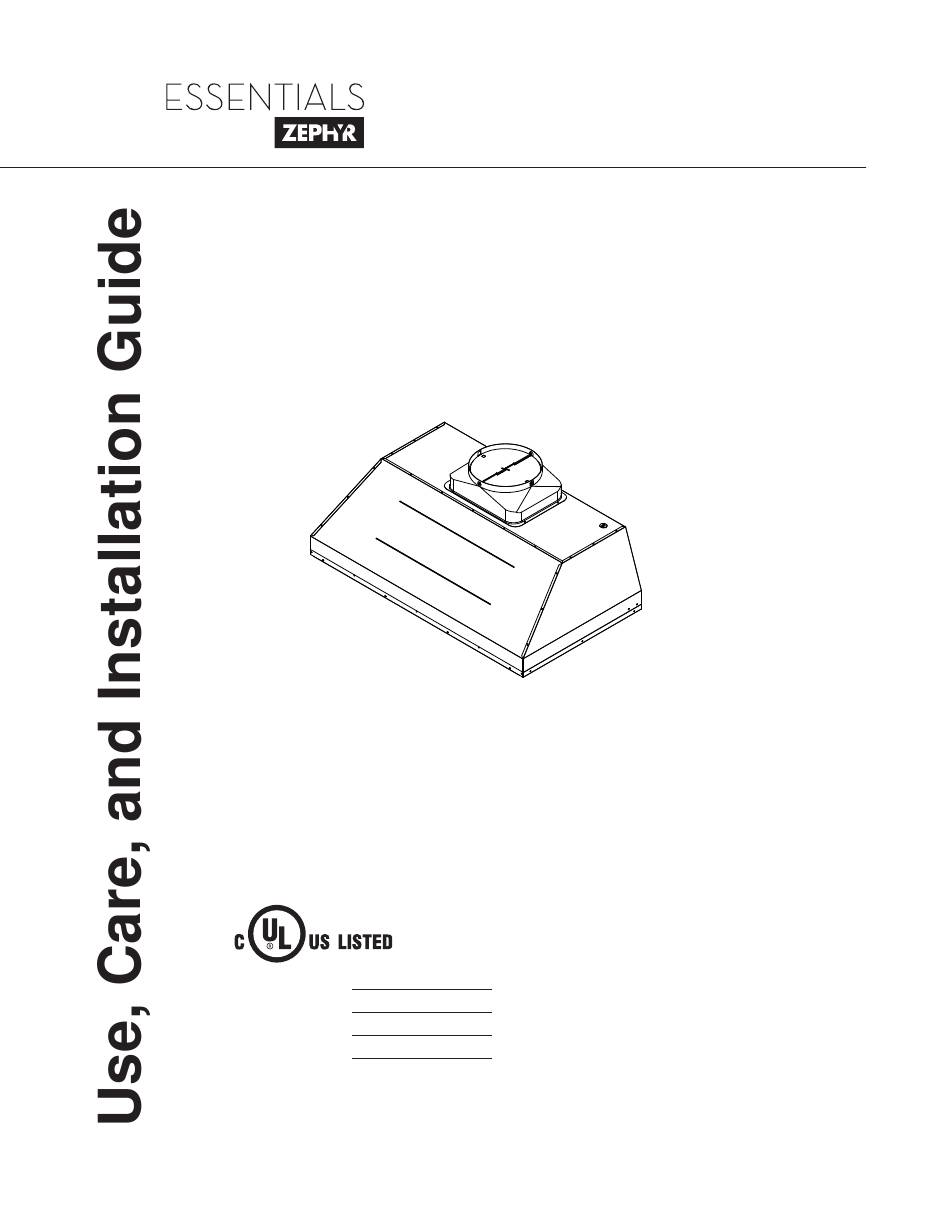

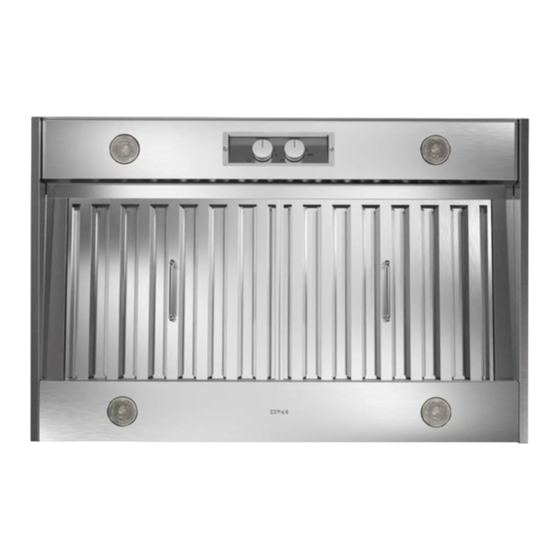

- Page 1 www.zephyronline.com Spruce AK9834AS AK9840AS AK9846AS AK9858AS Model number: Serial Number: Date of Purchase: Sales Dealer: JAN18.0101 © Zephyr Ventilation LLC. READ AND SAVE THESE INSTRUCTIONS...
- Page 2 www.zephyronline.com...
-
Page 3: Table Of Contents
SAFETY NOTICE ................LIST OF MATERIALS ..............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options .......................... Electrical ................. Installing the One Piece Insert ......Insert Preparation ............FEATURES & CONTROLS Rotary Controls ............MAINTENANCE Cleaning & Installing Filters ........ -
Page 4: Safety Notice
www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a. - Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. NOT FOR USE OVER AN OUTDOOR GRILL CAUTION attics, crawl spaces or garages. OPERATION and loose clothing. The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product.
-
Page 6: List Of Materials
www.zephyronline.com MODELS: AK9834AS, AK9840AS, AK9846AS AND AK9858AS PARTS SUPPLIED 1 - Insert hood body 1 - 10” round duct collar 1 - Hardware package HARDWARE PACKAGE CONTENTS Light Bulb Removal Wire Caps (3) #8 x 1/2” (12) M4 x 6mm (4) Suction Cup (1) PARTS NOT SUPPLIED - Ducting, conduit and all installation tools... -
Page 7: Ducting Calculation Sheet
Equivalent number Duct pieces Equivalent number Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft. -
Page 8: Installation
www.zephyronline.com Minimum mount height between range top to hood bottom should be no less than 30”. Maximum mount height should be no higher than 36”. It is important to install the hood at the proper mounting height. Hoods mounted too low could mounted too high will be hard to reach and will If available, also refer range manufacturer’s height i n . -
Page 9: Ducting Options
WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use single wall rigid metal ductwork only. Some Ducting Options side wall cap w/ gravity damper side wall cap w/ gravity damper... - Page 10 www.zephyronline.com 3/4 View (34”)12” (40”)15” (46“)18” (58”)27” elec. Top View (34”)12” (40”)15” (46“)18” (58”)27” elec. Back View...
-
Page 11: Electrical
ELECTRICAL WARNING how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. Electrical Supply: This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. -
Page 12: Installing The One Piece Insert
www.zephyronline.com CAUTION: At least two installers are required due to the weight and size of the hood. If possible, power up and test all functions prior to installation. Use caution during installation to prevent scratches or damage to the stainless steel. 2. -
Page 13: Insert Preparation
2. Remove grease tray by: 1) Pulling up on tray to front of insert. 2) release from bottom panel. 2) Lifting tray out of insert body. Bottom Panel Screws Locking Tabs 3. Remove left and right side spacer panels by 4. -
Page 14: Rotary Controls
www.zephyronline.com 1 Blower On/Off/Speed Selection 2 Lights Dim/Bright/Off 1 Blower On/Off/Speed Selection Rotate dial to change speed levels, (1) for low speed, (2) for medium speed and (3) for high s 2 Lights Dim/Bright/Off Rotate dial to change light settings, (1) for dim light and (2) for bright light... -
Page 15: Cleaning & Installing Filters
SURFACE MAINTENANCE: Do not use corrosive detergents, abrasive detergents or oven cleaners. Do not use any product containing chlorine bleach or any product containing chloride. Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. -
Page 16: Lights & Parts List
www.zephyronline.com REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise. -
Page 17: Wiring Diagram
MAX. USE ONLY TYPE MR16, GU10, 35W. HALOGEN LIGHT BULBS. AK9834AS, AK9840AS VOLTS MAX AMPS AK9846AS, AK9858AS Dual Motor 9 CIRCUIT DIAGRAM... -
Page 18: Troubleshooting
www.zephyronline.com TROUBLESHOOTING PROCEDURES FOR SPRUCE Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2. -
Page 19: Warranty
STAPLE YOUR RECEIPT HERE Proof of the original purchase date is needed to obtain Limited Warranty service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-880-8368 Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”... -
Page 20: Product Registration
www.zephyronline.com PRODUCT REGISTRATION Congratulations on your Zephyr range hood purchase! Please take a moment to register your new range hood at www.zephyronline.com/registration IT’S IMPORTANT Prompt registration helps in more ways than one. Ensures warranty coverage should you need service. Ownership verification for insurance purposes.
