aspenhome
ah
ITEM NO: I349-297H-WST
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
HARDWARE LIST:
No.
Description
Bolt Ø1/4" x 1-3/4" (20)
A
Bolt Ø1/4" x 3/4" (20)
B
Lock Washer Ø1/4"
C
Flat Washer Ø1/4" x 3/4"
D
Allen Wrench 4mm
E
Wood Screw #4 x 1-1/4"
F
Metal Plate
G
I349-297H
I349-297
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/3
R

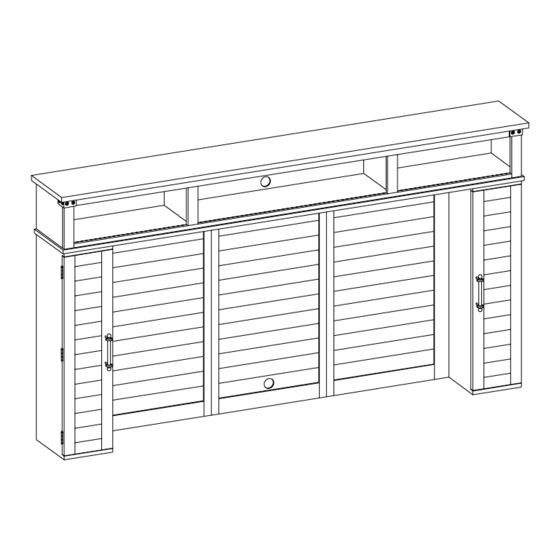

96" Hutch
Sketch
Quantity
20 PCS
8 PCS
28 PCS
28 PCS
1 PC
16 PCS
4 PCS
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
COMPONENTS LIST:
Description
No.
1
Top Assembly
Left Pedestal
2
Right Pedestal
3
Back Panel (Left)
4
Back Panel (Middle)
5
Back Panel (Right)
6
Leveler on Legs & Support Leg
Adjust the leveler
when necessary
Quantity
Sketch
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
11-17-2022
Advertisement
Table of Contents
Related Manuals for aspenhome I349-297H-WST
Summary of Contents for aspenhome I349-297H-WST
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I349-297H-WST 96" Hutch Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED) PHILLIPS SCREWDRIVER...
- Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: I349-297H-WST 96" Hutch STEP 1: Attach the back panels (left & right) to the back panel (middle) using 6 bolts (A), lock washers (C) and flat washers (D) as shown below. Do not completely tighten bolts.
- Page 3 ASSEMBLY INSTRUCTIONS ITEM NO: I349-297H-WST 96" Hutch STEP 3-1: Attach the top assembly to the pedestal assembly using 8 bolts (B), 6 bolts (A), lock washers (C) and flat washers (D). Completely tighten all bolts. STEP 3-2: Reverse each handle by removing the screws while each door is open and attach all handles to the front of the doors with screws as shown below.
- Page 4 ASSEMBLY INSTRUCTIONS ITEM NO: I349-297-WST 96" Console Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED) PHILLIPS SCREWDRIVER STEP 1: Reverse each handle by removing the screws while opening each door in the middle and attach all handles to the front of middle doors with screws as shown below.
