ITEM NO: I349-6050-WST
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
For OPTION 1:
STEP 1: Lay the table top face down on a soft surface. Attach the legs(A) and legs(B) to table top
by using 8 flat washers(E), lock washers(D) and hex nuts(A). Do not completely tighten bolts.
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/3
R

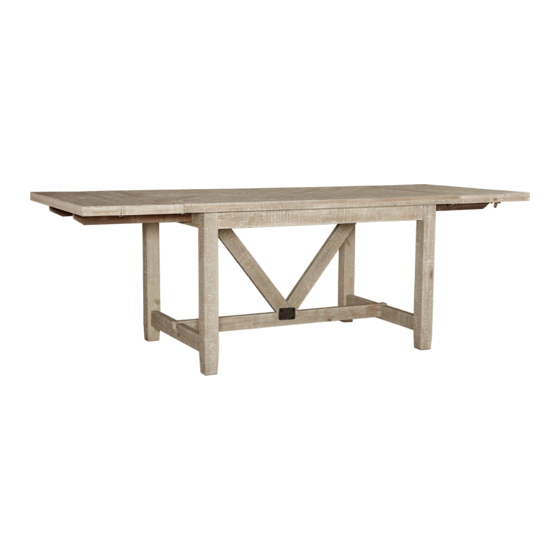

Extendable Trestle Dining Table
Option 1
Option 2
Leg(A)
E
D
A
G
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
HARDWARE LIST:
No.
Description
Hex Nut Ø5/16"
A
Bolt Ø5/16" x 2"(18)
B
Half Moon Washer Ø5/16"
C
Lock Washer Ø5/16"
D
Flat Washer Ø5/16" x 3/4"
E
Allen Wrench 4mm
F
Hex Wrench 12mm
G
COMPONENTS LIST:
Description
No.
1
Table Top
Leaf
2
Leg A
3
Leg B
4
Middle Stretcher
5
Side Stretcher
6
Leg(B)
Sketch
Quantity
8 PCS
8 PCS
4 PCS
16 PCS
12 PCS
1 PC
1 PC
Quantity
Sketch
1 PC
2 PCS
2 PCS
2 PCS
1 PC
2 PCS
Leg(B)
Leg(A)
Table Top
10-26-2022
Advertisement
Related Manuals for aspenhome I349-6050-WST
Summary of Contents for aspenhome I349-6050-WST
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I349-6050-WST Extendable Trestle Dining Table Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED)
- Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: I349-6050-WST Extendable Trestle Dining Table STEP 2: Attach the middle stretcher to table top by using 2 flat washers(E), lock washers(D) and bolts(B). Do not completely tighten bolts. Middle Stretcher STEP 3-1: Attach the side stretchers to the legs by using 4 half moon washers(C), lock washers(D) with the bolts(B).
-
Page 3: Off Position
ASSEMBLY INSTRUCTIONS ITEM NO: I349-6050-WST Extendable Trestle Dining Table For OPTION 2: STEP 4: Unbuckle the table locks under the table top to the OFF position as shown below and pull the table top completely apart from each end. -
Page 4: Hardware List
ASSEMBLY INSTRUCTIONS ITEM NO: I349-6640S-WST Dining Side Chair w/ Uph Seat (2/Ctn) Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. - Page 5 ASSEMBLY INSTRUCTIONS ITEM NO: I349-6640S-WST Dining Side Chair w/ Uph Seat (2/Ctn) STEP 1: Attach the chair seat to chair back by using 4 bolts(B), 3 bolts(C), 7 lock washers(D), 7 flat washers(E) with an allen wrench(F), Do not completely tighten bolts.
