L729
Rev. C
05/99
6
8
Item
Part Number
1
IC300
★ CM56167
2
★ B1007503
3
★ B1012564
4
5
DA973950SR
6
B1351028
★ Items included in and available only as part of Repair Kit VS3-24K.
NOTE: Use the connector that came with the pump or order the connector using the part number form the pump's repair parts sheet.
TO PROTECT YOUR WARRANTY USE ONLY ENERPAC HYDRAULIC OIL.
®
3
4
5
2
4
3
9
Qty.
Description
1
Remote Pendant
1
Gasket
4
O-Ring
4
Back-up Washer
1
Connector Assembly
6
Socket Head Cap Screw

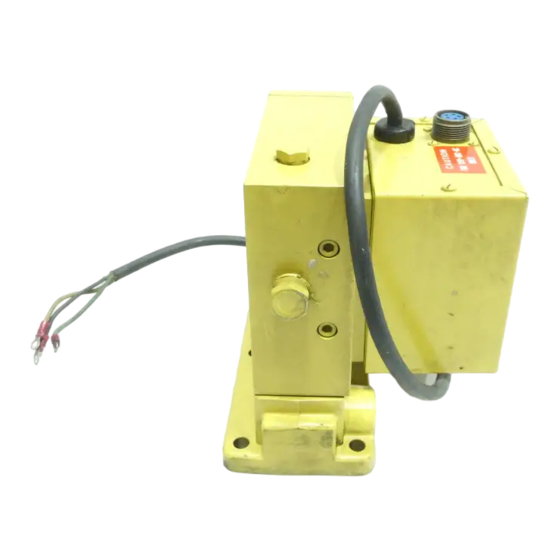

Repair Parts Sheet
Directional Control Valves
For Date Codes Beginning with the Letter "O"
6
7
8
Torque to 11-13 Ft. Lbs.
10

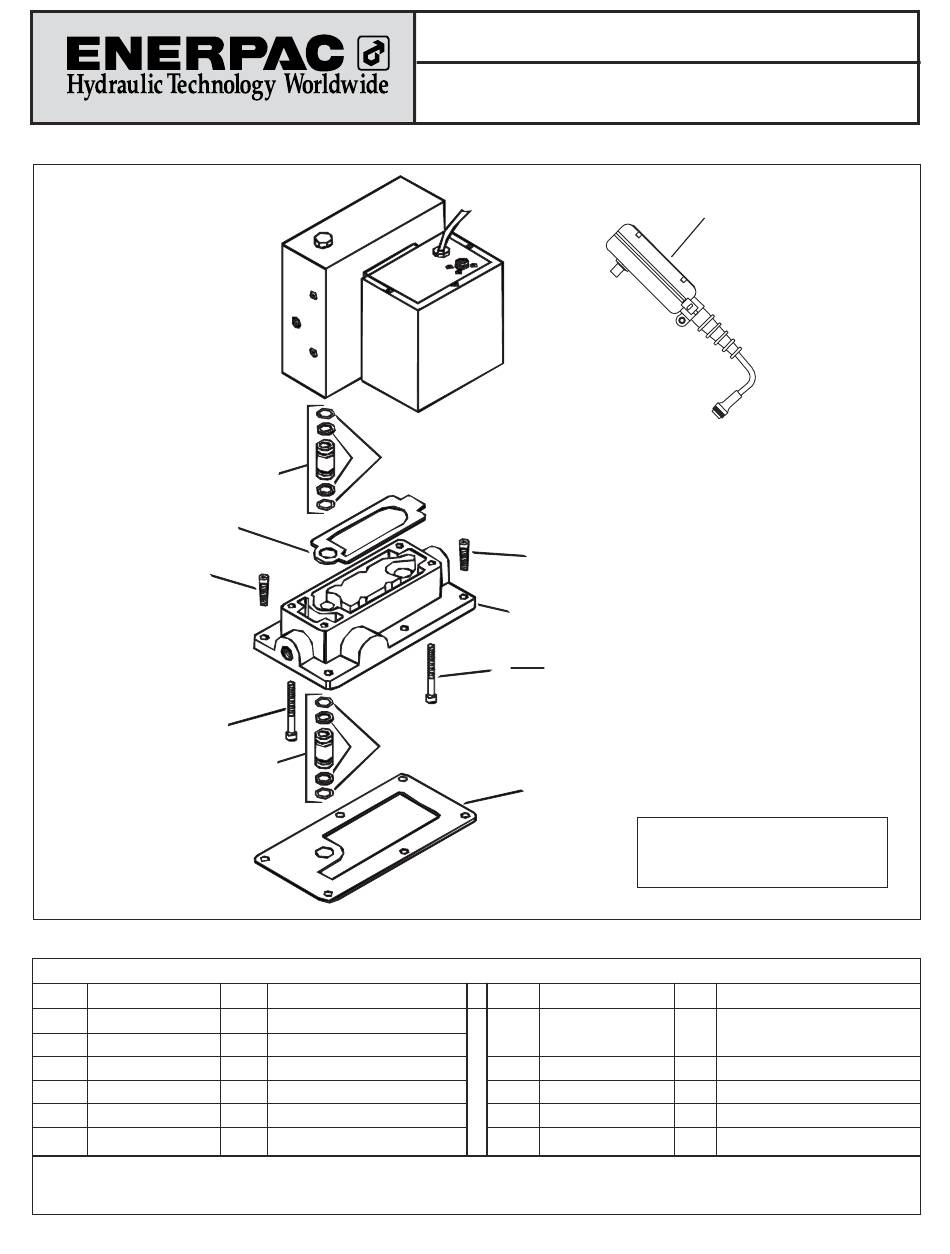

Figure 1
Repair Parts List
Item
Part Number
7
F127038
F130038
8
B1017028
9
See note below
★ F786167
10
VS-3 and VSR-3
1
NOTE: An electrical schematic of
the
pendant
appears on page 4.
Qty.
Description
1
Adaptor (VS3)
1
Adaptor (VSR3)
4
Sckt. Head Cap Screw
1
Connector Assy.
1
Gasket
assembly
