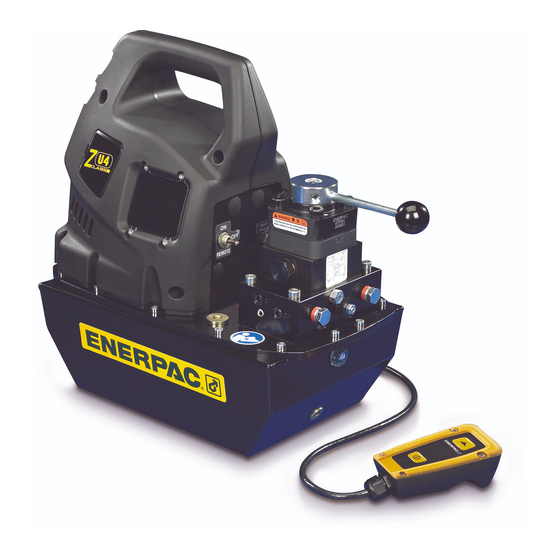

Enerpac VM43-LPS Repair Parts Sheet

L2633 Rev. B
Index:
English ...................................................................1-8
Français ...............................................................9-11
Deutsch............................................................. 12-14
Italiano ...............................................................15-17
Español ..............................................................18-20
Nederlands.........................................................21-23
Portuguese.........................................................24-26
Suomalainen ......................................................27-29
Norsk .................................................................30-32
Svensk ...............................................................33-35
.................................................................. 36-38
............................................................... 39-41
64
59
61
5
65

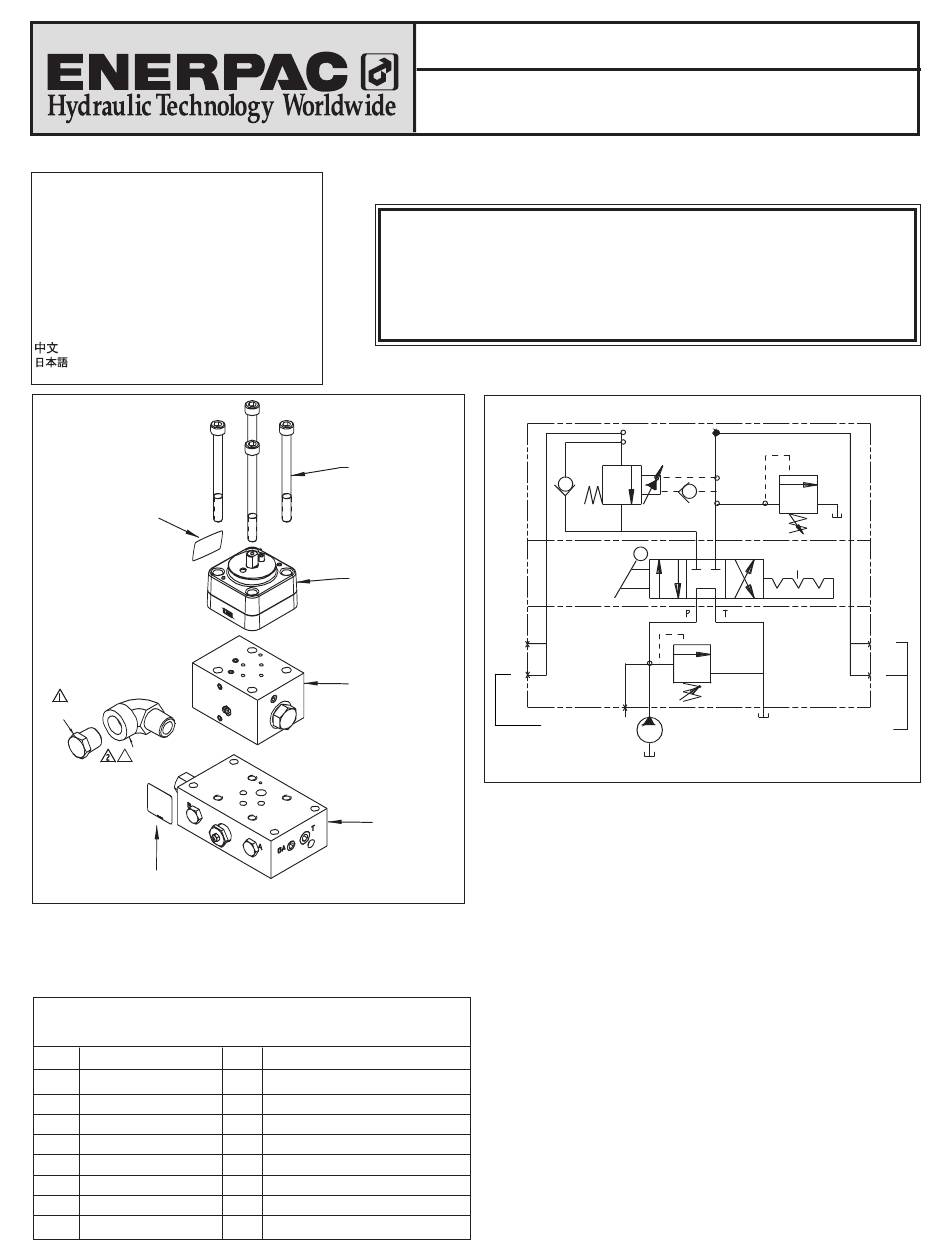

Figure 1, VM43-LPS
* See Figure 3, page 2.
** See Figure 4, page 4.
*** See Figure 5, page 5.
Repair Parts List for Figure 1,
VM43-LPS
Item Part Number
49 DC6631950SR
50 DC6356950SR
51 CB317900SR
59
61
62 CBE1051028-1A
64 CH272026
65 DC6633026
®
08/06
62
51*
50**
49***
Qty. Description
1 See Fig. 5, Page 5
1 See Fig. 4, Page 4
1 See Fig. 3, Page 2
1 See Fig. 5, Page 5
1 See Fig. 5, Page 5
4 Cap Screw
1 Decal, Caution
1 Decal
Repair Parts Sheet
VM43-LPS Manual Valves
For Date Codes Beginning with the Letter "A"
To Protect Your Warranty, Use Only ENERPAC
Enerpac recommends that all kit components be installed to insure
optimum performance of the repaired product.
GA
A
Stressing
Port
Hydraulic Oil.
3,700 +/-
200 psi
7,500 +/-
200 psi
GP
Figure 2, Hydraulic Schematic
6,500 +/-
200 psi
GB
B
Seating/Retract
Ports
