BeachTek DXA-FX Operating Instructions

Specifications
Gain Adjustable from -10
Frequency response 20 Hz - 20 KHz,
Output noise level less than -80 dBu
Input level before clipping +1.5 dBu
-27 dBu
Maximum output level -30 dBu
-36 dBu
Battery type / duration (1) 9 volt alkaline battery
10 hours typical
LED battery indicator
Current draw 35 mA typical
Case Powder coated aluminum
Dimensions 5.25" L x 2.5" W x 1.25" H
Weight 16 oz

Limited One Year Warranty

This warranty covers any defects or malfunction in your new BeachTek adapter
for one full year.
BeachTek will replace any defective or malfunctioning adapter, within the
warranty period, with a new unit at no charge. The warranty does not cover
damage resulting from accident, alteration, misuse or abuse. The device must
be sent to our service center at your expense.
Should you require service please contact us first before returning the unit to
us. Return instructions can be found on our website at www.beachtek.com/
questions.html
Upon receiving the returned adapter it will be inspected and replaced if found
defective. The unit will be shipped back to you within five business days at our
expense.
BeachTek Inc.
2120 Queen Street East, Suite 202
Toronto, Ontario M4E 1E2
tel (416) 690-9457 • fax (416) 690-0866
email adapter@beachtek.com
web www.beachtek.com
to +15
dB dB
+/-3 dB (limiter on)
(min gain with limiter on)
(max gain with limiter on)
(limiter off)
(limiter on)
DXA-FX
Operating Instructions for the DXA-FX Adapter

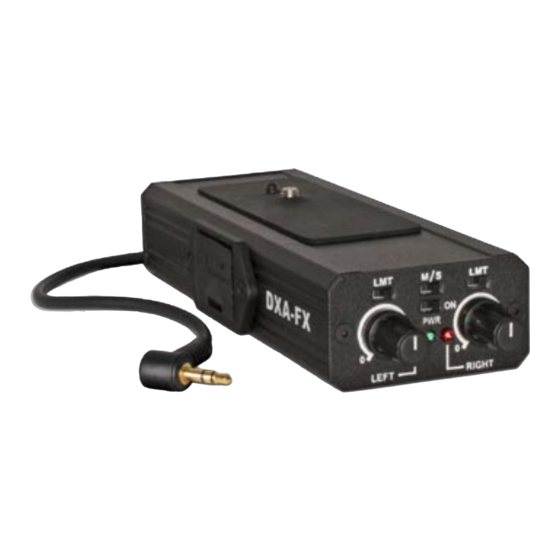

The BeachTek DXA-FX is a two channel, battery-powered micro-
phone adapter with built in preamplifiers and limiters specifically de-
signed for the Sony HDR-FX1 camcorder. This adapter is designed
to easily attach balanced or unbalanced type microphones to this
camcorder (condenser type microphones require their own power
as the adapter does not supply phantom power). The low noise
preamplifiers boost the audio level from virtually any microphone to
the "sweet spot" for improved signal to noise ratio. The fast acting
limiters virtually eliminate distortion from overly hot inputs.
The DXA-FX is very easy to set up and use, therefore it requires
a minimal amount of fuss. It fits ideally under the Sony HDR-FX1
camcorder and its rugged construction ensures years of use.
• Before using this high quality device, please read this
operating manual thoroughly to obtain the highest performance.
• Please contact us if you have any problems or questions.
