KITCHEN KIT DOCU0089 Manual

Fittings
Leg Boss Adjustable leg
x 4
Plinth Clip
x 2
N 15mm Screws
x 20
Assembly
1
We recommend using PVA glue
for additional bond
- Simply run a bead of glue along
each joint line during the
assembly process
4
Slide back panel (C) into place
C
BA02 - 12M
A
B
C
x 4
D
E
Circular Leg CLip
x 2
Please Note - Drawer boxes are in a seperate pack due to weight
B
A
Carefully align front edges
5
Locate end panel (A) into position - When
all joints and grooves are aligned correctly,
tap together using a rubber mallet
End Panel x 2
Top/Bottom Panel x 2
Back Panel x 1
Top Drawer Front x 1
Pan Drawer Front x 2
D
E
E
2
Tilt the Top/Bottom Panel (B)
into position – ensure both
grooves are aligned
A
A

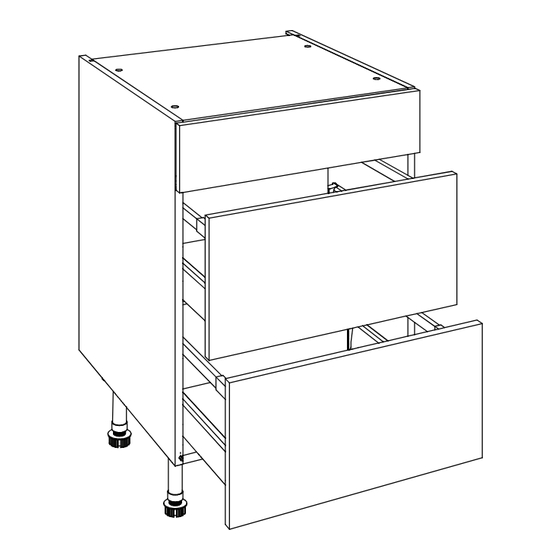

3 Drawer Base Unit
B
C
A
B
3
Fit second Panel (B).
B
B
6
Push Leg Boss into place with the
overhang over the End Panels (A).
Once in position tap the centre dowel
with a soft rubber mallet to secure.
A
A
DOCU0089
A
B
A
A
Centre
Dowel
