Fittings
Adjustable Leg
Leg Boss
x 4
Plinth Clip
Circular Leg Clip
x 2
N 15mm Screw
x 4
Assembly
1
Carefully align
front edges
3
"CLICK"
B
A
BA02 - 12J

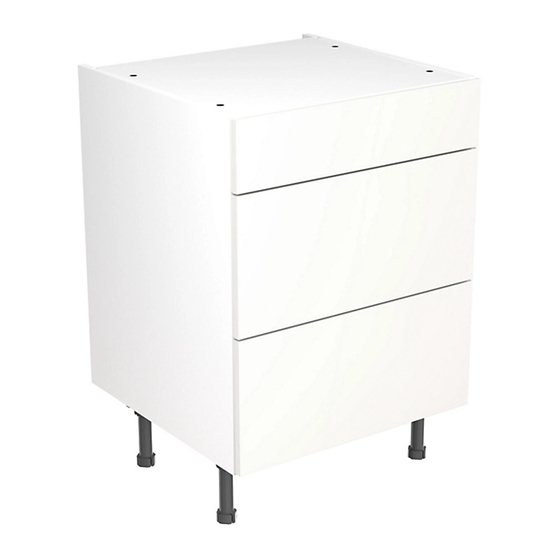

3 Drawer Base Cabinet Instructions
A
B
C
x 4
E
F
x 2
B
A
4
Slide back panel into place
B
Base End Panel
Top/Bottom Panel
Back Panel
Drawer Front (283mm height)
Drawer Front (140mm height)
F
E
E
Please note - drawer boxes are packed separately
We recommend using PVA
glue for an additional bond -
simply run a bead of glue
along each joint line
during assembly
C
DOCU0040
B
C
A
B
2
Lock B panels into
side panel A
A
5
Press end panel A into top/bottom
panels B and gently tap with a
mallett
A
A
"CLICK"
"CLICK"
Advertisement
Related Manuals for KITCHEN KIT DOCU0040
Summary of Contents for KITCHEN KIT DOCU0040
- Page 1 3 Drawer Base Cabinet Instructions DOCU0040 Fittings Adjustable Leg Base End Panel Top/Bottom Panel Leg Boss Back Panel Drawer Front (283mm height) Drawer Front (140mm height) Plinth Clip Circular Leg Clip N 15mm Screw Please note - drawer boxes are packed separately...
- Page 2 Gently tap leg boss into place Insert adjustable legs into leg boss Once assembled, measure and adjust feet to 150mm Attach plinth clip to Slide leg clip into plate plinth Begin assembling drawer runners Fix plinth into place and drawer boxes (see drawer instruction leaflet).
