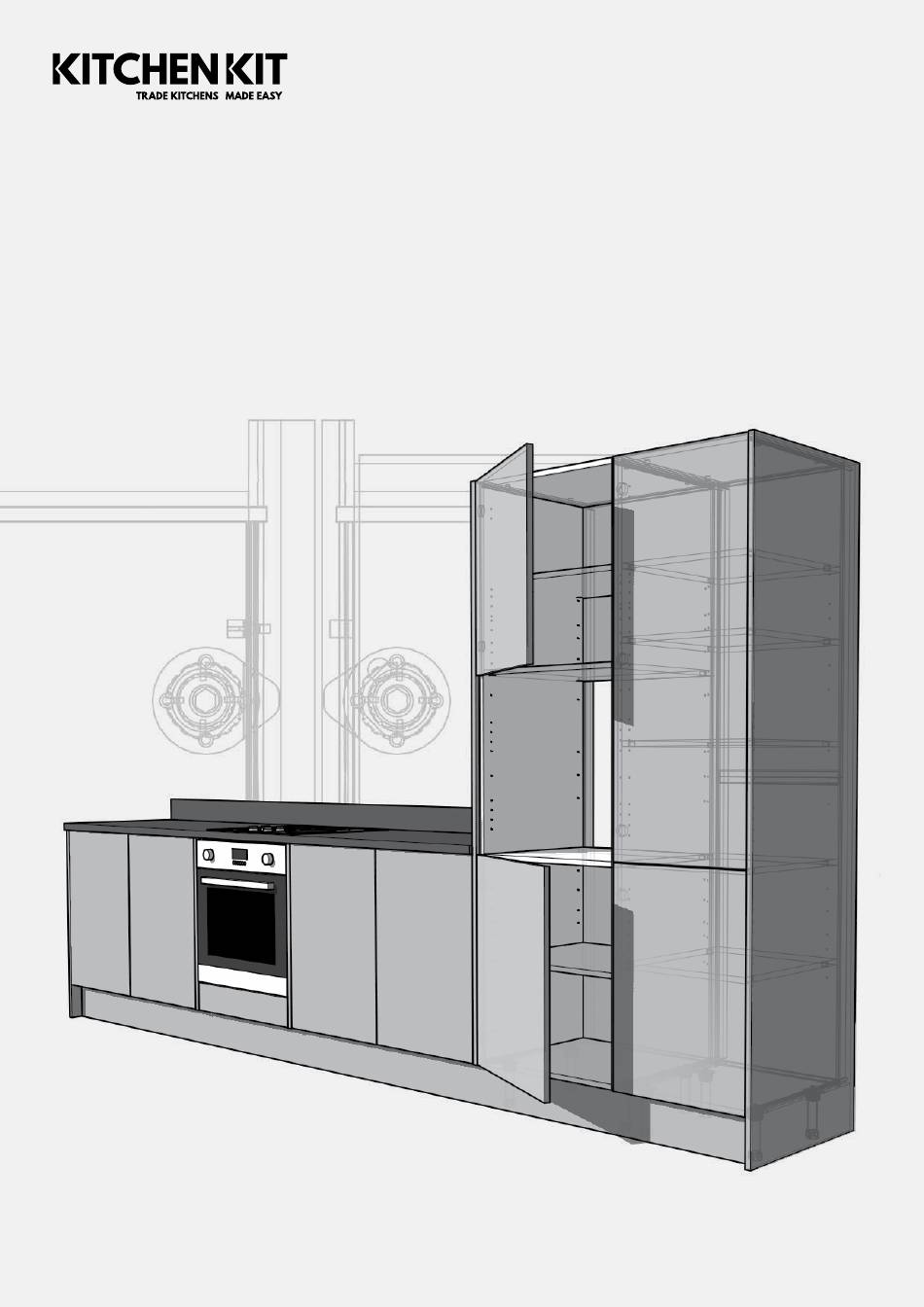

- Page 1 Tower Cabinets Installation Guide kitchenkit.co.uk Quick Build Cabinets. BA20-80A / 01.2021...
- Page 2 Introduction This guide is intended as a supplement to the assembly instructions supplied with individual cabinets. Due to the large variety of door and appliance configurations, a small number of modifications may be needed during installation as shown below. This avoids the need for multiple drillings to the cabinet, which looks unsightly – and may only be needed on rare occasions.
-
Page 3: Table Of Contents
Contents Introduction ........................................ i Contents ........................................ii Kitchen Units Larder Units 600 Larder Cabinet ..................................1 Integrated Cooking 600 Single Oven Housing ................................2 600 Double Oven Housing ...............................3 600 Oven plus Microwave Housing .............................4 Integrated Cooling 600 Fridge & Freezer Housing ..............................5 Appendix Fixing Cabinets to the wall .............................. -
Page 4: 600 Larder Cabinet
600 Larder Cabinet Fascias Cabinet Back Panels 1245 Door Large Back Panel Fixed Shelf Adjustable Shelf 'H' Section Fixed Shelf 715 Door Fixed Shelf Large Back Panel... -
Page 5: 600 Single Oven Housing
600 Single Oven Housing Fascias Cabinet Back Panels 645 Door Large Back Panel Cut height of the large back panels to the sizes shown – screw fix to the rear edge of the fixed shelf Adjustable Shelf Fixed Shelf Fixed Shelf 715 Door Fixed Shelf (Position at desired height) -
Page 6: 600 Double Oven Housing
600 Double Oven Housing Fascias Cabinet Back Panels 490 Door Large Back Panel Cut height of the large back panels to the sizes shown – screw fix to the rear edge of the fixed shelf Fixed Shelf Fixed Shelf 570 Door Adjustable Shelf Large Back Panel... -
Page 7: 600 Oven Plus Microwave Housing
600 Oven plus Microwave Housing Fascias Cabinet Back Panels 450 Door Large Back Panel 98 mm Cut height of the large back panels to the sizes shown – screw fix to the rear edge of the fixed shelf 114 mm Fixed Shelf Fixed Shelf Position this fixed shelf... -
Page 8: 600 Fridge & Freezer Housing
600 Fridge & Freezer Housing Fascias Cabinet Back Panels 1245 Door No Back Panel used, please discard ALL back panel components supplied. We recommend fitting two of the surplus fixed shelves at the rear edge of the cabinet (vertically) to give it rigidity and stability during installation 715 Door... -
Page 9: Appendix
Appendix ! Fixing cabinets to the wall Please ensure the cabinet is fixed securely to the wall and also to the adjacent cabinets. • For 600 wide appliance housing units, this can be done using metal angle brackets or appropriate fixings (not supplied) behind the appliance, before it is slid into position. •...
