Fittings
Shelf Stud
x 8
Hinge Mounting
Plate
x 2
LH x 1
Standard
Hinge
RH x 1
x 2
Wall Plate
x 1
N 15mm
Screws
x 4

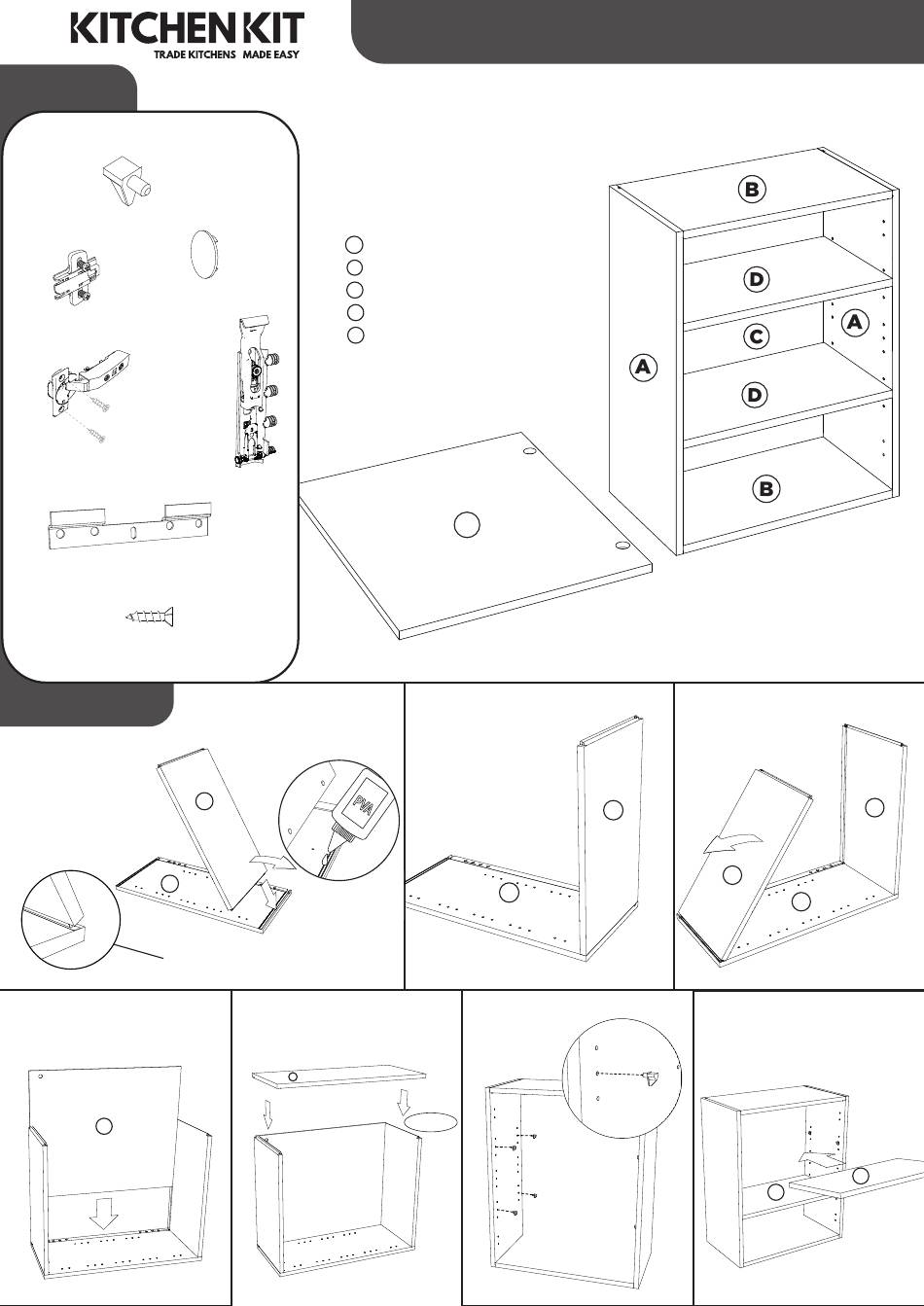

Assembly
1
A
Carefully align
front edges
4
Slide back panel
into place
C
Cover Gap
A
x 2
B
C
Cabinet Hanger
D
E
We recommend using PVA
glue for an additional bond -
simply run a bead of glue
along each joint line
during assembly
B
5
5
Press end panel A into
top/bottom panels B
and gently tap with a
mallet
A
Single Wall Cabinet Instructions
Single Wall Cabinet Instructions
Wall End Panel
Top/Bottom Panel
Back Panel
Shelf
Door
E
2
A
6
Insert shelf
studs
"CLICK"
3
B
B
7
Slide shelf D into
position
D
B
A
D
