Fittings
N 15mm Screws
x 48
P 17mm screw for
Drawer Front xing
x 12
A
Drawer Runner (Pair) x 3
B
Drawer Side (Pair) x 3
C
Front Fixing Bracket x 6
D
Top Drawer Back Panel x 1
E
Pan Drawer Back Panel x 2
F
Corner Back Bracket LH & RH – 3 pairs
G
Drawer Base x 3
H
Gallery Rail x 4
I
Back Panel Clip for Gallery Rail x 4
J
Front Clip for Gallery Rail x 4
K
Side Cover Cap x 6
Assembly
Using Screws (N) attach the two Corner
Back Brackets (F) to Top Drawer Back Panel
1
(D) and Pan Drawer Back Panel (E) x 2.
D
F
4
Turn the drawers over and x
base using 15 mm screws (N)
BA02 - 11J
A
C
Top Drawer x 1
(assembled)
F
33
19
E
F
5
Using 17 mm Screws (P) attach the two Front Fixing Brackets (C)
to the Top Drawer Front and Pan Drawer Front x 2.
C
32
50

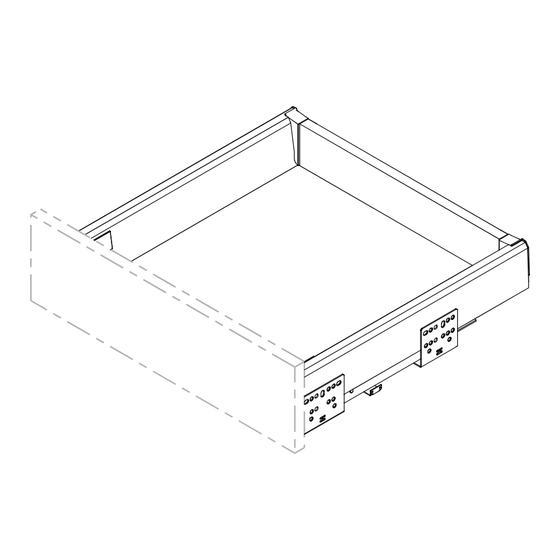

Drawer Box Assembly & Installation
F
B
D
G
K
2
Slide Drawer Back Panel
(D) or (E) between two
Drawer Sides (B) x 3 pairs.
F
B
33
NOTE: each bracket (C)
has the word "Outside"
32
71
stamped on it, Make sure
this is facing outwards.
H
J
F
B
A
Pan Drawer x 2
(assembled)
3
Slide the Drawer Base (G)
into position.
E
D
B
6
50 mm
DOCU0090
I
E
G
Push Drawer Front into
Drawer Sides (B), as shown,
so Brackets (C) click into
position.
C
"CLICK"
B
B
"CLICK"
Advertisement
Related Manuals for KITCHEN KIT DOCU0090
Summary of Contents for KITCHEN KIT DOCU0090
- Page 1 Drawer Box Assembly & Installation DOCU0090 Fittings N 15mm Screws x 48 P 17mm screw for Drawer Front xing x 12 Drawer Runner (Pair) x 3 Drawer Side (Pair) x 3 Front Fixing Bracket x 6 Top Drawer Back Panel x 1 Pan Drawer Back Panel x 2 Corner Back Bracket LH &...
- Page 2 Attach Front Clip for Gallery Rail (J) to Attach Back Panel Clip for Gallery Rail Attach Gallery Rails (H) to Pan Drawer rear of the Pan Drawer Front using 15 (I) to rear of the Pan Drawer Back Box as shown. Slide plastic housing to mm Screws (N) Panels (E) using 15 mm Screws (N) cover Plastic Clip*.
