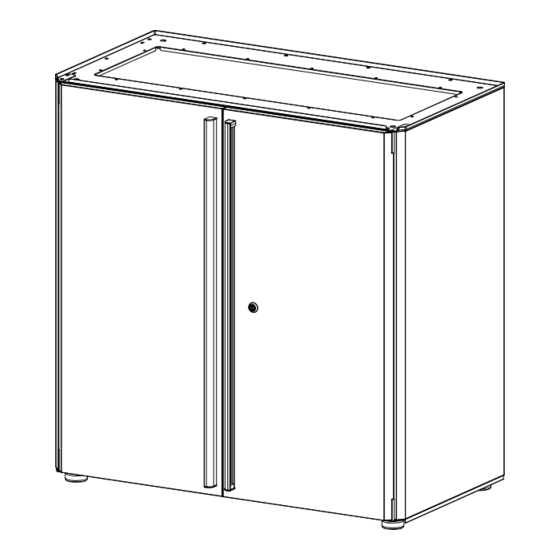

TRINITY 36" Garage Modular Cabinet
Model # TLSPBK-0605
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLSPBK-0605 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trinity TLSPBK-0605

  • Page 1 OWNER’S MANUAL TRINITY 36” Garage Modular Cabinet Model # TLSPBK-0605 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D...
  • Page 2: Parts List

    Your TRINITY 36” Garage Modular Cabinet should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via “Contact Us”...
  • Page 3 Follow the order indicated, insert (12) BLACK SCREWS (L) through holes on BOTTOM PANEL (C) and tighten fully with a Phillips screwdriver. Insert (4) BLACK SCREWS (L) through tabs on front of CABINET BODY (A) and tighten fully to BOTTOM PANEL (C). © 2020 TRINITY - 800.985.5506...
  • Page 4 Follow the order indicated, insert (8) BLACK SCREWS (L) through holes on TOP PANEL (B) and tighten fully with a Phillips screwdriver. Insert (4) BLACK SCREWS (L) through tabs on front of CABINET BODY (A) and tighten fully to TOP PANEL (B). © 2020 TRINITY - 800.985.5506...
  • Page 5 SHELF SUPPORTS (I) are at the same level. Tilt SHELF (H) diagonally to move it inside cabinet. Place SHELF (H) on top of all four SHELF SUPPORTS (I). Shelf supports hooked on position tabs © 2020 TRINITY - 800.985.5506...
  • Page 6: Usage Instructions

    Insert key into lock on right door. Turn it clockwise 90 degree to lock the door. Turn it counter-clockwise 90 degree to unlock the door. Before locking the unit, make sure doors are fully closed. Green indicates unlocked Red indicates locked © 2020 TRINITY - 800.985.5506...
  • Page 7: Stacking Cabinets

    Drill holes in marked locations. Insert a ANCHOR (N) completely into each drilled hole. Fasten MOUNTING SCREWS (M) through holes on cabinet onto wall or anchors tightly by a screwdriver. © 2020 TRINITY - 800.985.5506...
  • Page 8 SERVICE PARTS LIST – TLSPBK-0605 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description PBK-16-004-3618 Top Panel XBK-10-001-0XXX PBK-18-018-3618 Cabinet Body 10) XWH-98-001-4264 Feet Leveler PBK-09-011-0001 Right Door Hinge 11) PBK-08-007-1736 Left Door Right Door...
  • Page 9: Care And Maintenance

    6. Do NOT stack more than two cabinets together. CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals. • Do not use scouring pad for cleaning. • This item is not certified for outdoor use. © 2020 TRINITY - 800.985.5506...
  • Page 10: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY 36” Garage Modular Cabinet. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.
  • Page 11: Year Limited Warranty

    Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.
  • Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 5:00 AM –...
