1.4 Clutch Paddles Mounting and Adjustment
If you have purchased the clutches separately, you will now need to mount them on the back of
the wheel: do not worry, as you can easily mount them yourself!

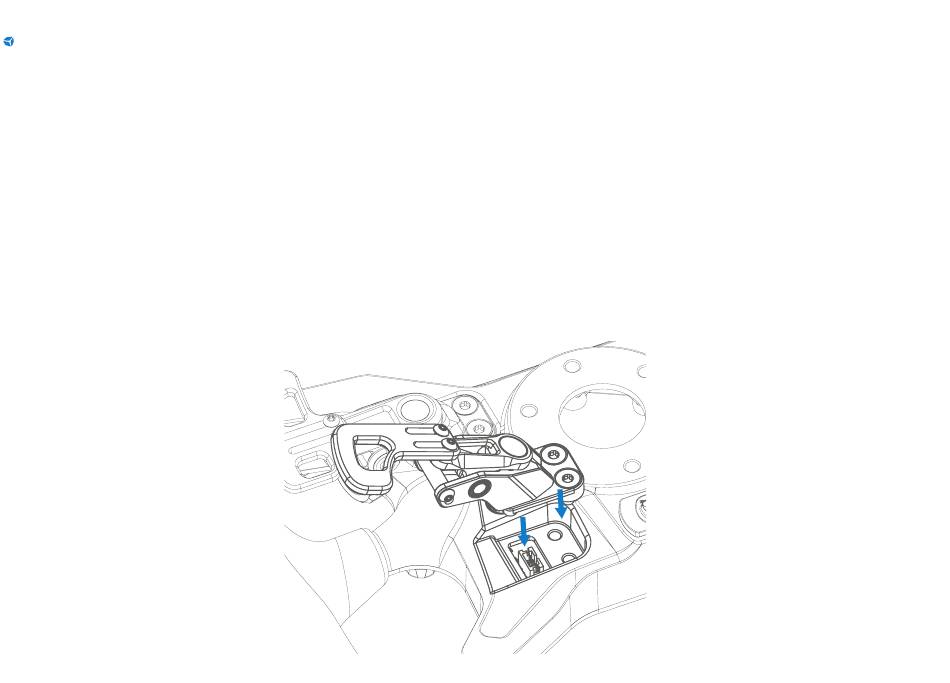

To do so, you will simply need to use an M4 key to free the covers that you will find on the
backplate. Inside, you will see a white connector to which you will need to connect the clutch
paddle. You can then insert the extra cable inside the backplate and tighten the extra paddles
using the same screws you removed at the start.
Then you can adjust the clutches to be more comfortable, exactly as your shifter paddles. Also
the spring resistance can be adjusted by turning the screw by using the provided TX10 Allen
Key (smallest L-shaped silver key) as indicated in the picture below:
