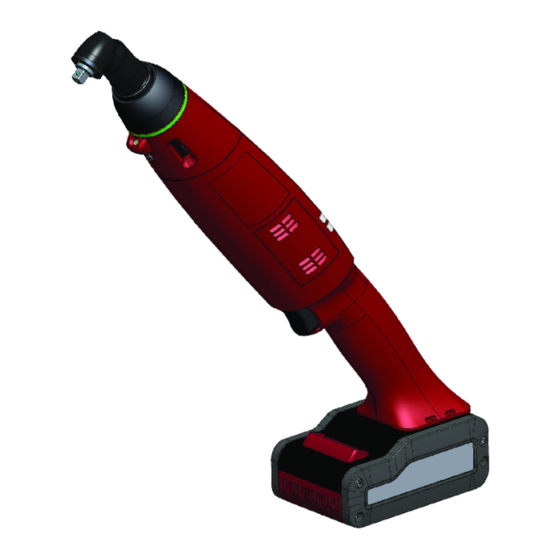

Desoutter Industrial Tools ELS7-360-A4S Product Instructions

Cordless angle screwdriver

Hide thumbs Also See for Industrial Tools ELS7-360-A4S:

Manual (109 pages)

User manual (150 pages)

User manual (131 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

Model

ELS7-360-A4S

ELS7-880-A

ELS7-880-A10S

ELS15-480-A

ELS15-480-A4S

ELS30-300-A

ELS45-180-A

ELS60-160-A

ELC7-360-A4S-W

ELC7-880-A-W

ELC15-480-A-W

ELC30-300-A-W

ELC45-180-A-W

ELC60-160-A-W

Download the latest version of this document at

http://www.desouttertools.com/info/6159929250_EN

Read all safety warnings and instructions

Failure to follow the safety warnings and instructions may result in

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference

Cordless Angle Screwdriver

Product Instructions

Part number

6151657250

6151656280

6151658880

6151656290

6151658390

6151656300

6151656310

6151656320

6151661040

6151661050

6151661060

6151661070

6151661080

6151661090

WARNING

Printed Matter No. 6159929250_EN

Issue No.

Date

11/2021

Page

1 / 32

Table of Contents

Need help?

Do you have a question about the Industrial Tools ELS7-360-A4S and is the answer not in the manual?

Questions and answers

Summary of Contents for Desoutter Industrial Tools ELS7-360-A4S

Page 1 Printed Matter No. 6159929250_EN Issue No. Date 11/2021 Page 1 / 32 Cordless Angle Screwdriver Product Instructions Model Part number ELS7-360-A4S 6151657250 ELS7-880-A 6151656280 ELS7-880-A10S 6151658880 ELS15-480-A 6151656290 ELS15-480-A4S 6151658390 ELS30-300-A 6151656300 ELS45-180-A 6151656310 ELS60-160-A 6151656320 ELC7-360-A4S-W 6151661040 ELC7-880-A-W 6151661050 ELC15-480-A-W 6151661060 ELC30-300-A-W...
Page 2: Table Of Contents
Table of Contents Product Information .......................... 4 General Information......................... 4 Warranty.......................... 4 Website .......................... 4 Information about spare parts .................... 4 Dimensions .......................... 4 CAD files .......................... 5 Overview ............................ 5 General overview ......................... 5 Product description ...................... 6 Technical data........................ 6 Accessories.......................... 9 Default tool Ethernet configuration.................. 10 WI-FI settings ........................ 10 Installation............................ 13 Installation Instructions........................ 13 Inserting the battery pack.................... 13 Changing the angle head orientation ................. 13...
Page 3 Blue LED behaviour ...................... 25 Red LED behaviour...................... 25 Specific LED pattern ...................... 25 List of user infos related to the tools.................... 25 11/2021 3 / 32...
Page 4: Product Information
• The product warranty relies on the correct use, maintenance, and repair of the tool and its component parts. • Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Desoutter or their Certified Service Partners during the warranty period is not covered by the warranty.
Page 5: Cad Files
Overview General overview ELS tools are cordless angle-head screwdrivers. They are hand-held by the operator and powered by a Desoutter battery pack. Tools are delivered with 1 Pset. The torque can be adjusted manually on the tool. The speed can be adjusted by using: •...
Page 6: Product Description
Product Information Product description Output drive Trigger Reporting LEDs Reverse button Battery footprint Identification ring Technical data Input voltage Model ELS 7-360-A4S ELS 7-880-A ELS 7-880-A10S ELS 15-480-A ELS 15-480-A4S ELS 30-300-A ELS 45-180-A ELS 60-160-A ELC 7-360-A4S-W ELC 7-880-A-W ELC 15-480-A-W ELC 30-300-A-W ELC 45-180-A-W...
Page 7 Product Information Model Type ELC 7-360-A4S-W Sq. 1/4" ELC 7-880-A-W Hex. 1/4" F ELC 15-480-A-W Sq. 3/8" ELC 30-300-A-W Sq. 3/8" ELC 45-180-A-W Sq. 3/8" ELC 60-160-A-W Sq. 1/2" Torque range (Nm) Model Min. / Max. ELS 7-360-A4S 1.5 / 7 ELS 7-880-A 1.5 / 7 ELS 7-880-A10S...
Page 8 Product Information Model ELS 30-300-A 100-300 ELS 45-180-A 50-180 ELS 60-160-A 50-160 ELC 7-360-A4S-W 150-360 ELC 7-880-A-W 400-880 ELC 15-480-A-W 200-480 ELC 30-300-A-W 100-300 ELC 45-180-A-W 50-180 ELC 60-160-A-W 40-160 Power consumption Model ELS 7-360-A4S ELS 7-880-A ELS 7-880-A10S ELS 15-480-A ELS 15-480-A4S ELS 30-300-A 1720...
Page 9: Accessories
Protective cover for angle-head 45 Nm - black 6155732150 Protective cover for angle-head 60 Nm - black 6152110050 WIFI Access point A WI-FI access point is required to enable cordless tools to communicate with systems. Desoutter models are as follows: 11/2021 9 / 32...
Page 10: Default Tool Ethernet Configuration
6158116505 There are no instructions in this manual about how to install a WI-FI access point. If you are not familiar with this type of installation, we recommend you to contact your Desoutter representative. Required accessories Battery pack 18 V 2.5 Ah 6158132660 Battery pack 36 V 2.5 Ah...
Page 11 Product Information Item Desoutter default parameter Other possible values Data rate 54 Mbit 1 Mbit 2 Mbit 5.5 Mbit 6 Mbit 9 Mbit 11 Mbit 12 Mbit 18 Mbit 24 Mbit 36 Mbit 48 Mbit 13 Mbit (MCS1) 19.5 Mbit (MCS2)
Page 12 Product Information Radio ETSI TELEC Channel band North America Europe Japan Worldwide U-NII-2 U-NII-2 Ext U-NII-3 12 / 32 11/2021...
Page 13: Installation
Installation Installation Installation Instructions Inserting the battery pack Insert the battery pack in front or behind the tool until a locking sound can be clearly heard. There is no ON/OFF switch: the tool is ready to operate as soon as a battery pack is mounted. When the tool is powered on, tool LEDs are blinking.
Page 14: How To Connect The Tool To Speed Setting Module
Installation How to connect the tool to Speed Setting Module How to connect ELC tools to CVIMONITOR Keep the trigger pressed. Plug the battery pack. The LED is blinking green. Plug the eDOCK to the tool. Connect the eDOCK cable to any USB port of the computer. Launch CVIMONITOR from the computer.
Page 15: Operation
Operation Operation Configuration Instructions How to configure the tool How to disable/enable the buzzer Adjusting the torque A black cover protects the clutch mechanism from involuntary action. Remove the battery pack. 11/2021 15 / 32...
Page 16 Operation Turn the screw 90°, the black cover will open and the clutch will be visible. Use the key (delivered in the packaging box) to turn the clutch to the position where the adjustment hole is visi- ble. Use the key to increase or reduce the torque ("+" and "-" are marked on the key). Close the cover.
Page 17 Operation When settings are done, remove the Speed Setting Module. Unplug and plug the battery pack. Specific speed settings according to the battery pack voltage For an 18 V tool, the rundown speed and tightening adjustment range is up to 100% of the maximum speed. Speed Number of revolutions Rundown speed...
Page 18: How To Change Network Parameters
Operation Speed Number of revolutions 50 % of max. speed Rundown speed Final speed Adjusting the speed with CVI CONFIG (for ELC tools) Use CVI CONFIG to adjust the tool speeds. How to set up the reverse mode L1: Mode 1: one touch reverse (by default) L2: Mode 2: permanent reverse How to disable NOK reports This feature is available in E-LIT CONFIG for ELS tools.
Page 19: Operating Instructions
Operation Click this icon to write the new parameters into the tool. Operating Instructions How to use the tool Changing bits The new bit is automatically locked when you release the ring. Starting the tool Fit the tool with a suitable bit. Hold the tool by means of the handle and apply to the fastener to be tightened.
Page 20 Operation How to reverse the rotation Low battery status after each tightening Rehit alarm This feature is used to prevent the operator from re-tightening the assembly. It can be set up by using E-LIT CONFIG for ELS tools and CVI CONFIG for ELC tools. 20 / 32 11/2021...
Page 21: How To Wake Up The Tool
Operation The assembly has been tightened already and the report is OK. When the operator wants to tighten again, the clutch immediately operates and there is no significant tightening angle. The LED is flashing in red during 2 seconds and a sound is emitted. Cross thread detection alarm Available for ELC tools only.
Page 22: Service
Service Service How to read tool counters with Speed Setting Module Connect the tool to Speed Setting Module. Plug the battery pack. Use the buttons "+" and "-" to scroll the menus. K stands for 1000. For example: 12K5 means 12500. M stands for 1.000.000.
Page 23: Tool Identification With Cvimonitor
It is recommended to lubricate the clutch and the gearbox every 500,000 tightenings for 18 V tools and 250,000 tightenings for 36 V tools. When lubrication is required, the buzzer sends an alarm and the reporting LED blinks in orange. Contact your Desoutter representative to get more information and support. Advanced tool maintenance with ACCESS KEY Launch CVIMONITOR.
Page 24: Troubleshooting
Troubleshooting Troubleshooting Low battery alarm LED behaviour Backup alarms Description Solution At start-up, after switch-off of the white Backup configuration has been restored. The tool can be used without any re- LED, the LED flashes 3 times in red. striction. At start-up, after switch-off of the white Main configuration has been restored Check the speed of the tool.
Page 25 Troubleshooting Blue LED behaviour Description Solution The communication is lost or not estab- In case of not established communica- lished. tion, check the WI-FI settings of the tool and CONNECT. flashing The synchronisation is in progress. CONNECT is currently receiving results from ELC tools.
Page 26 1- The tool tightening counter has been reached. I038 Tool logs 1- Unexpected tool software exception. 2- Log file has been generated by the tool. 3- Contact your Desoutter representative for support. I046 Abnormal battery current 1- Abnormal battery current consumption. Check the Pset settings.
Page 27 1- Battery type not allowed. 2- Replace the battery pack or your configuration. E223 Drive init error 1- Software failure. 2- Restart the system. 3- If the problem occurs again, contact your Desoutter representative for support. 11/2021 27 / 32...
Page 28 E227 Motor stalled 1- Motor stalled (could be missing phase, wrong motor tune or power electronics failure) 2- Try once again. 3- If the problem occurs again, contact your Desoutter representative for support. E228 Drive error 1- Software failure. 2- Restart the system.
Page 32 Original instructions Founded in 1914 and headquartered in France, Desoutter Industrial Tools is a global leader in electric and pneumatic assembly tools serving a wide range of assembly and manufacturing operations, including Aerospace, Automotive, Light and Heavy Vehicles, Off-Road, General Industry.
