Cordless Pistol Screwdriver
Product Instructions
Part number
6151654150
6151654400
6151654160
6151654170
6151654180
6151661000
6151661010
6151661020
6151661030
6151654190
6151654200
6151656050
6151658250
6151654210
6151658260
6151654220
WARNING
Printed Matter No. 6159929240_EN
Issue No.
01
Date
09/2020
Page
1 / 28
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Desoutter ELB2.5-1250-P
Summary of Contents for Desoutter ELB2.5-1250-P
- Page 1 Printed Matter No. 6159929240_EN Issue No. Date 09/2020 Page 1 / 28 Cordless Pistol Screwdriver Product Instructions Model Part number ELB2.5-1250-P 6151654150 ELB6-670-P 6151654400 ELB6-900-P 6151654160 ELB8-670-P 6151654170 ELB12-600-P 6151654180 ELC6-1000-P-W 6151661000 ELC8-400-P-W 6151661010 ELC8-800-P-W 6151661020 ELC12-600-P-W 6151661030 ELS2.5-1550-P 6151654190...
-
Page 2: Table Of Contents
Table of Contents Product Information .......................... 4 General Information......................... 4 Warranty.......................... 4 Website .......................... 4 Information about spare parts .................... 4 Dimensions .......................... 4 CAD files .......................... 5 Overview ............................ 5 General overview ......................... 5 Product description ...................... 6 Technical data........................ 6 Accessories.......................... 9 Default tool Ethernet configuration.................. 10 WI-FI settings ........................ 10 Installation............................ 12 Installation Instructions........................ 12 Inserting the battery pack.................... 12 How to connect the tool to Speed Setting Module ............. 12... - Page 3 Red LED behaviour...................... 24 Specific LED pattern ...................... 24 List of user infos related to the tools.................... 24 09/2020 3 / 28...
-
Page 4: Product Information
• The product warranty relies on the correct use, maintenance, and repair of the tool and its component parts. • Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Desoutter or their Certified Service Partners during the warranty period is not covered by the warranty. -
Page 5: Cad Files

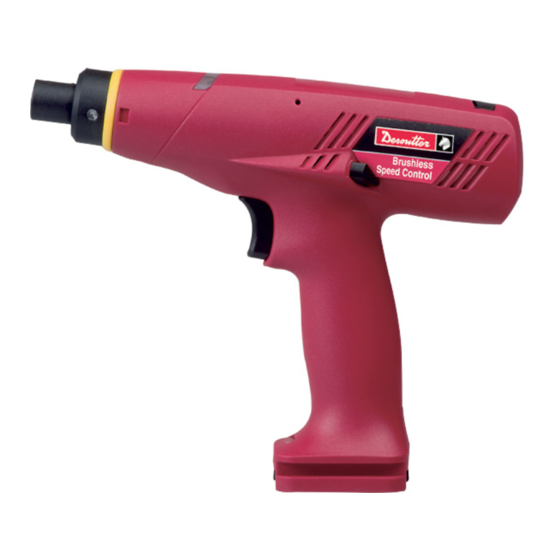

Overview General overview ELB tools are cordless pistol screwdrivers. They are hand-held by the operator and powered by a Desoutter battery pack. Tools are delivered with 1 Pset. The torque can be adjusted manually on the tool. Tool LEDs give a visual feedback of the tightening report and of the tool status. -
Page 6: Product Description
Product Information Product description Output drive Trigger Reporting LEDs Reverse button Battery footprint Identification ring ELC models Blue LED Technical data Voltage (V) 18 V Power consumption Model ELB2.5-1250-P ELB6-670-P ELB6-900-P ELB8-670-P ELB12-600-P ELC6-1000-P-W ELC8-400-P-W ELC8-800-P-W 6 / 28 09/2020... - Page 7 Product Information Model ELC12-600-P-W ELS2.5-1550-P ELS6-1000-P ELS8-400-P ELS8-400-P4S ELS8-800-P ELS12-400-P4S ELS12-600-P Output drive Model Type ELB2.5-1250-P Hex. 1/4" F ELB6-670-P Hex. 1/4" F ELB6-900-P Hex. 1/4" F ELB8-670-P Hex. 1/4" F ELB12-600-P Hex. 1/4" F ELC6-1000-P-W Hex. 1/4" F ELC8-400-P-W Hex.
- Page 8 Product Information Torque range (in.lb) Model Min. / Max. ELB2.5-1250-P 3.5 / 22.0 ELB6-670-P 7.1 / 53.0 ELB6-900-P 7.1 / 53.0 ELB8-670-P 13.3 / 70.0 ELB12-600-P 26.5 / 106.0 ELC6-1000-P-W 7.1 / 53.0 ELC8-400-P-W 13.3 / 70.0 ELC8-800-P-W 13.3 / 70.0 ELC12-600-P-W 26.5 / 106.0...
-
Page 9: Accessories
6158116505 There are no instructions in this manual about how to install a WI-FI access point. If you are not familiar with this type of installation, we recommend you to contact your Desoutter representative. Required accessories Battery pack 18 V 2.5 Ah 6158132660 Battery pack 36 V 2.5 Ah... -
Page 10: Default Tool Ethernet Configuration
Product Information Battery pack charger 6158132700 Default tool Ethernet configuration Item Desoutter default parameter Other possible values Allocation method for IP address Static Keep original IP address DHCP IP address 192.168.5.221 Refer to local settings Subnet mask 255.255.255.0 Refer to local settings Gateway 127.0.0.1... - Page 11 Product Information 2.4 GHz authorized channel list per regulatory domain ETSI TELEC Channel America Europe Japan Worldwide 5 GHz authorized channel list per regulatory domain Radio ETSI TELEC Channel band North America Europe Japan Worldwide U-NII-1 U-NII-2 U-NII-2 Ext U-NII-3 09/2020 11 / 28...
-
Page 12: Installation
Installation Installation Installation Instructions Inserting the battery pack Insert the battery pack in front or behind the tool until a locking sound can be clearly heard. There is no ON/OFF switch: the tool is ready to operate as soon as a battery pack is mounted. When the tool is powered on, tool LEDs are blinking. -
Page 13: How To Install Optional Accessories
Installation Keep the trigger pressed. Plug the battery pack. The LED is blinking green. Plug the eDOCK to the tool. Connect the eDOCK cable to any USB port of the computer. Launch CVIMONITOR from the computer. Click E-LIT WIFI in the top bar. Click Select to select the tool. -
Page 14: Operation
Operation Operation Configuration Instructions How to configure the tool How to disable/enable the buzzer Adjusting the torque A black cover protects the clutch mechanism from involuntary action. Remove the battery pack. 14 / 28 09/2020... - Page 15 Operation Turn the screw 90°, the black cover will open and the clutch will be visible. Use the key (delivered in the packaging box) to turn the clutch to the position where the adjustment hole is visi- ble. Use the key to increase or reduce the torque ("+" and "-" are marked on the key). Close the cover.
- Page 16 Operation Rundown turns When settings are done, remove the Speed Setting Module. Unplug and plug the battery pack. Specific speed settings The rundown speed and tightening adjustment range is up to 100% of the maximum speed. Speed Number of revolutions 16 / 28 09/2020...
-
Page 17: How To Change Network Parameters
Operation Rundown speed Final speed Adjusting the speed with CVI CONFIG (for ELC tools) Use CVI CONFIG to adjust the tool speeds. How to set up the reverse mode L1: Mode 1: one touch reverse (by default) L2: Mode 2: permanent reverse How to disable NOK reports This feature is available in E-LIT CONFIG for ELS tools. -
Page 18: Operating Instructions
Operation Operating Instructions How to use the tool Changing bits The new bit is automatically locked when you release the ring. Starting the tool Fit the tool with a suitable bit. Hold the tool by means of the handle and apply to the fastener to be tightened. WARNING Risk Of Injury As the reaction force increases in proportion to the tightening torque, there is a risk of severe bodily injury of the operator as a result of unexpected behavior of the tool. - Page 19 Operation How to reverse the rotation Low battery status after each tightening Rehit alarm This feature is used to prevent the operator from re-tightening the assembly. It can be set up by using E-LIT CONFIG for ELS tools and CVI CONFIG for ELC tools. The assembly has been tightened already and the report is OK.
-
Page 20: How To Wake Up The Tool
Operation When the operator wants to tighten again, the clutch immediately operates and there is no significant tightening angle. The LED is flashing in red during 2 seconds and a sound is emitted. Cross thread detection alarm Available for ELC tools only. This feature is used to warn that a problem has occurred on the tightening. -
Page 21: Service
Service Service How to read tool counters with Speed Setting Module Connect the tool to Speed Setting Module. Plug the battery pack. Use the buttons "+" and "-" to scroll the menus. K stands for 1000. For example: 12K5 means 12500. M stands for 1.000.000. -
Page 22: Tool Counters And Maintenance Alert With Cvimonitor
It is recommended to lubricate the clutch and the gearbox every 500,000 tightenings. When lubrication is required, the buzzer sends an alarm and the reporting LED blinks in orange. Contact your Desoutter representative to get more information and support. Advanced tool maintenance with ACCESS KEY Launch CVIMONITOR. -
Page 23: Troubleshooting
Troubleshooting Troubleshooting Low battery alarm LED behaviour Backup alarms Description Solution At start-up, after switch-off of the white Backup configuration has been restored. The tool can be used without any re- LED, the LED flashes 3 times in red. striction. At start-up, after switch-off of the white Main configuration has been restored Check the speed of the tool. -
Page 24: Blue Led Behaviour
Troubleshooting Blue LED behaviour Description Solution The communication is lost or not estab- In case of not established communica- lished. tion, check the WI-FI settings of the tool and CONNECT. flashing The synchronisation is in progress. CONNECT is currently receiving results from ELC tools. - Page 25 1- The tool tightening counter has been reached. I038 Tool logs 1- Unexpected tool software exception. 2- Log file has been generated by the tool. 3- Contact your Desoutter representative for support. I046 Abnormal battery current 1- Abnormal battery current consumption. Check the Pset settings.
- Page 26 1- Battery type not allowed. 2- Replace the battery pack or your configuration. E223 Drive init error 1- Software failure. 2- Restart the system. 3- If the problem occurs again, contact your Desoutter representative for support. 26 / 28 09/2020...
- Page 27 E227 Motor stalled 1- Motor stalled (could be missing phase, wrong motor tune or power electronics failure) 2- Try once again. 3- If the problem occurs again, contact your Desoutter representative for support. E228 Drive error 1- Software failure. 2- Restart the system.
- Page 28 Original instructions Founded in 1914 and headquartered in France, Desoutter Industrial Tools is a global leader in electric and pneumatic assembly tools serving a wide range of assembly and manufacturing operations, including Aerospace, Automotive, Light and Heavy Vehicles, Off-Road, General Industry.
