Identify the Parts of the AutoPrinter

This section identifies the different parts of the AutoPrinter. For detailed information about the parts of the
Everest or Prism printer, refer the printer user guide that shipped with your product.

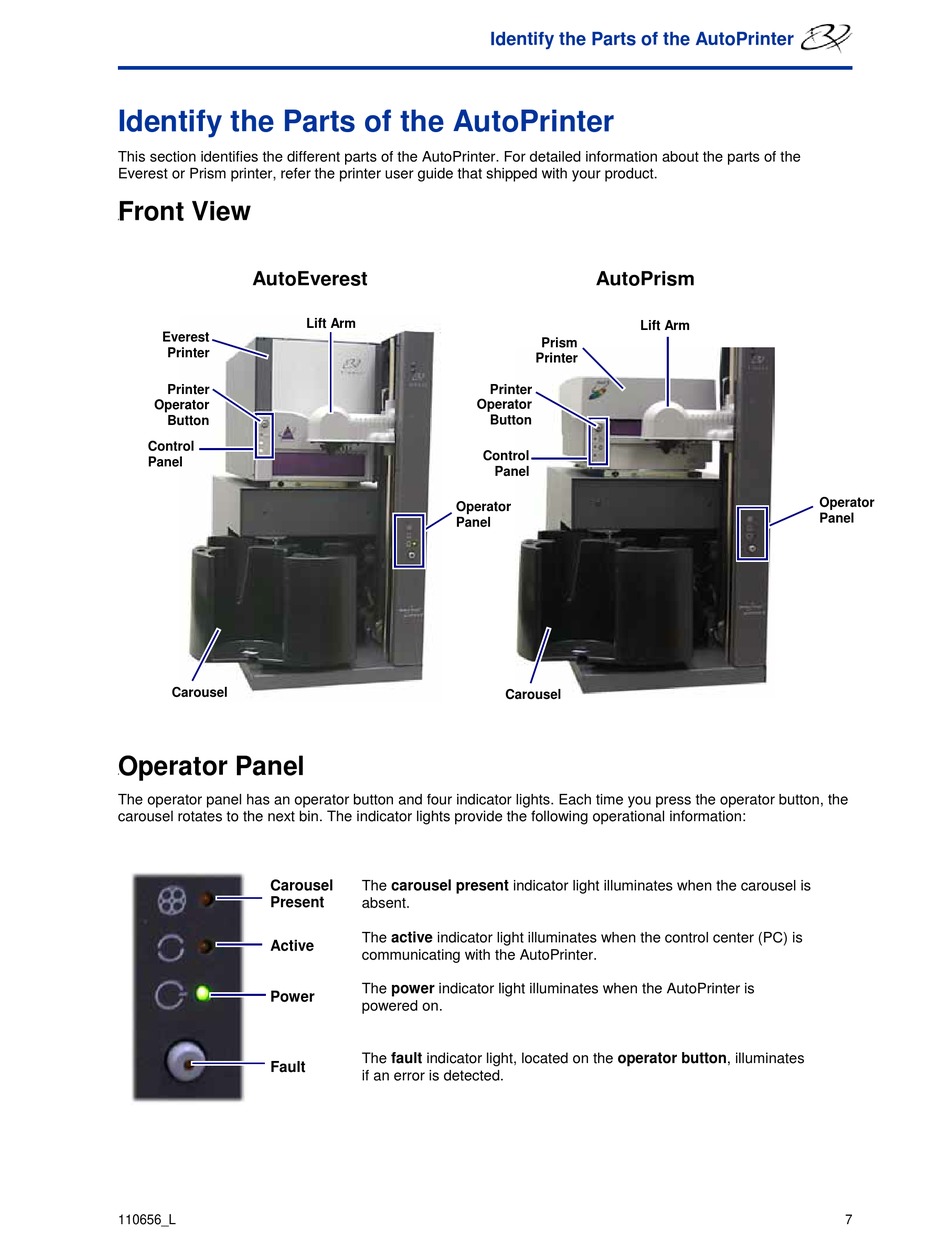

F ront View
1 0 B
AutoEverest
Everest
Printer
Printer
Operator
Button
Control
Panel
Carousel
O perator Panel
1 1 B
The operator panel has an operator button and four indicator lights. Each time you press the operator button, the
carousel rotates to the next bin. The indicator lights provide the following operational information:
Carousel
Present
Active
Power
Fault
110656_L
Lift Arm
Operator
Control
Operator
Panel
The carousel present indicator light illuminates when the carousel is
absent.
The active indicator light illuminates when the control center (PC) is
communicating with the AutoPrinter.
The power indicator light illuminates when the AutoPrinter is
powered on.
The fault indicator light, located on the operator button, illuminates
if an error is detected.
