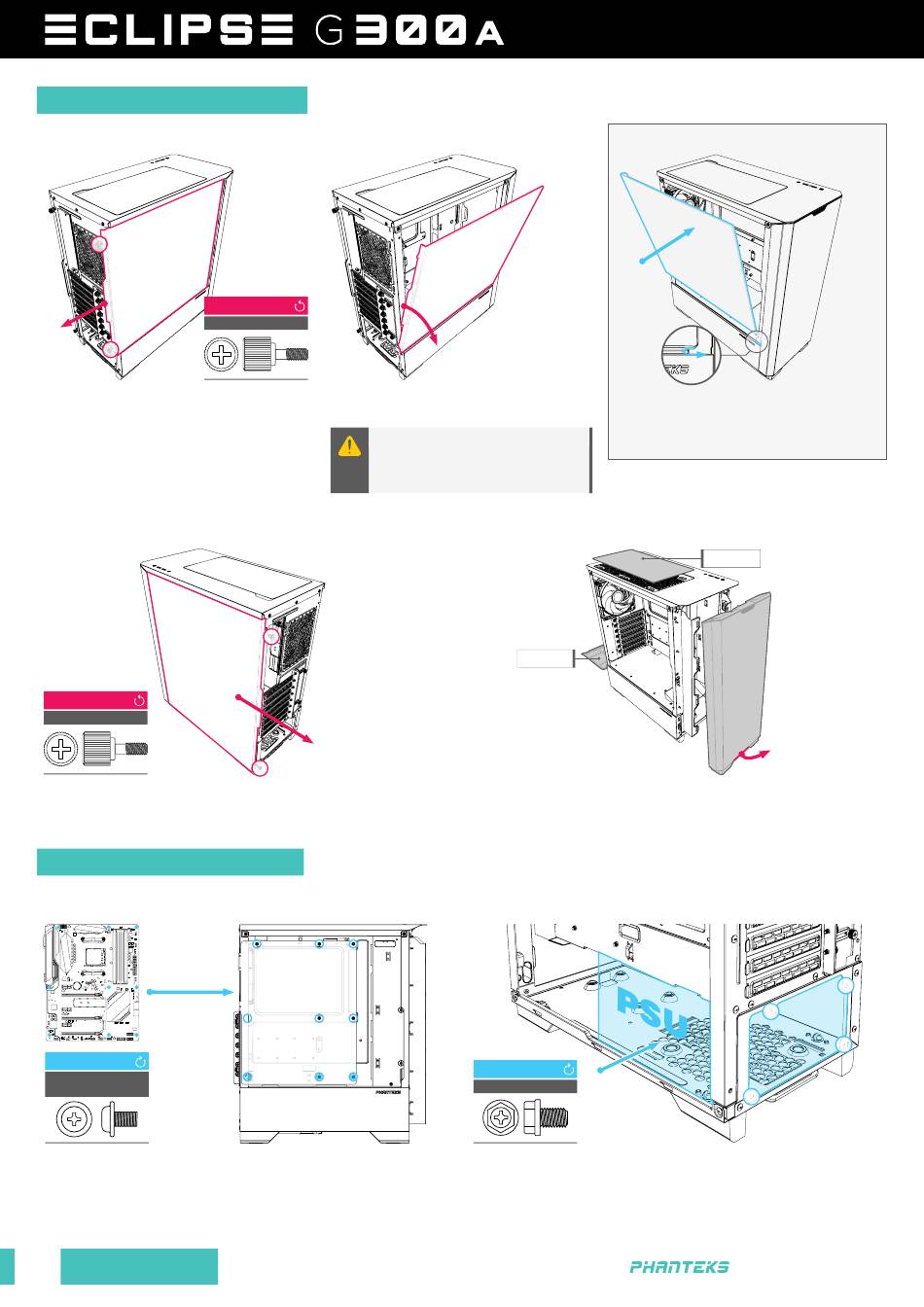

Phanteks ECLIPSE G300A Installation Manual page 2

REMOVE EXTERNAL PANELS
LEFT SIDE PANEL
Loosen the 2 thumb screws and slide to
remove the tempered glass side panel.
RIGHT SIDE PANEL
REMOVE
THUMBSCREW 2x
Loosen the 2 captive thumb screws and slide to remove the right
side panel.
HARDWARE INSTALLATION
MOTHERBOARD
INSTALL
MOTHERBOARD 9x
SCREWS
Install the ATX motherboard using 9x motherboard screws.
For M-ATX Motherboards follow the motherboard instructions to
move the stand-offs to the correct position.
02
INSTALLATION GUIDE
REMOVE
THUMBSCREW
2x
Remove the glass panel, set it aside in a
safe location to prevent damage.
CAUTION
Make sure to hold the side panel while
sliding it outwards to prevent any damage
when removing.
REINSTALL SIDE PANEL
When returning the left side panel, align
the bottom right with the slit in the chassis.
Slide the panel forward and secure with 2
thumb screws at the back.
FRONT PANEL & DUST FILTERS
PSU FILTER
Remove front panel by pulling the panel from below.
POWERSUPPLY
INSTALL
PSU SCREW
4x
Slide in the power supply from the side and secure it with the
4x PSU screws. It is recommended to connect all needed cables
beforehand.
TOP FILTER
| www.phanteks.com
