Summary of Contents for Welch Allyn SureTemp 679V
- Page 1 Thermo Menu Service Manual SureTemp Thermometer Model 679V - Veterinary Version Operating Operating Operating Operating Operating Instruction Instruction Instruction Instruction Instruction Manual Manual Manual Manual Manual...
- Page 2 Customer Service at (800) 854-2904. © 1997 by Welch Allyn, Inc. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, without prior consent in writing from Welch Allyn.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..............2 SAFETY & WARNINGS ............2 P ARTS ................3 WALL MOUNTING INSTRUCTIONS ........3 SETUP ................4 CHANGING PROBES ..............4 FEATURES ................4 DISPLA Y INDICATORS ............5 OPERA TION ................ 6 USING MONITOR MODE ............8 MAINTENANCE .............. -
Page 4: Introduction

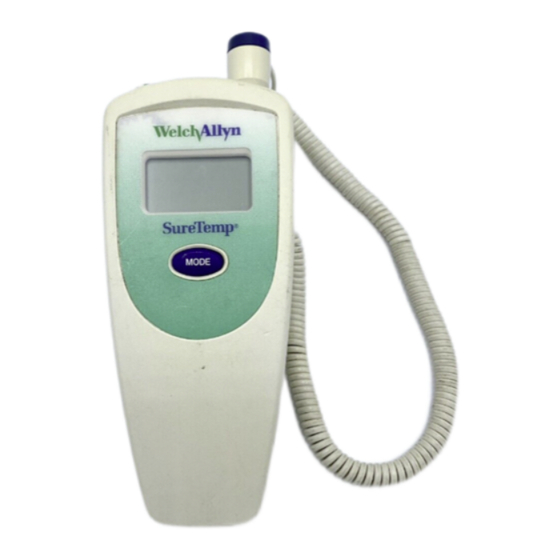

INTRODUCTION The Welch Allyn 679V SureTemp is a portable thermistor thermometer to be used for measuring patient temperatures ranging from 84°F to 108°F (28.9°C to 42.2°C). Rectal probes utilize single-use disposable probe covers which limit cross-contamination. Rectal temperatures are taken using Normal or Monitor operating modes. In the Normal mode, the thermometer’s microprocessor “predicts”... -
Page 5: P Arts
Figure 1 Probe cover box Probe handle Display Probe storage channel Mode button Latching probe connector Probe cover ejection button Battery door WALL MOUNTING INSTRUCTIONS The optional wall mount bracket should be mounted approximately 48 inches from the floor. This allows the end user of average height relatively easy access to the probe and probe covers. -
Page 6: Setup
SETUP 1. Install the supplied Rectal probe by inserting the latching plug on the end of the coiled cord into the plug receptacle on the unit. The plug snaps into place and cannot be removed without depressing the latch. (Figure 1). 2. -
Page 7: Display Indicators
Mode Table DISPLAY INDICATORS Instrument Malfunction: This icon is displayed if the unit is not functioning properly. Contact the Welch Allyn Customer Service Department. Broken Probe: If displayed, probe may be damaged. Remove and reinstall probe. If error persists, then install a new probe. -
Page 8: Operation
High Temperature: This icon is displayed if the patient’s temperature is greater than 108.0°F (42.2°C). Low Temperature: This icon is displayed if the patient’s temperature is less than 84.0°F (28.9°C). High Ambient Temperature: This icon is displayed if the ambient temperature is greater than 104°F (40°C). - Page 9 3. Lift the tail of the patient with one hand. Using the other hand, gently insert the probe only 3/4 inch inside the rectal sphinc- ter (less for patients under 20 lbs.). The use of lubricant is optional. WARNING: Incorrect insertion can cause bowel perforation.
-
Page 10: Using Monitor Mode
USING MONITOR MODE Remove the probe from the storage channel and take a temperature. After the temperature is displayed, depress the Mode button for more than 2 seconds. The “M” icon will appear on the LCD indicating the unit is in Monitor mode. -
Page 11: Cleaning And Steriliza Tion
10.5 oz (300 gr). CUSTOMER SERVICE For customer service, technical or clinical support, please contact Welch Allyn at (800) 854-2904 from 7:00 AM to 5:00 PM Pacific Time. Sporicidin is a registered trademark of Sporicidin International (800) 424-3733. MetriSpray is a... -
Page 12: Limited Warranty
Welch Allyn. This warranty shall be fulfilled by Welch Allyn or its authorized representative repairing or replacing at Welch Allyn's discretion, any such defect, free of charge for parts and labor.
