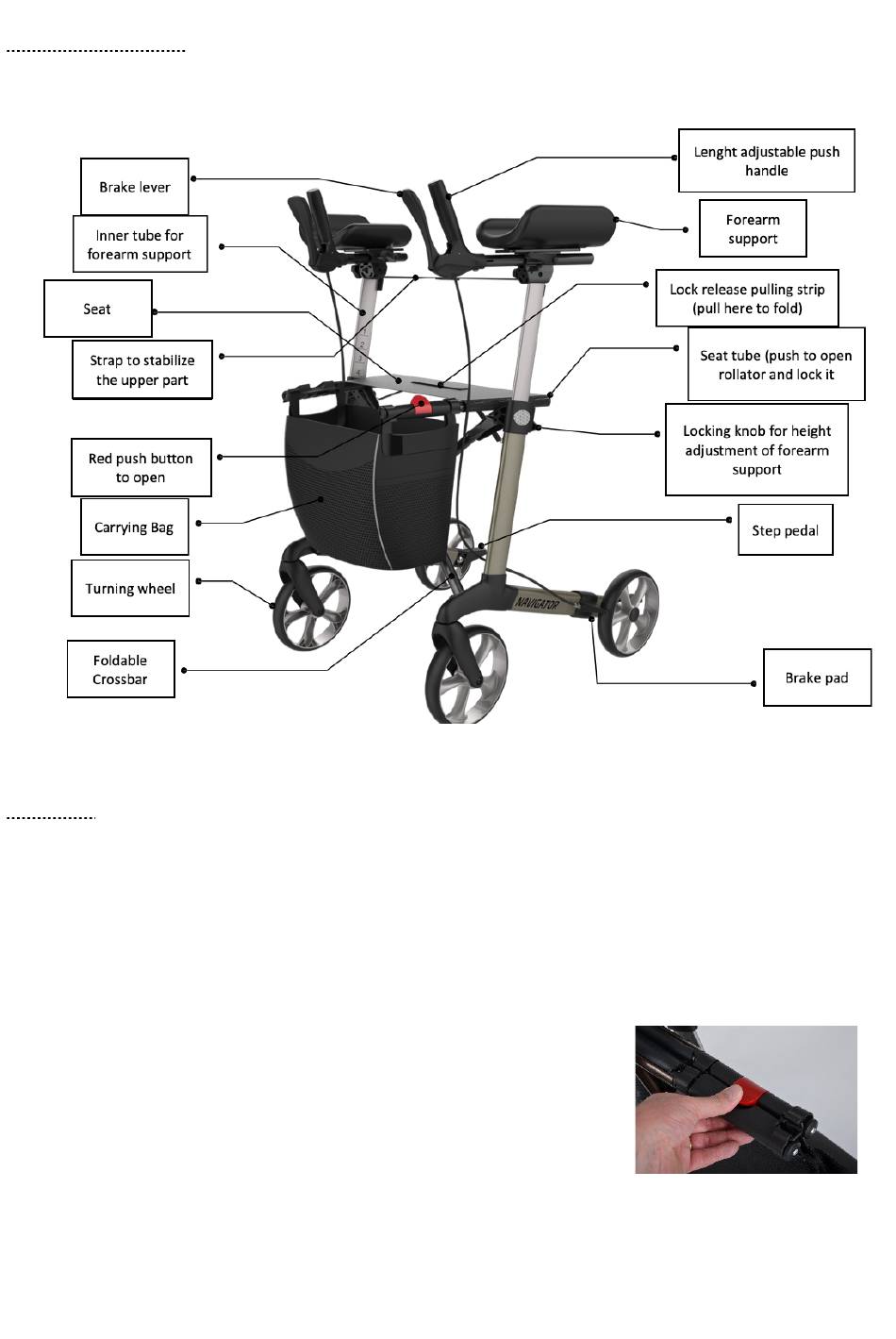

5 Product details

6 Usage
Using the above image, the device can be prepared for use. However, we encourage you to follow the
instructions below step by step.
Initial Check
- In the first instance take the device out of the box and check (using the image above) that nothing
is missing.
- If you discover at this stage that some part is missing or damaged do not continue to assemble the
product. Contact your supplier of the product right away.
Opening of the rollator
- Push the red button which is locking the seating tubes (See the
image shown on the right side).
- Hold both seat tubes and simultaneously push them down until you
hear a "click" sound of the locking mechanism of the frame.
- Try to pull the seat tubes back up to fold the frame. If this is not
possible the frame is opened and secured correctly.
- Close the buckle of the pulling straps between the arm supports.
With the Velcro material the length of the strap should be adjusted
in such a way that there is a light pulling force.
06 / 2019 4/29
