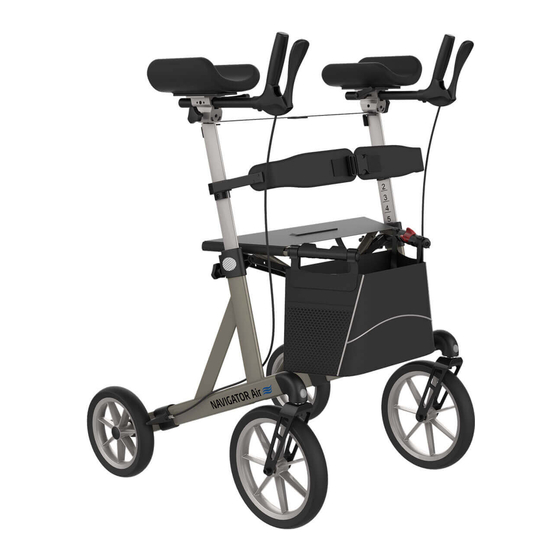

Rehasense NAVIGATOR Air User Manual
Outdoor rollator with forearm support
Hide thumbs
Also See for NAVIGATOR Air:
- User manual (30 pages) ,
- Service manual (11 pages) ,
- User manual (31 pages)
Subscribe to Our Youtube Channel
Related Manuals for Rehasense NAVIGATOR Air
Summary of Contents for Rehasense NAVIGATOR Air

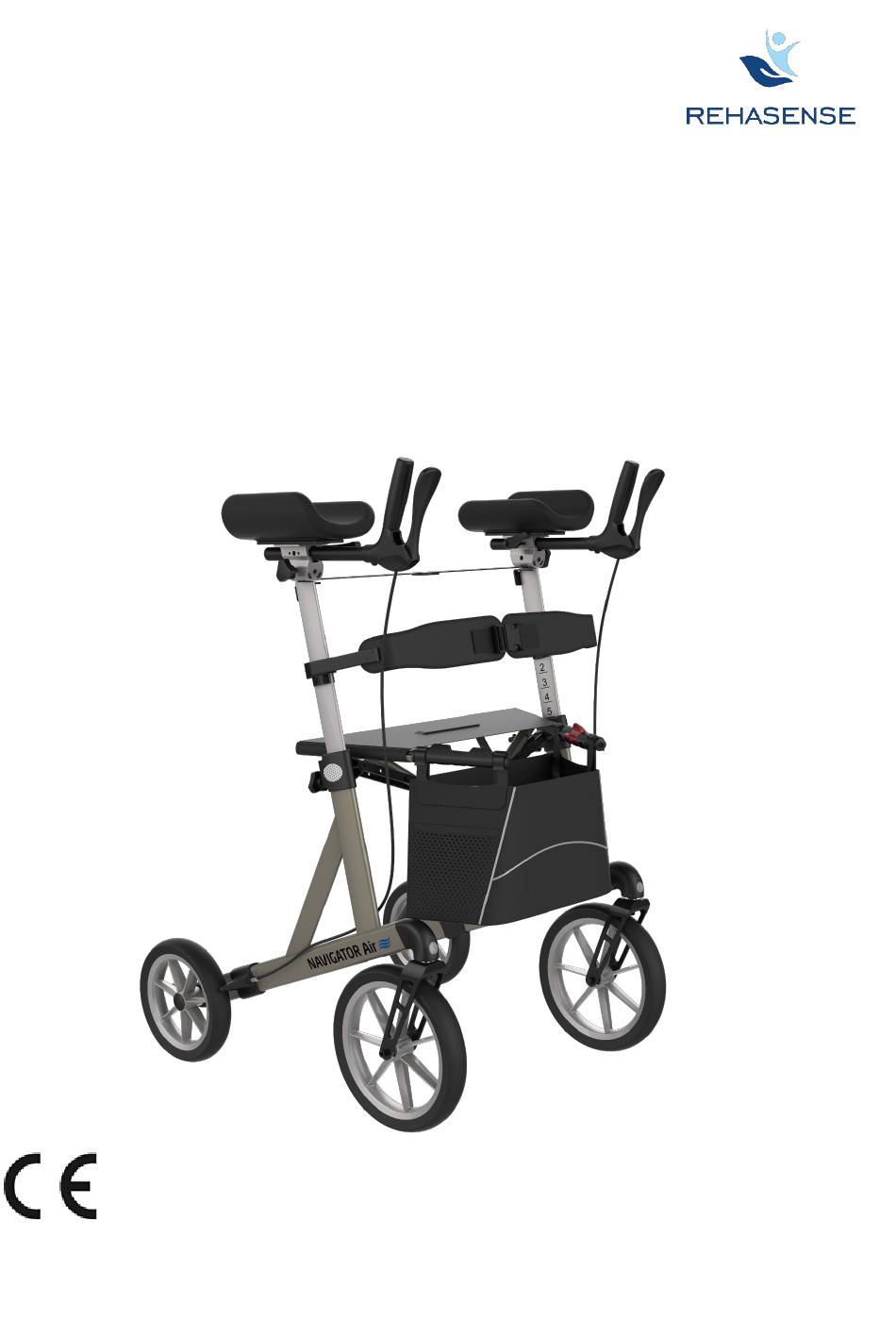

- Page 1 User’s manual NAVIGATOR Air Outdoor rollator with forearm support More than mobility 08 / 2020 1/23 NAVIGATOR Air...
-
Page 2: General Information
small net bag to put between the push handles. 1 user‘s manual The Navigator Air is a four wheel rollator with forearm supports and large wheels. The very stable and comfortable forearm supports are height adjustable for users to set it exactly according to their needs and as an option it can be featured with horizontal adjustment. -
Page 3: Product Details
(pull here to fold) Seat Seat tube (push here to open the rollator and lock it) Red push button Locking knob for to open height adjustment of forearm support Carrying bag Turning wheel Foldable Brake Crossbar 08 / 2020 3/23 NAVIGATOR Air... - Page 4 Close the buckle of the stabilizing strap (3) between the forearm supports. With the Velcro material the length of the strap should be adjusted in such a way that there is a light pulling force. Opening of the rollator 08 / 2020 4/23 NAVIGATOR Air...
- Page 5 - Before the rollator is folded and locked, one of the forearm supports must be set to a minimum of three steps higher. See pictures 2 and 3. Adjusting the height of the forearm supports 08 / 2020 5/23 NAVIGATOR Air...
- Page 6 Adjusting the length and angle of the push handles Release the handle’s length locking lever (2) Make adjustments to the desired length and angle, so it is easy and comfortable to hold the handle. Tighten the lever. 08 / 2020 6/23 NAVIGATOR Air...
- Page 7 When using the rollator in a stationary position, the hand brakes MUST always be locked. Tilt aid Your walker is equipped with a tilt aid on both sides for obstacles such as door treads, curbs, etc. 08 / 2020 7/23 NAVIGATOR Air...
- Page 8 Never sit on the walker without the parking brake on. Backrest Navigator Air Includes a two parted height adjustable backrest. It has a fixed length for safety reasons. Standard featured from the factory, height adjustable for individual needs. First adjust the height of the forearm supports and then adjust the height of the backrest about 20 cm above the seat for the best comfort and support.
-
Page 9: Cleaning And Disinfection
For disinfection please contact your dealer to be sure is made by professional personnel. However for individual use we recommend to use the generally available disinfectants without chlorine and phenol. The manufacturer is not responsible for the damage caused by wrong usage of disinfectants. 08 / 2020 9/23 NAVIGATOR Air... -
Page 10: Label Example
8 Label Example The product label is located on the inside of the side frame. 9 Technical data NAVIGATOR Air – Outdoor rollator with forearm support Frame size Large Recommended user height 140-185 cm Max. users weight 200 kg Total weight (without shopping bag) -
Page 11: Maintenance
14 Warranty Purchase a REHASENSE rollator and qualify for an 8-year warranty. This is valid from the date of purchase for all rollators, and is conditional on correct use. Rollator wheels are considered as subject to natural wear and tear. - Page 12 In case of technical problems please contact your dealer. You can also contact Rehasense® directly. Dealer stamp: Rehasense® Europe Manufacturer Rehasense Sp. z o.o. Rehasense UK Limited Sulejowska 45 G Unit 2 Harmony House, 97-300 Piotrków Trybunalski Treleigh industrial estate, Redruth,...
