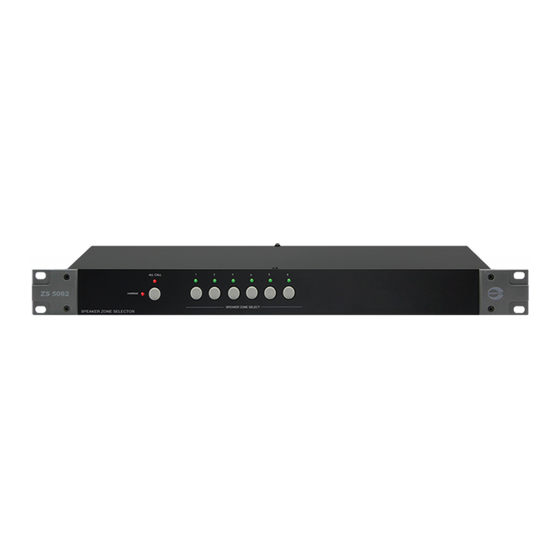

ZS 5062
SPEAKER ZONE SELECTOR
ZS 5122
SPEAKER ZONE SELECTOR
Thank you for choosing another quality product from Amperes Electronics.
ZS5062 / 5122 has been upgraded with higher power load for each zone of up to 1000W 100V line, due to larger requirement
of modern installations.
These series has fail safe feature that would ensure the speaker line will be connected to the amplifier output continuously if
the unit fails. This ensure the overall EVAC or paging would not be interrupted for any malfunction in the zone selector.
Although it is not difficult to install the unit, a brief reading of the manual is truly recommended to avoid any misconnection as
well as to explore the potential usage of the product to its maximum capability.
ALL CALL
1
2
OVERRIDE
SPEAKER ZONE SELECT
ALL CALL
1
2
OVERRIDE
INSTRUCTION MANUAL
ZS5062 / 5122
6 / 12 Ch Speaker Zone Selector
3
4
5
6
3
4
5
6
7
SPEAKER ZONE SELECT
8
9
10
11
12
amperes
amperes
Ver 2 / 2023
Advertisement
Table of Contents
Related Manuals for Amperes ZS5062
Summary of Contents for Amperes ZS5062
- Page 1 SPEAKER ZONE SELECTOR Thank you for choosing another quality product from Amperes Electronics. ZS5062 / 5122 has been upgraded with higher power load for each zone of up to 1000W 100V line, due to larger requirement of modern installations. These series has fail safe feature that would ensure the speaker line will be connected to the amplifier output continuously if the unit fails.
- Page 2 The LED shall lit if remote paging microphone is active and is overriding the local BGM zone selection. This is active if Amperes PM 1060 paging is used or any other paging microphone console with Priority output signal. 2. ALL CALL SWITCH All zones will be activated by pressing this switch, regardless of any inactive zone.
- Page 3 8. UNIT ADDRESS DIP SWITCH When it is required to be linked to Amperes PMX II software for monitoring purpose, the unit / units are required to be addressed. Binary code addressing is used in setting the unit’s ID. ( Future application ) 9.
- Page 4 Single Unit Installation With Remote Select The sample connections shown are using a single POWER AMP 1 24 DC unit of either ZS5122 or ZS5062 in a small scale installation. ie. small number of zone outputs. AMP 1 ZON1 AMP 2...
- Page 5 And the connection Z PR must link. Use EP1200A to make ALL CALL to all ZS installed - refer to page 6. ZS5062 / ZS5122 6 / 12 CHANNEL SPEAKER ZONE SELECTOR PAGE 5...
- Page 6 ZONE 1 TO 6 1-Z1 relay output, thus shall not override the 2-Z2 3-Z3 4-Z4 volume controller. 5-Z5 6-Z6 7-24V Quality Product From 8-COM AMPERES ELECTRONICS to volume controllers overriding PAGE 6 ZS5062 / ZS5122 6 / 12 CHANNEL SPEAKER ZONE SELECTOR...
- Page 7 Individual, All Call Local zone selection bypassed when remote trigger is activated Dimensions (W x H x D) 482 x 44 x 180 mm Weight 1.95 kg 2.1 kg ZS5062 / ZS5122 6 / 12 CHANNEL SPEAKER ZONE SELECTOR PAGE 7...
- Page 8 Information contained in this manual is subjected to change without prior notice and does not represent a commitment on the part of the vendor. Amperes Electronics Sdn Bhd shall not be liable for any loss or damages whatsoever arising from the use of information or any error contained in this manual.
