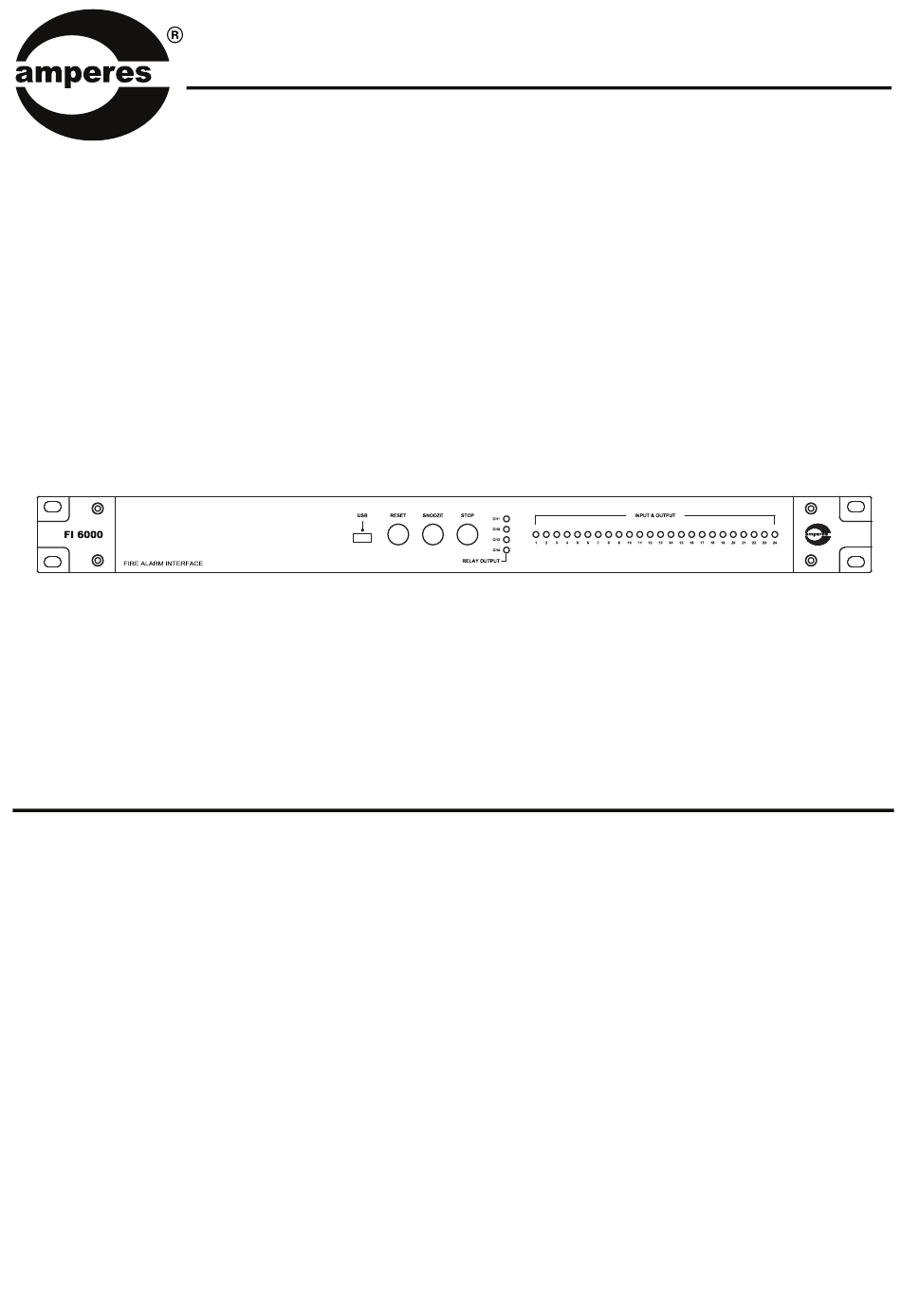

INSTRUCTION MANUAL
FI6000
Fire Alarm Interface
Thank you
for choosing another quality product from Amperes Electronics.
FI6000 is a phase evacuation controller which can be integrated with various Amperes equipment such as zone decoder and
voice message player for interfacing with Fire Alarm System.
As part of requirement of EN54, it is necessary that voice alarm to be broadcasted according to zone(s) for orderly evacuation
or warning purposes. FI6000 performs the task required by triggering appropriate announcement and intended broadcast
zones.
FI6000 can be configured via configurator software and is flexible in its setup.
VER 2 / 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FI6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Amperes FI6000

Summary of Contents for Amperes FI6000

  • Page 1 Thank you for choosing another quality product from Amperes Electronics. FI6000 is a phase evacuation controller which can be integrated with various Amperes equipment such as zone decoder and voice message player for interfacing with Fire Alarm System. As part of requirement of EN54, it is necessary that voice alarm to be broadcasted according to zone(s) for orderly evacuation or warning purposes.

  • Page 2: Parts Identification

    The green LED indicates the corresponding channel is normal, whereas red indicates that the channel is faulty. 5. DC SUPPLY INPUT PORT 24V DC of 1A regulated power supply is required. Amperes PS9400 is recommended as a DC supply source to your installation.

  • Page 3: Schematic Diagram

    TO SPEAKERS In the above application, FI6000 shall be used to generate systematic auto voice announcement according to the preset zones. The inputs section shall be connected to external sensors or Fire Alarm System and in any event, it shall trigger the required zone via TD6240 / ZS5121 and plays required message via MR1300 ( MR1301 ).
  • Page 4 ------------------ 100V TD6080 RS485 or TD6240 ------------------ Zones Upon receiving alarm, FI6000 shall be set to generate a sequence of activity with the following manner. Trigger EP message On & Trigger Appr. zones via >> >> FI trigger (ER Override)

  • Page 5: Connection Diagram

    Application Note: Although FI6000 is intended to be used with Fire Alarm System, its application is not limited as specified. It can be used as a tool to generate a sequence of functions by using the dry contacts available. It is a tool similar to a miniature PLC unit.
  • Page 6 : determine how an input signal is categorised, as pulse or latch Trigger Scan Interval : The scanning interval of inputs Debounce threshold : To prevent unnecessary triggering problem caused by relay debouncing. PAGE 6 FI6000 | FIRE ALARM INTERFACE...
  • Page 7 : the zone number of range of zones Set No : select to trigger or off the zones Trigger slide Task type : Delay Apply this task to insert delay in between tasks, measured in seconds. FI6000 | FIRE ALARM INTERFACE PAGE 7...

  • Page 8: Firmware Update

    Upon completion of setup, always save the configurations to a file for future editing. 5. Upload to Device To transfer the setting to the device, connect your PC to FI6000 via mini USB cable provided. Click “Upload to Device” button to perform the transfer.

  • Page 9: Example Of Configuration

    Example Of Configuration It is important to plan, sketch the task and sequence of activities required prior to configurating FI6000. Consider a MR1301 and TD6240 are interfaced with FI6000 via RS485 ports. If an installation with 10 zones, it is required to have : Ch 1 to trigger zone 1,2,5,6 ~ 10 ..subsequently after 5 mins, Activate Zone 1, 2, 5, 6 ~ 10, 11 ~ 15...

  • Page 10: Operating The Unit

    If the contact is latch type, pressing Reset would not return the unit to normal state and the related channel would still blink. The user shall need to reset the devices or system interconnected to FI6000. When two or more channel are at fault, the system shall operate in First Come First Serve basis. While the faulty channel is running, the others would blink and would serve the next channel upon finishing the previous tasks.

  • Page 11: Summary Of Features

    Summary of Features • Integration with Amperes products via RS485 interface and Fire Alarm System via dry contacts • Available in 24 zone per panel and scalable to cater for larger number of zones • Easily programmable for phased evacuation announcement •...

  • Page 12: Warranty Conditions

    Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized dealers.
