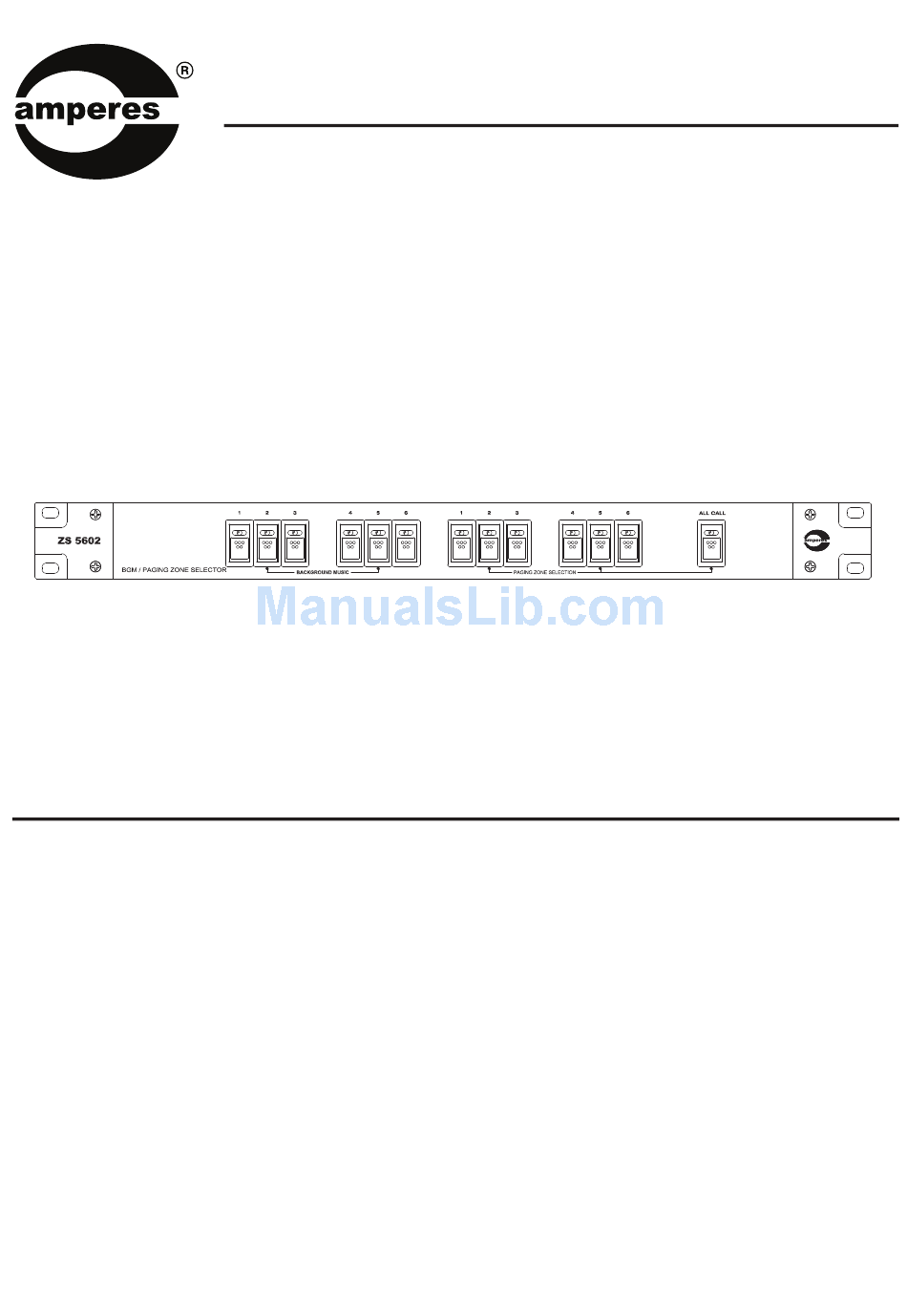

INSTRUCTION MANUAL
ZS5602
6 Channel Uninterrupted Paging
Speaker Zone Selector
Thank you
for choosing another quality product from Amperes Electronics.
ZS5602 is used for uninterrupted paging installation, in which paging to certain zones shall not interrupt other zones that is in BGM
mode.
Being a very matured product, ZS5602 has been used widely and accepted as a reliable and trustworthy component in any instal-
lation. Continuous product improvement policy by Amperes which means constant product upgrade had made it a worthwhile item
with reasonable cost to invest in.
Please read through the manual to avoid unnecessary mistakes during installation and we assure that you are getting the product
of your choice .. simply essential and truly reliable.
VER 4 / 2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amperes ZS5602
Summary of Contents for Amperes ZS5602
- Page 1 Thank you for choosing another quality product from Amperes Electronics. ZS5602 is used for uninterrupted paging installation, in which paging to certain zones shall not interrupt other zones that is in BGM mode. Being a very matured product, ZS5602 has been used widely and accepted as a reliable and trustworthy component in any instal- lation.
- Page 2 4. DC POWER INPUT This equipment operates using 24V DC supply with 1A rating. Should external overriding of volume controllers is required, we suggest that a larger rating of supply is used, such as Amperes PS9400. 5. EMERGENCY OVERRIDE RELAY CONTACT This port shall be connected to EP1200A Emergency Paging Panel.
- Page 3 In 4 wire system, no zone outputs shall be connected from here. The outputs shall only be used for 3 wire instal- lations. Please refer to “Connecting The Unit - 3 Wire System” ZS5602 | UNINTERRUPTED PAGING SPEAKER ZONE SELECTOR PAGE 3...
- Page 4 PM1060 / 1120 ANALOGUE MIC WITH REMOTE TRIGGERING Triggering ZS5602 can be made via PM1060 / 1120 paging mic or PD2400 / 2800 via TD6240. ( Refer to Cascading the Unit ). Pin connections of PM1060 / 1120 to ZS5602 :...
- Page 5 (Zone 19 to 24) Connecting the Unit - 3 Wire System ZS5602 is suitable for both 3 and 4 wire setup. If 3 wire system is required, a little modification to the unit is required, as illustrated below 1. Open the top casing 2.
- Page 6 3 wire installations. Failure to do so may cause audio crossing to adjacent zone, or slight leakage of sound through speaker though the volume controller is at off position. 100V 100V Paging PAGE 6 ZS5602 | UNINTERRUPTED PAGING SPEAKER ZONE SELECTOR...
- Page 7 Paging zone triggering ZS5602 ZONE SELECTOR 100V line 100V line 24V DC overriding Note : VOLUME Cascade more than 1 ut of ZS5602 if CONTROLLER required SPEAKERS Technical Data Input voltage 24V DC ; 0.5 A Power consumption 10W ; 0.42 at ALL CALL ( without volume controllers connected ) Relay contacts Double pole ;...
- Page 8 Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized master distributor, TNT Links Sdn Bhd / MyPA Systems Sdn Bhd.
