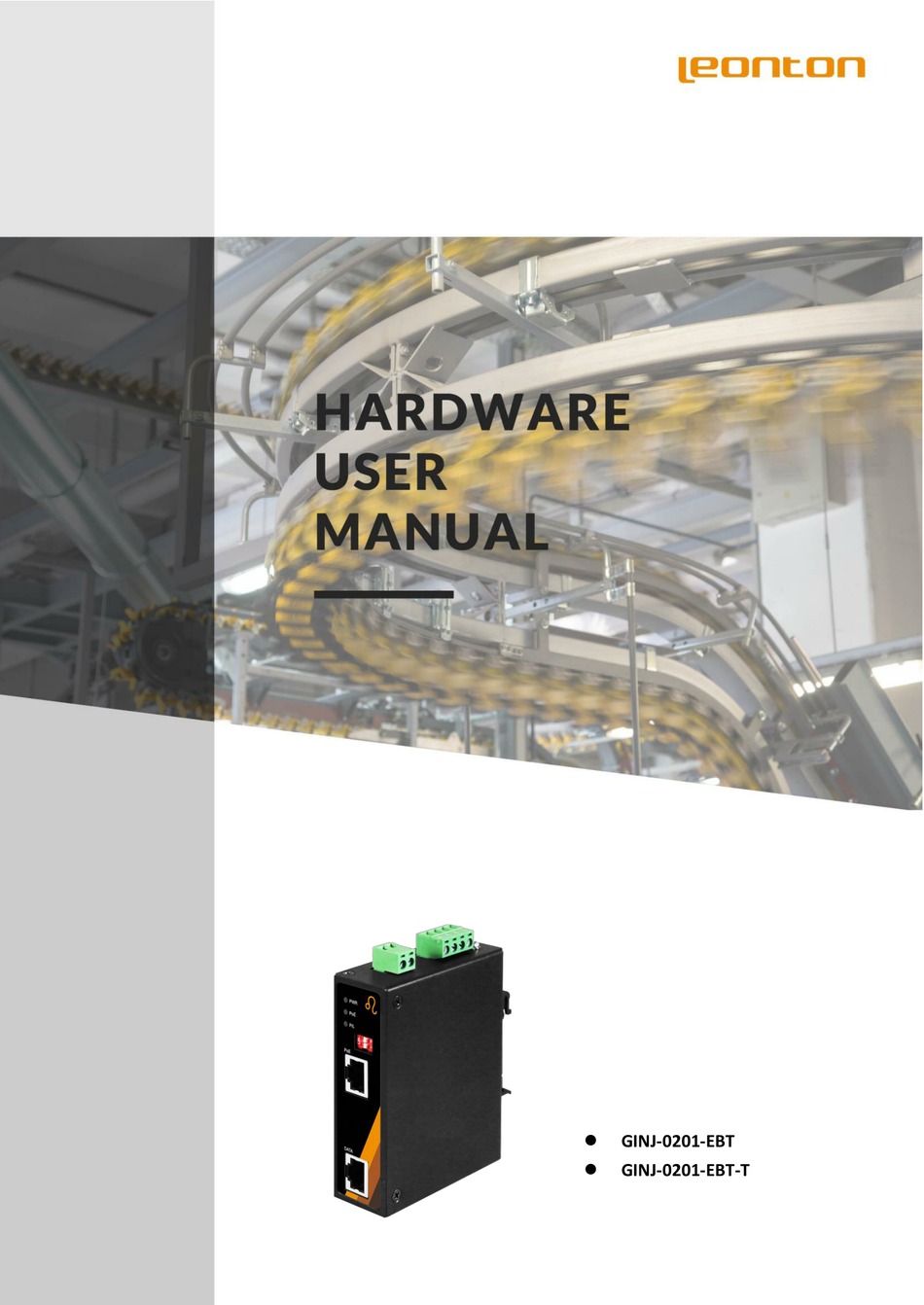

  • Page 1 ⚫ GINJ-0201-EBT ⚫ GINJ-0201-EBT-T...
  • Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
  • Page 3 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
  • Page 4: Table Of Contents

    CONTENT OVERVIEW ........................... 5 Key Features ................................. 5 Package Contents ............................... 6 Safety Precaution ................................ 6 HARDWARE DESCRIPTION ...................... 7 Physical Dimensions ..............................7 Front Panel ..................................8 Top View ..................................8 LED Indicators ................................9 DIP-Switch Setting ..............................10 Relay Contact Alarm Warning ..........................
  • Page 5: Overview

    PD device. PoE injector is a brilliant low-cost solution for the case that only one side of the device is supporting PoE function. Therefore GINJ-0201-EBT Series will be your best choice to deal with the lack of PoE function cases.
  • Page 6: Package Contents

    Installation in the environment with adequate airflow ⚫ Standalone Installation Package Contents ⚫ 1 - GINJ-0201-EBT(-T) - Unit weight: 0.362 kg (0.8 lbs.), Shipping weight: 0.508 kg (1.12 lbs.) ⚫ 2 - Wall mounting brackets and screws ⚫ 1 - Quick installation guide...
  • Page 7: Hardware Description

    HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of GINJ-0201-EBT Series. (W x H x D) is 30mm x 95mm x 75mm Figure 2.1: Physical Dimensions...
  • Page 8: Front Panel

    Front Panel The front panel of the GINJ-0201-EBT Series Industrial Gigabit BT-PoE Injector is shown below in Figure 2.2. 2+4pin removal terminal block LED indicator DIP Switch 10/100/1000Base-T(X) BT-PoE Out 10/100/1000Base-T(X) for LAN-In Figure 2.2: The Front Panel Top View Figure 2.3, below shows the top panel of the GINJ-0201-EBT Series Industrial Gigabit BT-PoE Injector that is...
  • Page 9: Led Indicators

    LED Indicators There are LED light indicators located on the front panel of the industrial injector that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Color Description Green...
  • Page 10: Dip-Switch Setting

    DIP-Switch 2 Dual PD Check Enabled Dual PD Check Disabled Table 2.2: DIP-switch setting for GINJ-0201-EBT Series DIP Switch 1 OFF: Enable “Standard PoE Mode” function. The PoE Output will be activated following IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt PoE Standard ON: Enable “Enhanced PoE Mode”...
  • Page 11: Ethernet Ports

    [Notice] When the relay is triggered because of Event 2~5, the relay contact alarm, will update the status every 30 seconds. If there is no event happening for 30 seconds, the relay contact alarm will be turn off. If the user disables the failed PoE port by removing the cable or Dip Switch manually, the relay will be recovered immediately.
  • Page 12: Cabling

    Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The total length from the device A through the injector to the device B must not exceed 100 meters. Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation.
  • Page 13: Wiring The Fault Alarm Contact

    Wiring the Fault Alarm Contact The fault alarm contact is on the 2-pin terminal block connector as the picture shown below. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit.
  • Page 14: Mounting Installation

    MOUNTING INSTALLATION DIN-Rail Mounting The DIN-Rail is pre-installed on the injector from the factory. If the DIN-Rail is not on the unit, please see Figure 3.1 to learn how to install the DIN-Rail on it. Figure 3.1: The Rear Side of the Injector and Wall Mounting Bracket...
  • Page 15 Follow the steps below to learn how to hang the industrial Ethernet injector. Step 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet injector. Step 2. To remove the DIN-Rail bracket, do the opposite from Step 1. Step 3.
  • Page 16: Wall Mounting

    Wall Mounting Follow the steps below to mount the industrial Ethernet injector using the wall mounting bracket as shown below in Figure 3.4. Step 1. Remove the DIN-Rail bracket from the industrial Ethernet injector by loosening the screws. Step 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet injector.
  • Page 17: Hardware Installation

    HARDWARE INSTALLATION Installation Steps This section will explain how to install GINJ-0201-EBT Series. Installation Steps Step 1. Unpack the industrial injector from the original packing box. Step 2. Check if the DIN-Rail bracket is screwed on the industrial injector. •...
  • Page 18 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
  • Page 19: Trouble Shooting

    If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. ◆ ●...
