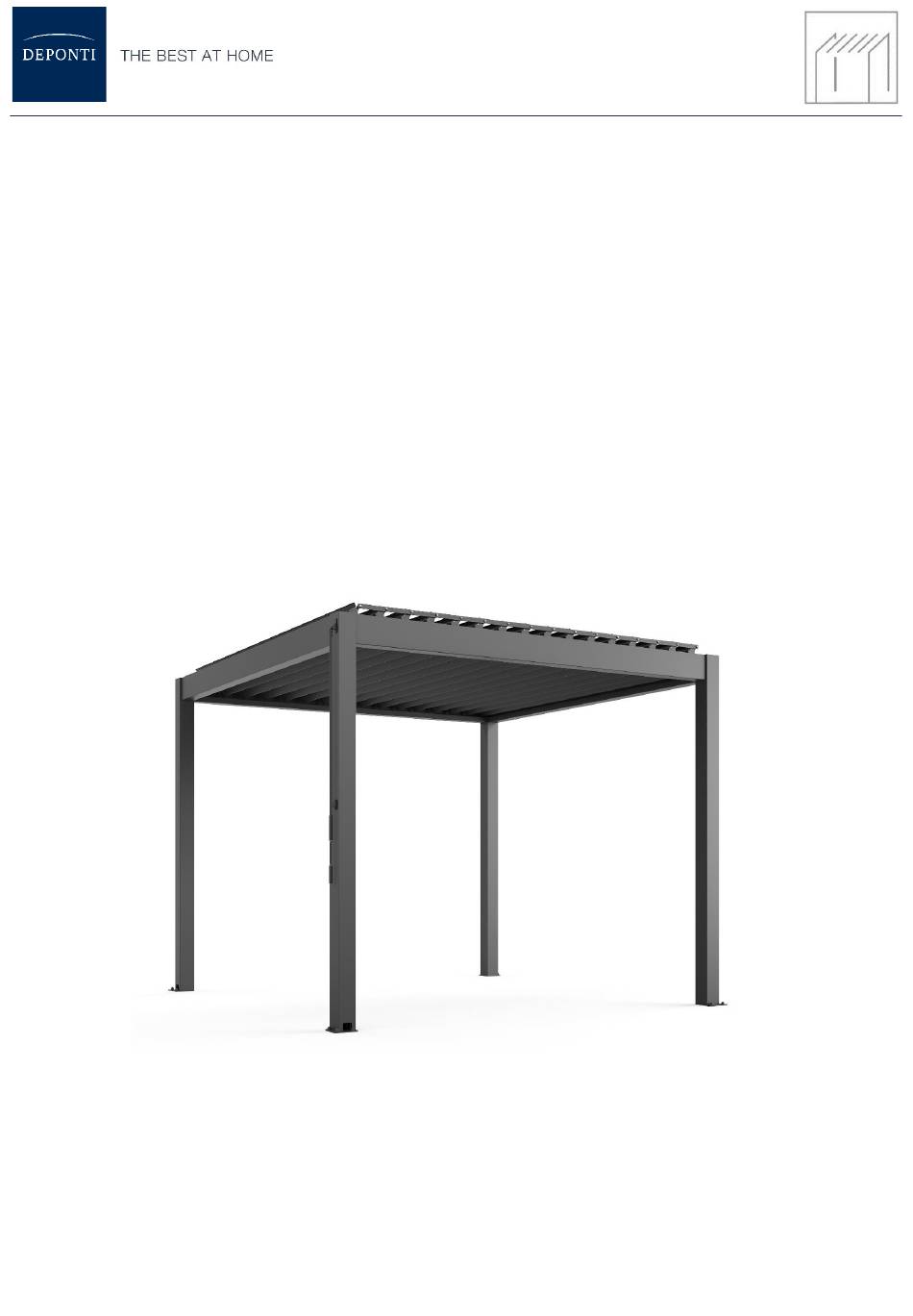

- Page 1 User manual / Assembly instructions Deponti Louvered Pergola Type Manual Pinela 3x4 Version: EN – November 2022 www.deponti.com...
-
Page 2: Table Of Contents
For the duration and the terms and conditions of the warranty we recommend that you contact your supplier. We also refer you to our General Terms and Conditions of Sale and Delivery which are available on request. Deponti B.V. accepts no liability for any damage or injury resulting from a failure to carefully follow the instructions in this manual or exercise due caution during transport, assembly, use and maintenance of the pergola. -
Page 3: Introduction
Before you can start enjoying your pergola it must be assembled properly. This manual provides clear instructions for all the steps you must complete for correct assembly of your Deponti pergola. We recommend that you take the time to read the entire manual before you begin the assembly. - Page 4 Dispose the product in accordance with local laws and regulations. • It is forbidden to tamper with the bioclimatic pergola system. • When safety regulations and instructions are not followed correctly, Deponti B.V. will not accept responsibility for damage(s) and injuries. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com...
-
Page 5: Product Description
The Manual Pinela roof is a bioclimatic pergola system which is a rotatable panel system. The Manual Pinela panels can rotate 120⁰ degree. Also it protects from sun, rain and limited snow loads. The Pinela is available in the following dimensions; • 3x3x2,5m • 3x4x2,5m Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 5... -
Page 6: Parts Overview
GUTTER PROFILE (RIGHT) UNIVERSAL DRIVE SHAFT CRANK ARM GUTTER SIDE COVER JOINT PROFILE GUTTER BACK COVER LOUVER PROFILE (ARTICULATED) BOX-3/5 LOUVER LOUVER PROFILE LOUVER PROFILE BOX-4/5 LOUVER LOUVER PROFILE BOX-5/5 LOUVER Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 6... - Page 7 CODE PICTURE CODE PICTURE CODE PICTURE M6x50 M4x12 M6x20 Installation Manual Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 7...
- Page 8 CODE PICTURE Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 8...
-
Page 9: Delivery Inspection
Always carefully check the delivered items against the accompanying delivery note to ensure that the quantity and quality are correct. Any visible defects must be reported in writing within 7 days of delivery. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 9... -
Page 10: Preparation For Assembly
1.5 mm per metre of width of the pergola. Rubber seals • A Deponti pergola is standard equipped with pre-assembled rubber seals. • If the rubber seals are deformed. they can be straightened with a little heat. from a hot air heater or hair dryer for example. -
Page 11: Inspection Of Tools And Accessories
5.2 Inspection of tools and accessories Ø16 Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 11... -
Page 12: Assembly
Repeat this step for all 4 columns. 2. Take part C1, C2, C3 and C4 and add the rubbers to it. It should be ensured that the rubber stopper is fully seated on the surface. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 12... - Page 13 Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 13...
- Page 14 3) Please note: Assembly should be performed on a soft floor or assembly pedestals to avoid any damage to the product. 4. Make sure the bolts are fully tightened. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 14...
- Page 15 3) Please note: Assembly should be performed on a soft floor or assembly pedestals to avoid any damage to the product. 6. Make sure the bolts are fully tightened. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 15...
- Page 16 7. Put the pillars and gutter profile to an upright position and connect them with the left and right gutter profile (part C3 and C4). It should be ensured that the mounting rods are fully inserted into the channels. Please note: Make sure the bolts are fully tightened. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 16...
- Page 17 8. Before fixing the product to the floor , it should be ensured that diagonal dimensions are same. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 17...
- Page 18 The balance of the product should be checked during assembly. The pillars of the product have to have 90° to the ground. It should be checked with water gage during installation. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 18...
- Page 19 Louver installation has to be started with the second louver panel which has joint shaft on it. has to be assembled and the bolt has to be The existing bolt has to be removed, the mechanism tightened again. (See step 3 in image below) Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 19...
- Page 20 11. The universal drive shaft has to be assembled. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 20...
- Page 21 11. The louver has to be placed. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 21...
- Page 22 12. The Louver have to be fixed to joint profile as shown on the step 1 and step 2 in the image below. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 22...
- Page 23 13. It should be ensured that the circlip coded p13 clicked into the channel as shown on step1 and step2 in the image below. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 23...
- Page 24 14. It should be ensured that the side closure profile passes into the channel on the gutter. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 24...
- Page 25 15. It should be ensured that the side closure profile passes into the channel on the gutter. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 25...
- Page 26 16. Pillar cover has to be fixed. 17. Congratulations! The pergola is now finished! Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com page 26...
-
Page 27: Maintenance
Warranty in accordance with the warranty conditions and Deponti’s general terms and conditions. These can be found on the website www.deponti.com. 10. Contact IMPORTANT: Your Deponti partner is your first point of contact for questions and comments. Assembly Manual – Manual Pinela 3x4 Pergola www.deponti.com...
