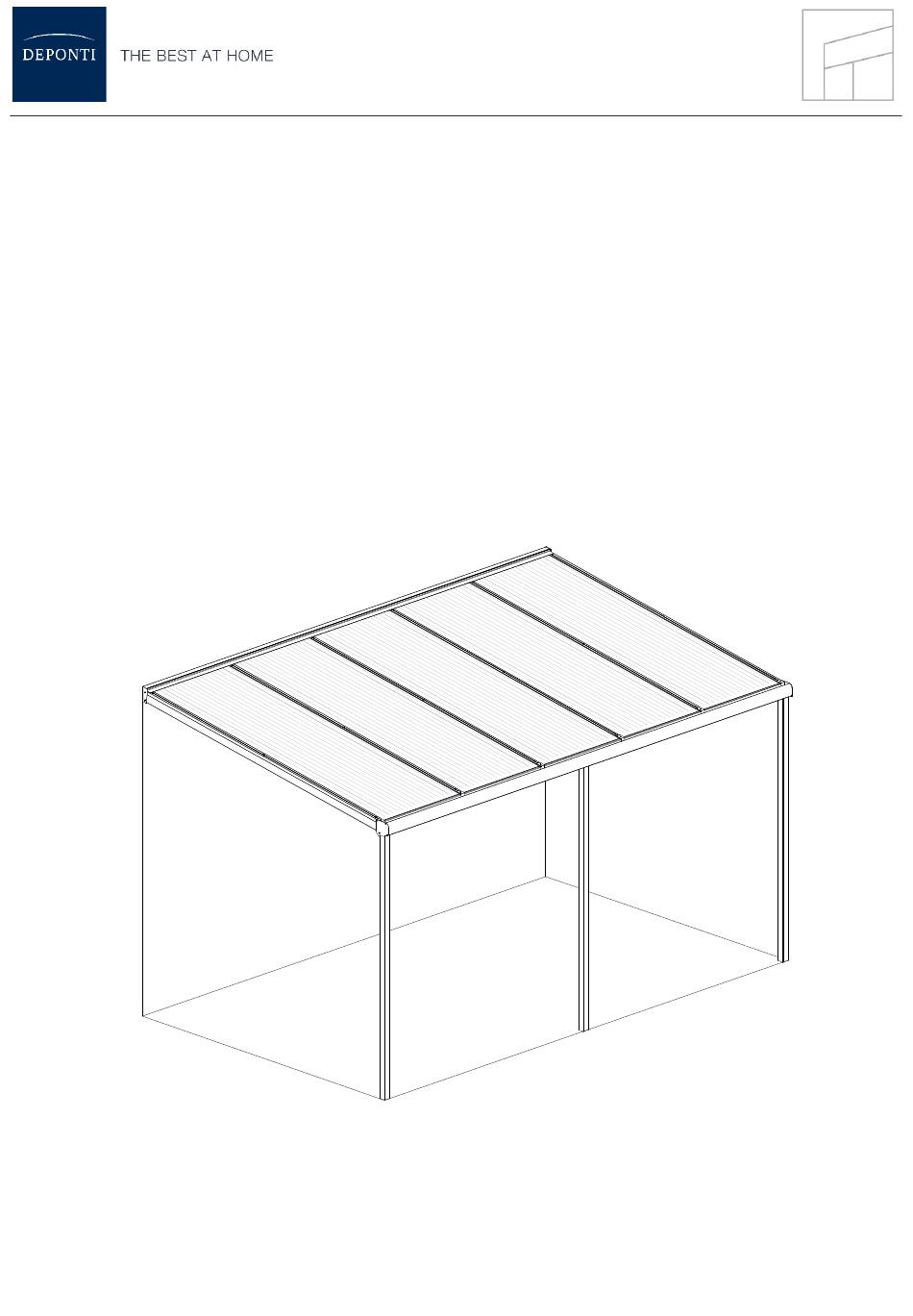

- Page 1 User manual / Assembly instructions Deponti Veranda Type Nebbiolo Version: EN – February 2022 www.deponti.com...
-
Page 2: Table Of Contents
We also refer you to our General Terms and Conditions of Sale and Delivery which are available on request. Deponti B.V. accepts no liability for any damage or injury resulting from a failure to carefully follow the instructions in this manual or exercise due caution during transport, assembly, use and maintenance of the veranda. -
Page 3: Introduction
Before you can start enjoying your Veranda it must be assembled properly. This manual provides clear instructions for all the steps you must complete for correct assembly of your Deponti Veranda. We recommend that you take the time to read the entire manual before you begin assembly. - Page 4 • Dispose the product in accordance with local laws and regulations. • When safety regulations and instructions are not followed correctly, Deponti B.V. will not accept any responsibility for damage(s) and injuries. Assembly Manual – Nebbiolo Veranda www.deponti.com...
-
Page 5: Product Description
The Deponti Nebbiolo veranda is available as standard in widths of 4045, 5045 or 6045 as a single section. The roof can have a projection of 2500, 3000 or 3500mm. -
Page 6: Parts Overview
4.1 Exploded view 4.2 Delivery Inspection The veranda shown in this manual is a 5x3 metre Nebbiolo. This merely serves as an example. The type and number of components supplied depends on your order. Note: Always carefully check the delivered items against the accompanying delivery note to ensure that the quantity and quality are correct. -
Page 7: Parts List
(option) 14. Sheet stopper 07A. End rafter 12. End cover strip 1x sealing rubber 1x sealing rubber 13. Top cover strip 07B. Middle rafter 14. Sheet stopper 2x sealing rubber 2x sealing rubber Assembly Manual – Nebbiolo Veranda www.deponti.com page... - Page 8 4.2x16 + bit gutter profile long 4.2x40 screws Rainwater 05. EPDM rubber 90° rainwater 06. Leaf catcher discharge sleeve drain ring (option) discharge sleeve 50/60 mm (option) (option) (option) 1x coloured sealant Assembly Manual – Nebbiolo Veranda www.deponti.com page...
-
Page 9: Preparation For Assembly
Screws and drilling • Deponti supplies special 4.2x19 mm and 4.2x40 mm stainless steel screws with the veranda. Note: Pre-drill a hole for each screw with a 3 mm drill bit! If you continue to turn them after they are tight, the screw head may break off. It is recommended that you screw carefully, with the torque limiter on your drill set properly. - Page 10 Warranty is void if the Nebbiolo veranda is not assembled and installed in accordance with the instructions.
-
Page 11: Inspection Of Tools And Accessories
5.2 Inspection of tools and accessories Assembly Manual – Nebbiolo Veranda www.deponti.com page... -
Page 12: Measuring & Determining Dimensions
5.3 Measuring & determining dimensions The Deponti veranda is available in a large range of sizes. Moreover, the roof has a modular design and can be quickly and easily made to size. However, please note that our current and future modular options are based on standard sizes. -
Page 13: Height Adjustments
5.3.1 Height adjustments A Deponti veranda is designed for a slope of 15,7cm per metre. All the static strength calculations, as well as all sizes and dimensions in this manual, are based on this. The height of the wall profile and the passage height (distance from bottom of gutter to the ground) are completely dependent on each other and determined by this slope. -
Page 14: Roof Width
The gutter profile and wall profile are supplied in multiple lengths of 4045, 5045 or 6045 mm. The centre-to-centre distance between the beams of a Deponti veranda is 1000 mm (1 metre). A roof with five one-metre sections has a total width of 5045 mm. The extra 45 mm is the distance from the centre of the beam to the outside of the beam, which is 22.5 mm;... -
Page 15: Assembly
Place the wall profile on the line and then mark the holes that you pre-drilled in your wall profile. 3. Now use a concrete drill bit with a diameter of 8 mm to drill the holes. Make sure the wall profile is level. Ø8 mm Assembly Manual – Nebbiolo Veranda www.deponti.com page... - Page 16 6. Apply sealant the top edge of the wall profile (between the wall and the wall profile) to make a good seal. Strike off the sealant to make it smooth and waterproof. cleaner Assembly Manual – Nebbiolo Veranda www.deponti.com page...
-
Page 17: Installing Posts, Gutter And End Beams
Now drill holes in the ground and attach the base plates with two suitable ground screws. ½B -32,5 mm ½B -32,5 mm D+32,5 mm (optie) (optie) D+32,5 mm Assembly Manual – Nebbiolo Veranda www.deponti.com page... - Page 18 Place the 90° rainwater discharge sleeve in this hole in the rainwater discharge post. Place the PVC rainwater discharge pipe in the rainwater discharge post and connect it to the 90° rainwater discharge sleeve. ½B -32,5 mm ½B -32,5 mm 2 (optie) Assembly Manual – Nebbiolo Veranda www.deponti.com page...
-
Page 19: Pre-Drilling The Gutter (Option)
EPDM rubber drain ring in the gutter. 3. Now carefully drill the hole in the gutter with the hole saw (ø50-60 mm). 4. Fit the optional leaf catcher or EPDM rubber drain ring in the hole. Ø50 Ø50 32,5 Assembly Manual – Nebbiolo Veranda www.deponti.com page... -
Page 20: Installing The Gutter
Be careful not to drill and screw through the PVC pipe in one of the posts! Assembly Manual – Nebbiolo Veranda www.deponti.com page... -
Page 21: Installing The End Beams
2. Place the left and right end beams in both the gutter profile and the wall profile, one by one. Make sure that the outer edges of the end beams are flush with the ends of the gutter profile and wall profile. Assembly Manual – Nebbiolo Veranda www.deponti.com page... - Page 22 Screw the end beams to both the gutter profile and wall profile from the top with one short screw per end. Make sure the roof is completely square. Secure the end beams with the second screw. Assembly Manual – Nebbiolo Veranda www.deponti.com...
-
Page 23: Installing The Middle Beams
6.3 Installing the middle beams Note: if you install Deponti LED lighting, we recommend performing the installation before placing the middle beams. The standard element width is 98 cm, so the middle beams will be spaced exactly 100 cm centre to centre. - Page 24 4. Then place the remaining middle beams in the wall profile and gutter profile at the desired distance. 5. Screw the middle beams to both the gutter profile and wall profile with two short screws. 955 mm 955 mm 955 mm 955 mm Assembly Manual – Nebbiolo Veranda www.deponti.com page...
-
Page 25: Preparing And Installing The Roofing Sheets
2. Place the condensation profiles (no. 11B) at the gutter end of the roofing sheets, where the perforated anti-dust tape is located. These condensation profiles have pre-drilled holes for drainage of the condensation water. 980 mm UV-side up! 980 mm Assembly Manual – Nebbiolo Veranda www.deponti.com page... - Page 26 Once the strip is positioned correctly, click the trim click strip into the end beam (use a rubber mallet). 4. Now screw the end cover strip to three points on the end beam with long stainless steel screws (1 top – 1 bottom – 1 middle). C LIC K ! Assembly Manual – Nebbiolo Veranda www.deponti.com page...
- Page 27 (use a rubber mallet). 4. Now screw the middle cover strip to three points on the middle beam with long stainless steel screws (1 top – 1 bottom – 1 middle). C LIC K ! Assembly Manual – Nebbiolo Veranda www.deponti.com page...
- Page 28 5. Repeat steps 1 to 4 on pages 26 & 27 for installation of the other cover strips. C LIC K ! 6. Now screw a sheet stopper at the gutter end of each middle beam to ensure secure attachment. Note: securing the end cover strips comes later. Assembly Manual – Nebbiolo Veranda www.deponti.com page...
-
Page 29: Finishing
1. Position the rubber strip in the wall profile properly so it covers the sheets and cover strips. 2. Carefully cut the rubber strip to size at both ends. Silicon spray 3. Screw the wall profile side cover onto wall profile with two short screws. Assembly Manual – Nebbiolo Veranda www.deponti.com page... - Page 30 5. Carefully screw the side cover to the gutter profile with the short screws in the guides provided for this purpose. 6. Apply sealant the inside of the gutter so it is waterproof. Assembly Manual – Nebbiolo Veranda www.deponti.com page...
- Page 31 7. Now attach the sheet stoppers to the cover strips of the end beams with the short screws. 8. Remove the protective film from the roofing sheets and the aluminium parts. Assembly Manual – Nebbiolo Veranda www.deponti.com page...
- Page 32 9. Secure your posts with the second short screw. 11. Congratulations! The roof is now finished! Assembly Manual – Nebbiolo Veranda www.deponti.com page...
-
Page 33: Maintenance
Warranty in accordance with the warranty conditions and Deponti’s general terms and conditions. These can be found on the website www.deponti.com. 10. Contact IMPORTANT: Your Deponti partner is your first point of contact for questions and comments. Assembly Manual – Nebbiolo Veranda www.deponti.com...
