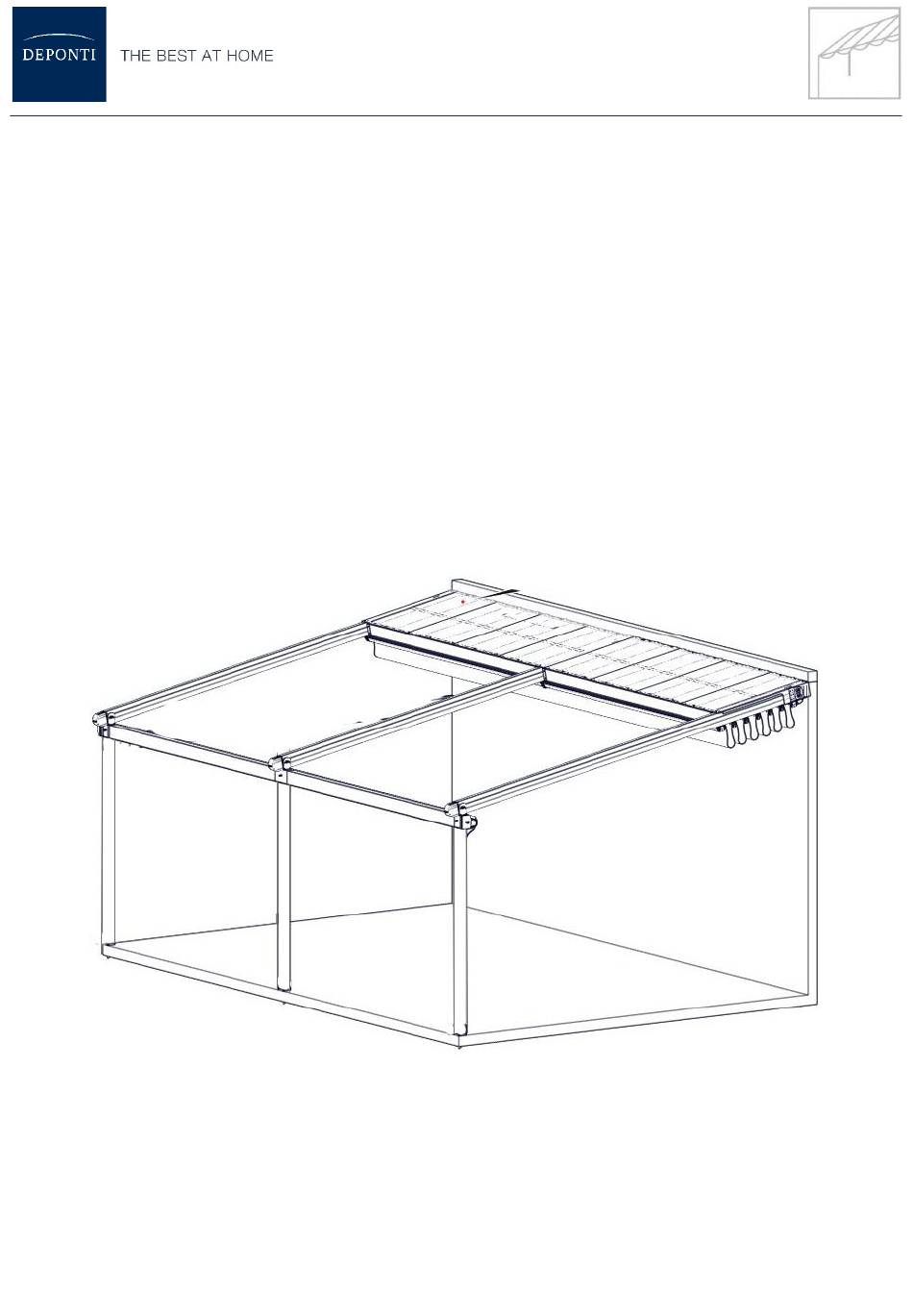

- Page 1 User manual / Assembly instructions Deponti Retractable Roof Pergola Type Verdeca Version: EN – September 2020 www.deponti.com...
-
Page 2: Table Of Contents
For the duration and the terms and conditions of the warranty we recommend that you contact your supplier. We also refer you to our General Terms and Conditions of Sale and Delivery which are available on request. Deponti B.V. accepts no liability for any damage or injury resulting from a failure to carefully follow the instructions in this manual or exercise due caution during transport, assembly, use and maintenance of the Pergola. -
Page 3: Introduction
Before you can start enjoying your Pergola it must be assembled properly. This manual provides clear instructions for all the steps you must complete for correct assembly of your Deponti Pergola. We recommend that you take the time to read the entire manual before you begin assembly. - Page 4 • Dispose the product in accordance with local laws and regulations. • When safety regulations and instructions are not followed correctly, Deponti B.V. will not accept any responsibility for damage(s) and injuries. Assembly Manual – Verdeca Pergola www.deponti.com...
-
Page 5: Product Features
4000 5000 6000 If the Deponti Pergola Verdeca is installed with a slope of > 25% the product will be out of warranty. *Optional: built-in LED lighting in the fabric Application type: The Verdeca has a retractable system with a tilted form and has to be mounted to a wall. -
Page 6: Parts Overview
4. Parts Overview 4.1 Exploded view Wall profile Motor unit Post Fabric Gutter Cross rafter Rafter Side cover profiles, ceiling sheets and wall finish profile Assembly Manual – Verdeca Pergola www.deponti.com page 6... -
Page 7: Motorization
4.2 Motorization The Verdeca pergola is using a single motor from Somfy type OREA 60 RTS 55/17. The motor is controlled and operated by a remote control. The Somfy Telis 4 RTS remote is provided. 4.3 Hardware details Rafter - Wall profile connection... - Page 8 Post – Gutter connection Pillar – Ground connection Use materials suitable for your situation. Motor unit – Wall profile connection M5.5x25mm self-drilling screw with washer Assembly Manual – Verdeca Pergola www.deponti.com page 8...
- Page 9 Fabric – Carrier (rafter) connection M8 nut with sealant Cross rafter – Rafter connection a. M4.8x25mm self-drilling screw (3x) b. M4.8x25mm self-drilling screw (6x) Assembly Manual – Verdeca Pergola www.deponti.com page 9...
-
Page 10: Delivery Inspection
• Boxes with blue label: Metal parts like U Brackets, Mounting brackets, Gutter caps, screws. • Boxes with yellow label: Plastic parts like Rubber for the gutter, caps, motor shaft drive transmitter. Assembly Manual – Verdeca Pergola www.deponti.com page 10... -
Page 11: Preparation For Assembly
Warranty expires if the Verdeca Pergola is not assembled and installed in accordance with the instructions. Assembly Manual – Verdeca Pergola www.deponti.com... -
Page 12: Inspection Of Tools And Accessories
5.2 Inspection of tools and accessories Ø16 13, 17 Assembly Manual – Verdeca Pergola www.deponti.com page 12... -
Page 13: Assembly
2. Fasten the brackets to the wall/ Use the correct hardware for your situation. We suggest to use minimum M12. 3. Install the wall profile on the wall mounting brackets. NOTE: Don’t work alone . You may need someone else while placing of the back profile. Assembly Manual – Verdeca Pergola www.deponti.com page 13... - Page 14 4. Fasten and tighten the wall mounting bracket bolts 5. Gutter and front posts: The gutter and front posts should be connected to each other on ground Assembly Manual – Verdeca Pergola www.deponti.com page 14...
- Page 15 In this situation you may need some people since you must hold to posts as carefully. Slide the post on top of the stainless steel anchorage and screw tight. Assembly Manual – Verdeca Pergola www.deponti.com page 15...
- Page 16 NOTE: When fastening the rail bolts to the back beam and front beam you might need someone else according to rail weight and length. Deponti Deponti Deponti Check if the structure is level on all sides. Assembly Manual – Verdeca Pergola www.deponti.com page 16...
-
Page 17: Installation Motor Unit And Fabric
1. Install the motor box in the centre between two rafters. 2. All carriers must be on the back of the rails. 3. Place a hexagonal shaft spindle into the transmission tube. Assembly Manual – Verdeca Pergola www.deponti.com page 17... - Page 18 5. Insert a shaft transmitter plastic on to the transmission tube on the inside of the system. 6. Place a shaft spindle through the rail and insert the shaft transmitter plastic on the spindle to connect to the other spindle. Assembly Manual – Verdeca Pergola www.deponti.com page 18...
- Page 19 Getting the nuts on could therefore be a challenge. NOTE: We recommend using a lift or miltiple persons for installation as the fabric needs to go up as a whole without damage. Assembly Manual – Verdeca Pergola www.deponti.com page 19...
-
Page 20: Installation Of Cross Rafters And Ceiling Sheets
U brackets according to that sizing. 2. OPTIONAL: You can install the optional LED control box to the cross beam. Assembly Manual – Verdeca Pergola www.deponti.com page 20... - Page 21 L profile. 4. After installing the ceiling sheets, you can place the side cover profiles. 5. Wall finish: Before fixing the wall finish profile, apply sealant behind the wall finish profile. Assembly Manual – Verdeca Pergola www.deponti.com page 21...
-
Page 22: Programming Instructions
7. Programming instructions The installation and initial setup procedures are the responsibility of a specialized technician. When the Verdeca is installed, check the connection of the drive system with its control box - actuator and also actuator to the 40x20mm aluminium profile. -
Page 23: Remote Control
7.1 Remote control The Deponti Verdeca is integrated with a tubular motor driven with radio control. For opening, closing or stopping the panels you can use the respective buttons of the remote control. (see image below). Remote control details Channels:... -
Page 24: Programming The Motor
Step 5: Press and hold the PROG button on the back of Remote Control for more than 7 seconds until the motor jog briefly 2 times. This removes ALL memorized motor transmitters. Assembly Manual – Verdeca Pergola www.deponti.com page 24... -
Page 25: Programming The Led Control Panel
Step 5: Press and hold the PROG button on the back of the remote control for more than 7 seconds until the LED blinks and the light flashes twice. This resets ALL memorized LED transmitters. Assembly Manual – Verdeca Pergola www.deponti.com... -
Page 26: Faq
- Never use abrasives, aggressive solvents or a pressure washer. - Wet first and rinse off with lots of water, and then wipe with a soft cloth. 10. Disposal of waste Dispose of the product according to local laws and regulations. Assembly Manual – Verdeca Pergola www.deponti.com page 26... -
Page 27: Warranty Conditions
* The paint warranty is 2 years under ambient conditions at places that have moisture spray with salty and chemical steam (port, coastline, swimming pool, etc.). 12. Contact IMPORTANT: Your Deponti representative is your first point of contact for questions and comments. Assembly Manual – Verdeca Pergola www.deponti.com...
