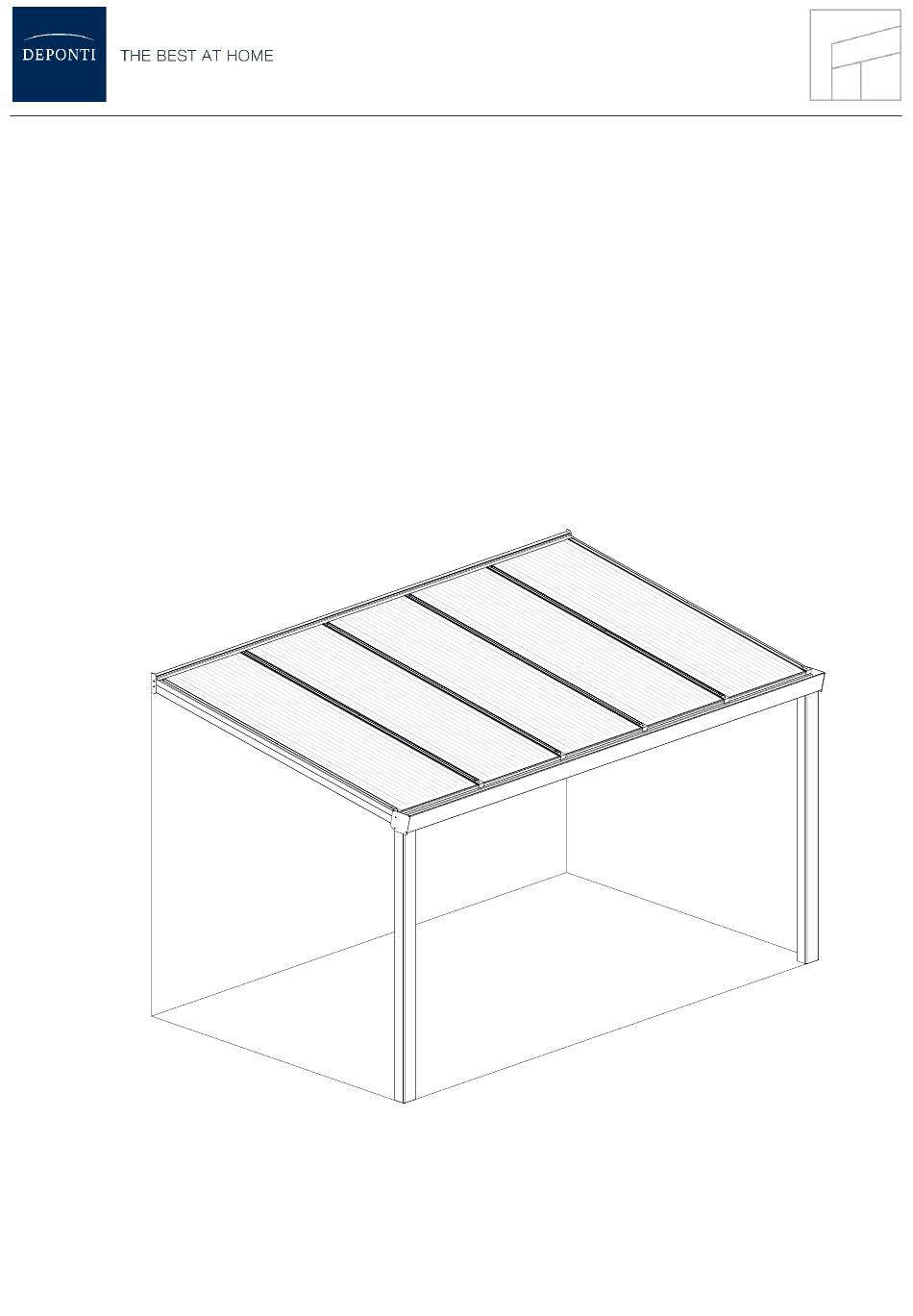

- Page 1 User manual / Assembly instructions Deponti Veranda Type Giallo Version: EN –February 2023 www.deponti.com...
-
Page 2: Table Of Contents
We also refer you to our General Terms and Conditions of Sale and Delivery which are available on request. Deponti B.V. accepts no liability for any damage or injury resulting from a failure to carefully follow the instructions in this manual or exercise due caution during transport, assembly, use and maintenance of the Veranda. -
Page 3: Introduction
Before you can start enjoying your Veranda it must be assembled properly. This manual provides clear instructions for all the steps you must complete for correct assembly of your Deponti Veranda. We recommend that you take the time to read the entire manual before you begin assembly. - Page 4 • Dispose the product in accordance with local laws and regulations. • When safety regulations and instructions are not followed correctly, Deponti B.V. will not accept any responsibility for damage(s) and injuries. Assembly Manual – Giallo Veranda www.deponti.com...
-
Page 5: Product Description
As standard, a straight decorative gutter is included and rectangular posts, consisting of two parts. The Deponti Giallo veranda is available as standard in widths of 4060, 5060, 6060 or 7060 as a single section; there is no limit to the number of sections that can be joined end to end. -
Page 6: Parts Overview
4.1 Exploded view 4.2 Delivery Inspection The veranda shown in this manual is a 5x3 metre Giallo, with two posts. This merely serves as an example. The type and number of components supplied depends on your order. Note: Always carefully check the delivered items against the accompanying delivery note to ensure that the quantity and quality are correct. -
Page 7: Parts List
20. Sheet stopper 10. End beam 18. End cover strip 1x sealing rubber 1x sealing rubber 11. Middle beam 19. Top cover strip 20. Sheet stopper 2x sealing rubber 2x sealing rubber Assembly Manual – Giallo Veranda www.deponti.com page 7... - Page 8 08A. 90° rainwater 04. Leaf catcher 1x set frame fixing 08. Rainwater discharge sleeve screws discharge sleeve (option) 1x hole saw 60 mm 1x coloured 1x sealant gun sealant 03. Gutter connector (Option) Assembly Manual – Giallo Veranda www.deponti.com page 8...
-
Page 9: Preparation For Assembly
Dimensions & slope • This Deponti roof should be installed with a slope of 15,7 cm per metre. The height of the wall profile and the passage height (distance from bottom of gutter to the ground) are completely dependent on each other and determined by this slope. - Page 10 Warranty is void if the Giallo veranda is not assembled and installed in accordance with the instructions.
-
Page 11: Inspection Of Tools And Accessories
5.2 Inspection of tools and accessories Ø3 Ø8 Ø60 Silicon spray Assembly Manual – Giallo Veranda www.deponti.com page 11... -
Page 12: Measuring & Determining Dimensions
5.3 Measuring & determining dimensions The Deponti veranda is available in a large range of sizes. Moreover, the roof has a modular design and can be quickly and easily made to size. However, please note that our current and future modular options are based on standard sizes. -
Page 13: Height Adjustments
5.3.1 Height adjustments A Deponti veranda is designed for a slope of 15,7 cm per metre. All the static strength calculations, as well as all sizes and dimensions in this manual, are based on this. The height of the wall profile and the passage height (distance from bottom of gutter to the ground) are completely dependent on each other and determined by this slope. -
Page 14: Number Of Posts
5.3.3 Number of posts The number of posts of a Deponti roof Type Giallo depends on the width and the projection of the roof. An overview is provided in the table below with polycarbonate roofing. Width (B) Projection Number of posts... - Page 15 In this case the gutter profile, wall profile and decorative profile are supplied in multiple lengths of 4060, 5060 or 6060 mm. The centre-to-centre distance of the beams, the number of sections and the glass width depend on the width of the Deponti veranda. The dimensions are shown in the table below.
-
Page 16: Joining Verandas
5.4 Joining verandas There is no limit to the width in which the Deponti verandas can be delivered. This is because the verandas can be joined end to end. In this case the gutter profile, wall profile and decorative profile are supplied in multiple lengths of 4060, 5060, 6060 or 7060 mm. - Page 17 Apply sealant onthe assembly so it is smooth and waterproof! Assembly Manual – Giallo Veranda www.deponti.com page 17...
-
Page 18: Assembly
Place the wall profile on the line and then mark the holes that you pre-drilled in your wall profile. 3. Now use a concrete drill bit with a diameter of 8 mm to drill the holes. Make sure the wall profile is level. Ø8 mm Assembly Manual – Giallo Veranda www.deponti.com page 18... - Page 19 6. Apply sealant the top edge of the wall profile (between the wall and the wall profile) to make a good seal. Strike off the sealant to make it smooth and waterproof. cleaner Assembly Manual – Giallo Veranda www.deponti.com page 19...
-
Page 20: Pre-Installing The Gutter
4. Place the leaf catcher in the hole in the gutter (with the cut side towards the side of the gutter profile with the open chambers). Apply sealant to form a waterproof seal around the leaf catcher. Assembly Manual – Giallo Veranda www.deponti.com... -
Page 21: Attaching The Decorative Profile To The Gutter
2. Secure the decorative profile with the supplied short 19 mm stainless steel screws. Begin approximately 5 cm from the end and place a screw approximately every 50 cm. The last screw should be placed approximately 5 cm from the end. 50 cm 5 cm Assembly Manual – Giallo Veranda www.deponti.com page 21... - Page 22 The gutter is fitted with a 20x100 mm steel strip to hold the glass. 1. Place the gutter flat and firm on a table or sawhorses. 2. Slide the steel strip into the gutter. Use a lubricant. Assembly Manual – Giallo Veranda www.deponti.com page 22...
-
Page 23: Installing Posts, Gutter And End Beams
NOTE: The U-profile is placed with the closed side against the wall. 2. Place the posts as accurately as possible on or in the ground. Place them plumb. Make sure that the posts are positioned perfectly square. Assembly Manual – Giallo Veranda www.deponti.com page 23... -
Page 24: Installing The Gutter
PVC pipe in one of the posts! 3. Place two screws through the gutter, down into the screw channels of the posts. This pulls the gutter tight against the posts. Assembly Manual – Giallo Veranda www.deponti.com page 24... - Page 25 Connect the rainwater discharge sleeve to the drain, and connect the rainwater discharge pipe to the sleeve. Make sure the connections are good. 2. Click the click-on strip onto the front of the U-profile. The post is now finished. Click ! Assembly Manual – Giallo Veranda www.deponti.com page 25...
-
Page 26: Installing The End Beams
2. Place the left and right end beams in both the gutter profile and the wall profile, one by one. Make sure that the outer edges of the end beams are flush with the ends of the gutter profile and wall profile. Assembly Manual – Giallo Veranda www.deponti.com page 26... - Page 27 Screw the end beams to both the gutter profile and wall profile from the top with one short screw per end. Make sure the roof is completely square. Secure the end beams with the second screw. Assembly Manual – Giallo Veranda www.deponti.com...
-
Page 28: Installing The Middle Beams
6.4 Installing the middle beams Note: if you install Deponti LED lighting, we recommend performing the installation before placing the middle beams. If you do not shorten the width of your veranda, you can use the trim elements for the gutter as spacers between the beams. - Page 29 4. Then place the remaining middle beams in the wall profile and gutter profile at the desired distance. 5. Screw the middle beams to both the gutter profile and wall profile with two short screws. 940 mm 940 mm 940 mm 940 mm Assembly Manual – Giallo Veranda www.deponti.com page 29...
-
Page 30: Preparing And Installing The Roofing Sheets
2. Place the long condensation profiles (980 mm) at the gutter end of the roofing sheets, where the perforated anti-dust tape is located. These condensation profiles have pre-drilled holes for drainage of the condensation water. 935 mm ! UV-side up 980 mm Assembly Manual – Giallo Veranda www.deponti.com page 30... - Page 31 Once the strip is positioned correctly, click the trim click strip into the end beam (use a rubber mallet). 6. Now screw the end cover strip to three points on the end beam with long stainless steel screws (1 top – 1 bottom – 1 middle). CLICK ! Assembly Manual – Giallo Veranda www.deponti.com page 31...
- Page 32 Once the strip is positioned correctly, click the trim click strip into the middle beam (use a rubber mallet). 10. Now screw the middle cover strip to three points on the middle beam with long stainless steel screws (1 top – 1 bottom – 1 middle). CLICK ! Assembly Manual – Giallo Veranda www.deponti.com page 32...
- Page 33 11. Repeat steps 1 to 4 on pages 31 & 32 for installation of the other cover strips. CLICK ! 12. Now screw a sheet stopper at the gutter end of each middle beam to ensure secure attachment. Note: securing the end cover strips comes later. Assembly Manual – Giallo Veranda www.deponti.com page 33...
-
Page 34: Finishing
1. Position the rubber strip in the wall profile properly so it covers the sheets and cover strips. 2. Carefully cut the rubber strip to size at both ends. Silicon spray 3. Screw the wall profile side cover onto wall profile with two short screws. Assembly Manual – Giallo Veranda www.deponti.com page 34... - Page 35 5. Carefully screw the decorative profile side cover to the gutter profile and the decorative profile with the short screws in the guides provided for this purpose. 6. Apply sealant on the inside of the gutter so it is waterproof. Assembly Manual – Giallo Veranda www.deponti.com page 35...
- Page 36 7. Now attach the sheet stoppers to the cover strips of the end beams with the short screws. 8. Remove the protective film from the roofing sheets and the aluminium parts. Assembly Manual – Giallo Veranda www.deponti.com page 36...
- Page 37 9. Secure your posts with the second short screw. 10. If there is a small gap between the top of the posts and the gutter you can seal it with sealant. 11. Congratulations! The roof is now finished! Assembly Manual – Giallo Veranda www.deponti.com page 37...
-
Page 38: Maintenance
Warranty in accordance with the warranty conditions and Deponti’s general terms and conditions. These can be found on the website www.deponti.com. 10. Contact IMPORTANT: Your Deponti partner is your first point of contact for questions and comments. Assembly Manual – Giallo Veranda www.deponti.com...
