SKLZ PRO MINI HOOP SYSTEM Instruction Manual page 6

ASSEMBLY INSTRUCTIONS
16
17
15
18
20
19
21
1
24
24
2
24
24
3
28
29
4
6
17
18
20
21
26
25
23
26
25
22
25
36
36
27
25
36
36
30

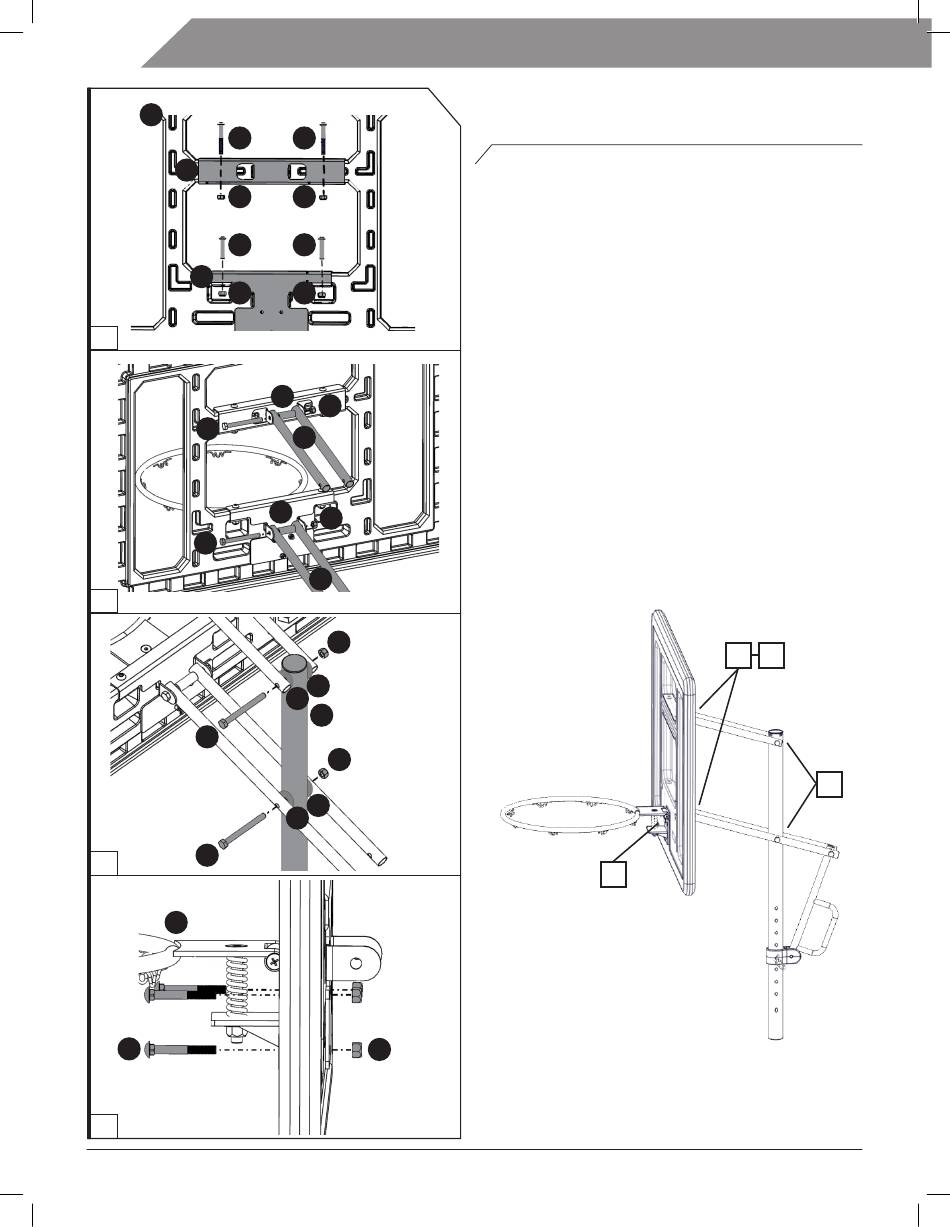

STEP 2
ASSEMBLE BACKBOARD
1 - Attach Upper Backboard Bracket (15) to
Backboard (16) using M8X60 SBHCS bolt (17)
and nut (18). Attach Lower Backboard Bracket
(19) to Backboard (16) using M8X40 bolt (20)
and nut (21).
2 - Attach Lower Backboard Support Poles (22)
and Upper Backboard Support Poles (23) using
M8X85 bolts (24), and nuts (25) with a long
spacer (26).
NOTE: When attaching Lower Backboard Support
Poles, align holes furthest from center holes.
3 - Attach Backboard assembly from above to Top
Pole (27) using M8X85 bolts (24), M8 plastic
washers (36) and M8X85 nuts (25).
4 - Attach Rim (28) to Backboard using M6X48 bolts
(29) and nuts (30).
4
Pro Mini Hoop System Assembly Guide
1 2
3
