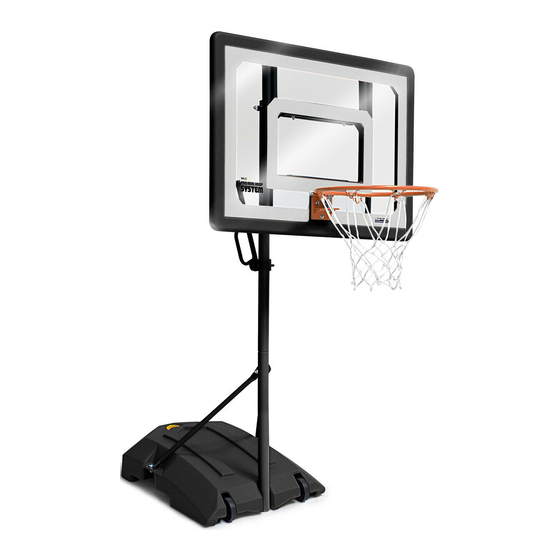

SKLZ PRO MINI HOOP SYSTEM Instruction Manual
SKLZ PRO MINI HOOP SYSTEM Instruction Manual

SKLZ PRO MINI HOOP SYSTEM Instruction Manual

Advertisement

Quick Links

INSTRUCTION MANUAL
IMPORTANT:
SAVE THIS INFORMATION IN THE EVENT
THAT THE MANUFACTURER NEEDS TO BE
CONTACTED FOR REPLACEMENT PARTS.
Thank you for choosing Pro Mini Hoop System. If there is
anything else we can do to help your user experience,
don't hesitate to send us an email (customerservice@sklz.com)
or give us a call (1-877-225-7275).
SAFETY INSTRUCTIONS:
Always inspect the product prior to and after each use. If you
find any flaw or defect, do not use the Pro Mini Hoop System
and contact Customer Service for a replacement by e-mail
(customerservice@sklz.com) or call (1-877-225-7275).
BEFORE YOU BEGIN:
To ensure safety, do not attempt to assemble this system without
following the instructions carefully. Check entire box and inside all
packing material for parts and/or additional instruction material.
Before beginning assembly, read the instructions and identify
parts using the hardware identifier and parts list in this document.
Proper and complete assembly, use, and supervision are essential
for proper operation and to reduce the risk of accident or injury. A
high probability of serious injury exists if this system is not installed,
maintained and operated properly.
» Check base regularly for leakage. Slow leaks could cause system to
tip over more easily.
» Climate, corrosion or misuse could result in system failure.
» This equipment is intended for home recreational use only and is
not intended for excessive competitive play.
» Read and understand all warning labels affixed to product and in
this instruction manual.
» The life of your basketball pole depends on many conditions. The
climate, placement of the pole, location of the pole, exposure to
corrosives such as pesticides, herbicides or salts are all important.
» If technical assistance is required, contact Customer Service.
» Adult supervision is recommended when adjusting the height.

Advertisement

loading

Summary of Contents for SKLZ PRO MINI HOOP SYSTEM

  • Page 1 SAFETY INSTRUCTIONS: Always inspect the product prior to and after each use. If you find any flaw or defect, do not use the Pro Mini Hoop System and contact Customer Service for a replacement by e-mail (customerservice@sklz.com) or call (1-877-225-7275).
  • Page 2 WARNINGS AND CAUTIONS...
  • Page 3: Adjusting The Height

    Height Adjustment Pin back in to lock into place. MOVING THE PRO MINI HOOP SYSTEM 1 - Lower the Rim to the lowest position. 2 - Hold the pole and tilt the unit back until the wheels contact the ground.
  • Page 4 37. M8X40 Bolt 12. M8X50 Bolt 25. M8X85 Nut (5) 38. M8X40 Nut 13. M8X50 Nut 26. Long Spacer (2) TOOLS YOU WILL NEED FOR ASSEMBLY 2 ADJUSTABLE WRENCHES 3/16 ALLEN WRENCH SAND AND/OR WATER Pro Mini Hoop System Assembly Guide...
  • Page 5 6 - With all the above components in place and fitted together correctly, use wrenches to fully tighten all bolts and nuts, securing the Base Pole (6) and Support Poles (7) and (8) to the Base (3). (Base viewed from side.) Pro Mini Hoop System Assembly Guide...
  • Page 6 3 - Attach Backboard assembly from above to Top Pole (27) using M8X85 bolts (24), M8 plastic washers (36) and M8X85 nuts (25). 4 - Attach Rim (28) to Backboard using M6X48 bolts (29) and nuts (30). Pro Mini Hoop System Assembly Guide...
  • Page 7 IF USING WATER IN SUB-FREEZING CLIMATES, ADD ½ GALLON OF NONTOXIC ANTIFREEZE TO 9½ GALLONS WATER. WHEN THERE IS NO WEIGHT IN THE BASE, DO NOT LEAVE UNATTENDED. THE UNIT COULD TIP OVER AND COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. Pro Mini Hoop System Assembly Guide...
  • Page 8: Warranty

    GET NEW PRODUCT INFORMATION AND SPECIAL DEALS FROM SKLZ. 1 YEAR LIMITED WARRANTY. This warranty does not cover damages resulting from accident, misuse, abuse or lost merchandise, and is only valid in the USA. Register your product at SKLZ.com to ensure warranty coverage, and get new product information and special deals from SKLZ.
