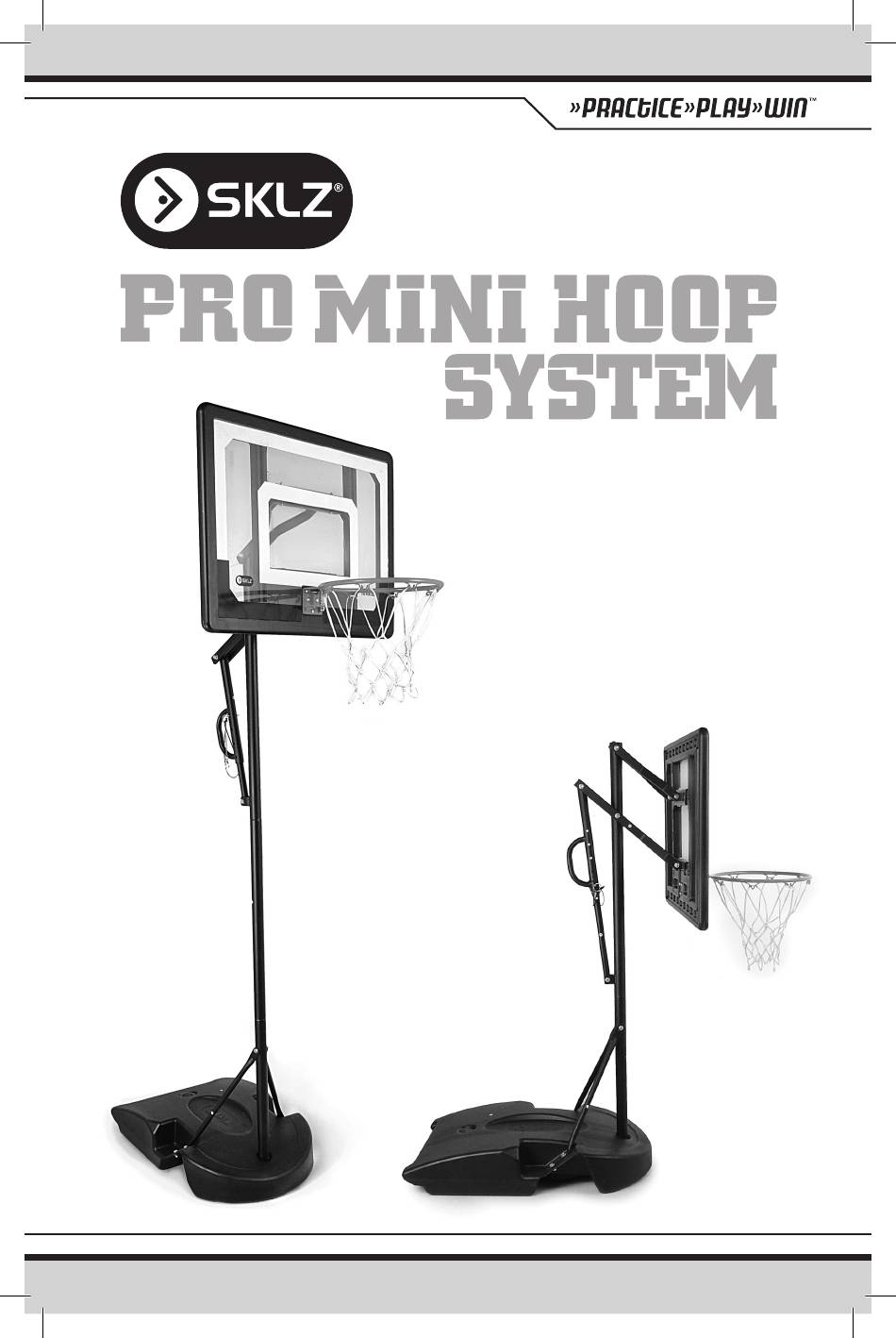

- Page 1 SET-UP INSTRUCTIONS » Standard » Junior & Poolside Configuration Configuration...
- Page 2 PARTS: 2 – Bottom Pole 3 – Middle Pole Front 5 – Base Arm (R) 6 – Base Arm (L) 1 – Base 4 – Top Pole 7 – Height Adjustment Pole Locking Pin Attached 8 – Height Adjustment Handle 9 –...
-
Page 3: Before You Begin
BEFORE YOU BEGIN: » Make sure you have all of the Pro Mini Hoop System components. Please contact SKLZ customer service toll free at 877-225-7275 x128 if you are missing anything. » Read all setup and usage instructions carefully. » You will need water or up to 130 lbs of sand to fill the base. - Page 4 ASSEMBLY STEP 1– BOTTOM POLE AND BASE ASSEMBLY Connector is facing the back of the base Attach the Bottom Pole (2) to the Base (1) by sliding the pole into the square hole at the front of the Base. Make sure that the Bottom Pole connector is facing the back of the Base.
- Page 5 Loosely tighten the nut with your fingers. (Will fully tighten in STEP 7). Connector is facing NOTE: Make sure that the pole connector is facing away from the backboard away from the backboard. SKLZ.com...
- Page 6 STEP 7– HEIGHT ADJUSTMENT POLE AND HANDLE ASSEMBLY Slide the Height Adjustment Handle (8) onto the Height Adjustment Pole (7) by aligning the two holes of the Height Adjustment Pole with the two bottom holes on the Height Adjustment Handle. Slide the Locking Pin connected to the handle through the two poles to connect them.
-
Page 7: Adjusting The Height
Middle Pole. Screw in the bolt and attach the locking pin to the Middle pole for safe keeping. Slide the Top Pole with Backboard onto the Bottom Pole and attach with the locking pin and bolt. Additional Mini Basketballs and replacement nets can be purchased at SKLZ.com or by calling toll free: 1-877-225-7275 x128. SKLZ.com... - Page 8 Only valid in the USA. All returns sent to PPS require a Return Merchandise Authorization number (RMA). For returns to PPS and for all other Customer Service inquiries, please call toll free: 1-877-225-7275 Register your product at SKLZ.com to ensure warranty coverage, get new product information and special deals from SKLZ...
