Ipad, 500 µm flip chip: package description and recommendations for use

Advertisement

Quick Links

Introduction
This document provides package and usage recommendation information for 500 µm pitch
Flip Chips. For information on 400 µm Flip Chips, see Application note AN2348.
The competitive market of portable equipment, notably the mobile phone market, is driven
by a challenging development of highly integrated products. To allow manufacturers of
portable equipment to reduce the dimension of their products, STMicroelectronics has
developed packages with reduced size, thickness and weight in the form of the Flip Chip.
The electrical performance of such components in Flip Chips is improved thanks to shorter
connections than the ones in standard plastic packages (such as TSSOP, SSOP or BGA).

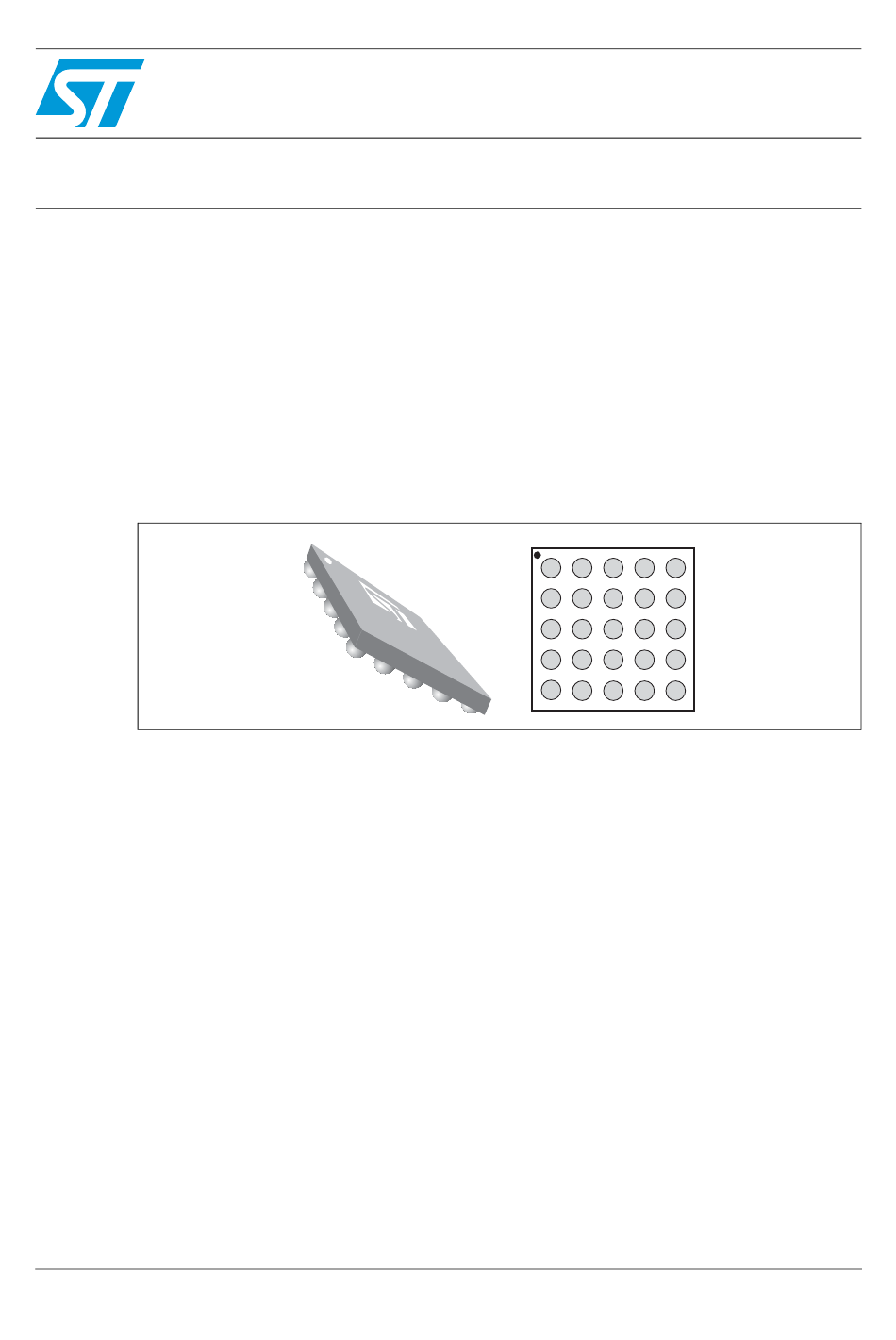

Figure 1.
The Flip-Chip package family has been designed to fulfill the same quality levels and the
same reliability performance as standard semiconductor plastic packages. This means
these new Flip-Chip packages should be considered as new surface mount devices which
will be assembled on a printed circuit board (PCB) without any special or additional process
steps required. In particular this package does not require any extra under fill to increase
reliability performances or to protect the device. This package is compatible with existing
pick and place equipment for board mounting. Only lead-free, RoHS compliant Flip Chips
are available in mass production.
This application note addresses the following topics:
Product description
Mechanical description
Packing specifications and labeling description
Recommended storage and shipping instructions
Soldering assembly recommendations
User responsibility and returns
Changes
Delivery quantity
Quality
October 2012
package description and recommendations for use
Typical Flip-Chip package
Doc ID 7272 Rev 8
Application note
IPAD™, 500 µm Flip Chip:
5
1
2
3
4
A
B
C
D
E
AN1235
1/14
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN1235 and is the answer not in the manual?

Questions and answers

Summary of Contents for ST AN1235

  • Page 1 AN1235 Application note IPAD™, 500 µm Flip Chip: package description and recommendations for use Introduction This document provides package and usage recommendation information for 500 µm pitch Flip Chips. For information on 400 µm Flip Chips, see Application note AN2348.
  • Page 2: Product Description

    Product description AN1235 Product description The Flip Chips are manufactured with a wafer level process, which STMicroelectronics has developed, by attaching solder bumps on I/O pads of the active wafer side, thus allowing bumped dice to be produced. The I/O contact layout can be either matrix shape or set on the periphery.
  • Page 3 = datecode (y = year ww = week) When very small die sizes leave insufficient space, the ST logo and ECOPACK symbol are omitted from the marking. Packing specifications and labeling description Flip Chips are delivered in tape and reel to be fully compatible with standard high volume SMD components.
  • Page 4 Packing specifications and labeling description AN1235 Figure 4. Tape dimensions for Flip Chips (650 µm thickness) Dot identifying bump A1 location A1 bump location may vary with product layout Ø 1.55 0.20 1.24 0.73 User direction of unreeling Typical dimensions in mm Table 1.
  • Page 5 AN1235 Packing specifications and labeling description Reels The sealed carrier tape with the Flip Chip is reeled on seven-inch reels (see Figure 5. reel mechanical dimensions). These reels are compliant with the EIA-481-C standard. In particular, they are made of an antistatic polystyrene material. Color of the reel may vary depending on supplier.
  • Page 6 Packing specifications and labeling description AN1235 Final packing Each reel is heat sealed under inert atmosphere in a transparent, recyclable and antistatic polyethylene bag (minimum of 4 mils material thickness). Reels are then packed in cardboard boxes. The complete description for packing is shown on Figure 7.
  • Page 7 AN1235 Packing specifications and labeling description Table 2. Parameter reel label Field Field type Assembled in Mandatory-Country of origin Pb-free 2 . Level interconnect As per JEDEC Standard JESD97 Mandatory for concerned products as defined in MPI Moisture Sensitivity Level as per JEDEC J-STD-020...
  • Page 8: Pcb Design Recommendations

    Recommended storage, shipping instructions and descriptions AN1235 Recommended storage, shipping instructions and descriptions Flip-Chip reels are packed under inert N atmosphere in a sealed bag. For shipment and handling, reels are packed in a cardboard box. STMicroelectronics thus recommends the following shipping and storage conditions: ●...
  • Page 9 330 x 330 µm maximum and a typical stencil thickness of 125 µm. Flip Chips are fully compatible with the use of near eutectic 95.8% Sn, 3.5% Ag, 0.7% Cu solder paste with no-clean flux. ST's recommendations for Flip-Chip board mounting are illustrated on the soldering reflow profile shown in Figure 9.
  • Page 10 Soldering assembly recommendations AN1235 Underfilling Underfilling is not essential for Flip Chips. These devices can do without an underfill if the process temperature does not exceed 175 °C and if the process time is short (typically 5 minutes). Manual rework...
  • Page 11 AN1235 Soldering assembly recommendations New device soldering For placement of the device several solutions are possible: ● Use a mini-stencil and solder paste then place the device. This is the preferred solution to ensure homogeneity of assembly conditions if assembly of WLCSP (wafer level chip scale package) is performed with solder paste, even if small footprints and tight dimensions make this operation difficult.
  • Page 12: Electrical Inspection

    Products in Flip Chip are 100% electrically probed according to the critical parameters of the ST product specification. The last operation before packing is 100% electrical testing. The other parameters are guaranteed by technology, design rules and by continuous monitoring systems.
  • Page 13: Revision History

    AN1235 Conclusion Conclusion Lead-free Flip-Chip packages have been developed by STMicroelectronics for electronic applications where integration and performance are the main concerns of designers. STMicroelectronics Flip Chips offer: ● Remarkable board space saving (package size equal to die size and total height less than 715 µm)
  • Page 14 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
