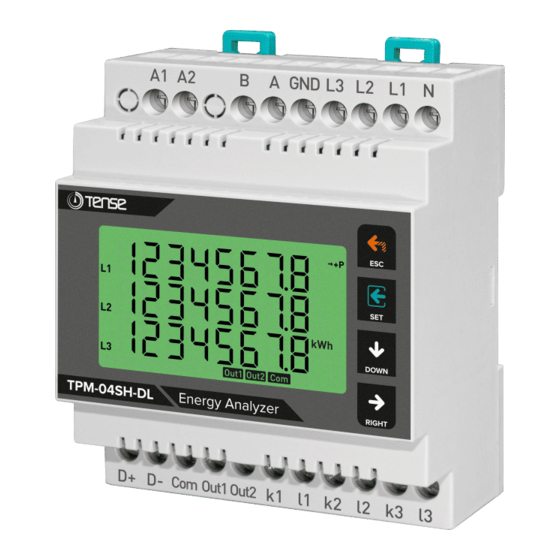

TPM-04SH-DL
USER MANUAL
Measures up to voltage harmonics 31st.
Measures up to current harmonics 31st.
Supports 3P4W connections.
RS485 Modbus RTU
53 x 31mm Custom Design Glass LCD
It shows the powers of each phas e (P1, P2, P3).
It shows the reactive powers of each phas e (Q1, Q2, Q3 inductive and capacitive).
It shows the apparent powers of each phas e (S1, S2, S3).
It shows power factors (PF) and cosφ values of each phases.
It shows the min., max. and ave. values of the phase-to-phase and phase-neutral voltages.
It shows the values of each phase (I1, I2, I3).
It shows total import and export active ( Σ kWh) energies..
It shows total inductive and capacitive reactive ( Σ kVArh) energies.
Digital Input.
Relay output (adjustable).
It shows voltage and current irregularity.
It show demands. (Current, Active/Reactive/Apparent Power)
You can delete energies and demands.
The menu is password protected.
Tense Electric - Electronic
MADE IN TURKEY

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPM-04SH-DL and is the answer not in the manual?

Questions and answers

Related Manuals for Tense TPM-04SH-DL

Summary of Contents for Tense TPM-04SH-DL

  • Page 1 It shows total inductive and capacitive reactive ( Σ kVArh) energies. Digital Input. Relay output (adjustable). It shows voltage and current irregularity. It show demands. (Current, Active/Reactive/Apparent Power) You can delete energies and demands. The menu is password protected. Tense Electric - Electronic MADE IN TURKEY...
  • Page 2 1 - Connection Diagrams: Figure-1 Out1 Out2 l1 k2 Load Figure-1: 3P4W connection type: 3 phase current and 3 phase voltage and neutral.
  • Page 3 5 - General: TPM-04SH-DL Energy analyzers measures load or voltage, current, cosφ, active power, reactive power, minimum and maximum values of the load and also measures demands. This analyzer measures current harmonics and voltage harmonics up to 31. harmonics.
  • Page 4 7- Introduction of Screen: THD-V THD-I Load-I kVAr kVArh Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Figure-2 1 - Indicates the unit of the value. 2 - Indicates which phase the value belongs to . 3 - Indicates displayed values. V-voltage, I-current, F-frequency, S-apparent power, P-active power, PF-power factor, FI-cosine phi, THD-I-total current harmonics, THD-V- total voltage harmonics, Q- reactive power.
  • Page 5 8- Introduction of Buttons: Press this button while in menu to exit the menu without saving the values. ESC: When this key is pressed while not in the menu, the screen always shows figure-3. This button enters menu/parameter. It records the changes of parameters and remove SET: from parameter.
  • Page 6 9 - Progress On Screen Information: THD-V THD-I Load-I THD-V THD-I Load-I THD-V THD-I Load-I THD-V THD-I Load-I kVAr kVAr kVAr kVAr kVArh kVArh kVArh kVArh Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Figure-3...
  • Page 7 THD-V THD-I Load-I THD-V THD-I Load-I kVAr kVAr kVArh kVArh Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Figure-15 Figure-16 Figure-15: Shows the reactive power value(Q) values for each phase. When you press the right button, figure-16 appears on the screen.
  • Page 8 THD-V THD-I Load-I THD-V THD-I Load-I THD-V THD-I Load-I kVAr kVAr kVAr kVArh kVArh kVArh Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Figure-24 Figure-25 Figure-26...
  • Page 9 10 - Fast Forwarding of Screen Information: THD-V THD-I Load-I THD-V THD-I Load-I THD-V THD-I Load-I THD-V THD-I Load-I kVAr kVAr kVAr kVAr kVArh kVArh kVArh kVArh Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Figure-11...

  • Page 10: Menu Structure

    11 - Menu Structure: THD-V THD-I Load-I THD-V THD-I Load-I kVAr kVAr kVArh kVArh Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Min Max Ave Dmd Din1 Din2 Out1 Out2 Com Alr Figure-33 Figure-32 THD-V THD-I Load-I THD-V THD-I Load-I THD-V...
  • Page 11 12 - Setting the Current Transformer Ratio: To change the current transformer ratio, press the set button while the figure-34 is on the screen. Figure-42 THD-V THD-I Load-I THD-V THD-I Load-I comes to the screen. Press right button to move between digits.
  • Page 12 16- Enter Password Value: In order to change password; press set button while Figure-38 is on the screen. The Figure-46 comes to the THD-V THD-I Load-I THD-V THD-I Load-I screen. In order to pass through steps; press the button on the right. In order to change the value of the step kVAr kVAr press the ''down'' button.
  • Page 13 Note1: The task assignment of relay 2 is assigned in the same way as relay 1. While in menu for relay 2 assignment. The enterance should be done from the figure-42. Note2: To use the digital input parameter, 9V-24DC energy should be applied from the enterance of input to the device.

  • Page 14: Technical Specifications

    23 - Contact Information: Muratpaşa Mah. Uluyol Cad. Energy and İşkent Sanayi Sitesi, E-Blok, 1.Kat Compensation BAYRAMPAŞA / İSTANBUL / TÜRKİYE Tracking System Tel: 0212 578 04 38 - 48 | Fax: 0212 578 04 36 www.tenseenerji.com www.tense.com.tr www.tense.com.tr info@tense.com.tr info@tense.com.tr -13-...
