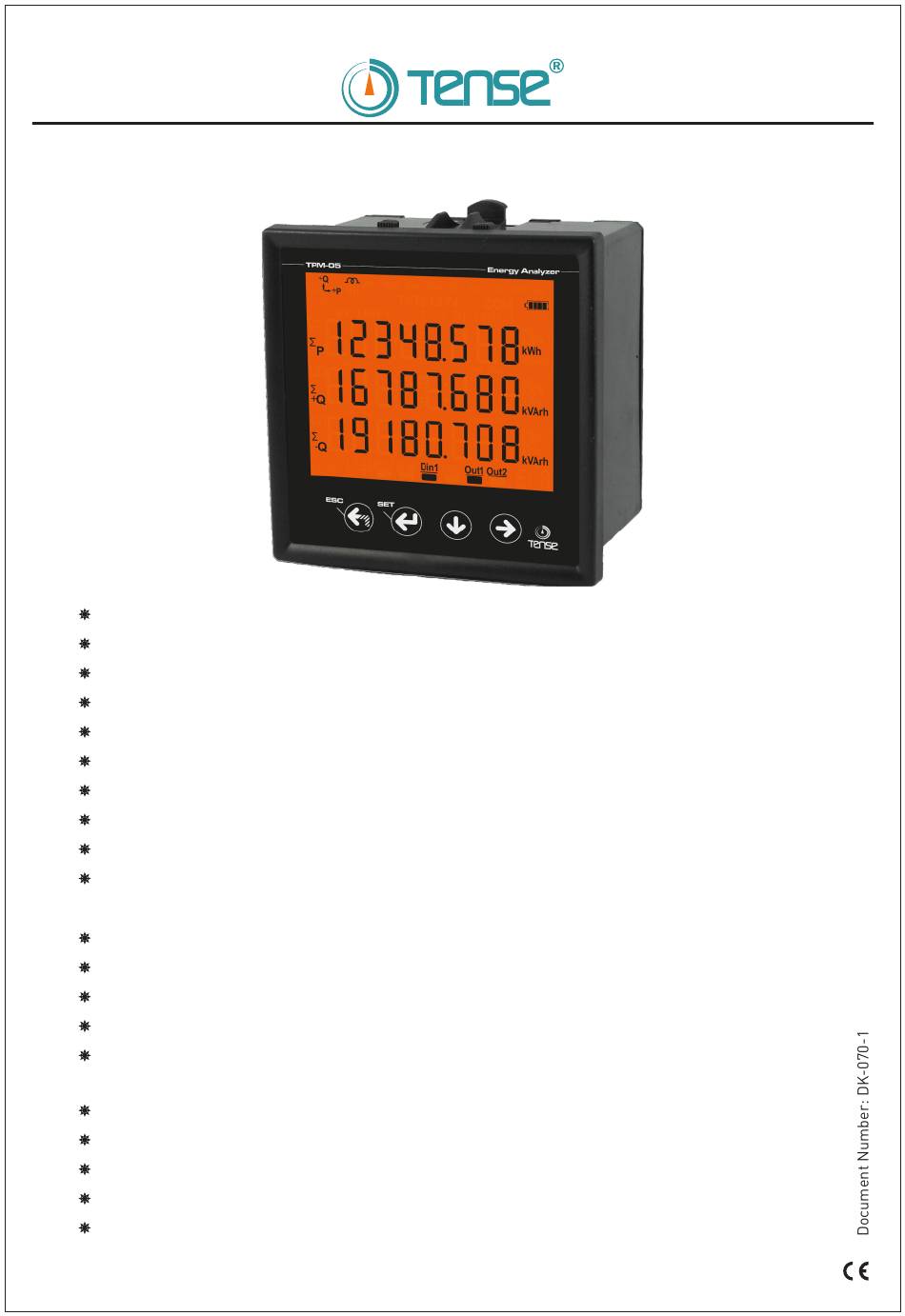

TPM-05
USER MANUAL
Measures up to voltage harmonics 55th (L-N and L-L).
Measures up to current harmonics 55th.
3P3W supports 3P4W connections.
RS485 Modbus RTU.

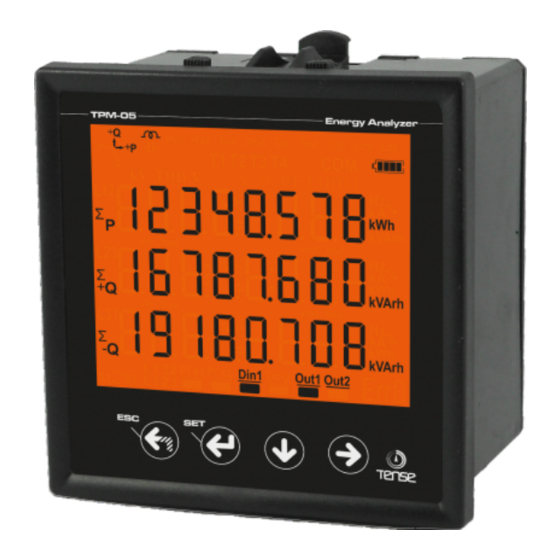

71.5 x 61.5 Custom Design Glass LCD.
It shows the powers of each phase and total active (P1, P2, P3, P Σ ).
It shows the powers of each phase and total reactive (Q1, Q2, Q3, Q Σ inductive or capacitive).
It shows the powers of each phase and total apparent (S1, S2, S3, S Σ ).
It shows power factors (PF) and cos Σ values of each phases.
It shows the minimum, maximum and average values of the phase-to-phase and
Phase-neutral voltages (V)
It shows the values of each phase and total current (I1, I2, I3, IΣ).
It shows total import and export active ( Σ kWh) energy.
It shows total inductive and capacitive reactive ( Σ kVArh) energy.
2 relay outputs (adjustable), 1 Digital Input
Event logs (high voltage, low voltage, power interruption, voltage irregularity, high current,
current irregularity, THDV and THDI limits).
The date and time can be set.
Real time clock.
It shows demands.
You can delete energies, demand, and event logs.
The menu is password protected.
Tense Electric Electronics
MADE IN TURKEY
